Product Overview

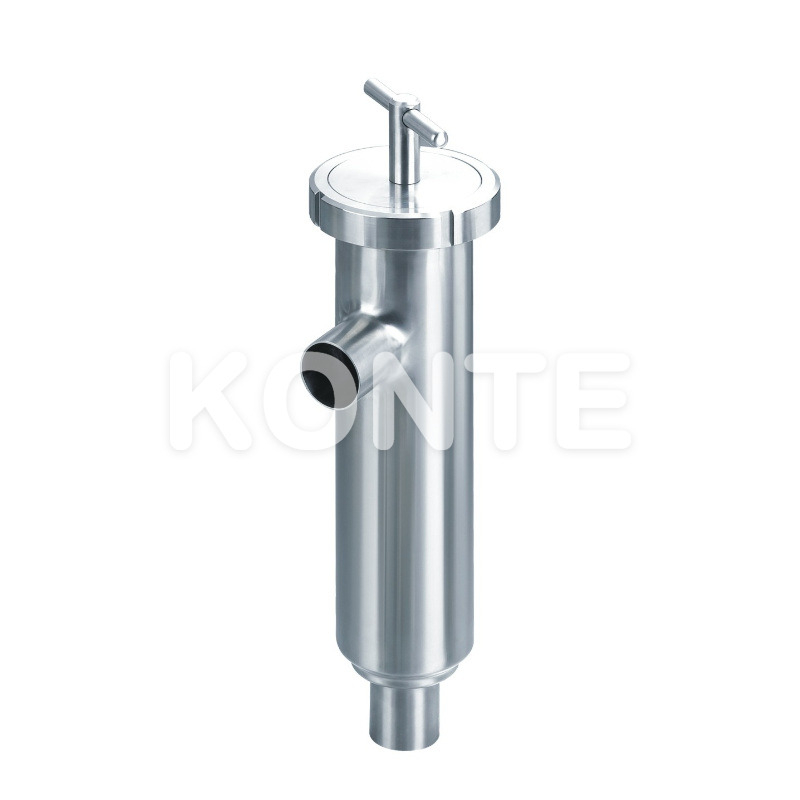

The Welded Angle Filter is designed for sanitary applications, commonly used in food, beverage, pharmaceutical, and chemical industries. Constructed from high-quality 304/316L stainless steel, this filter features a 90° welded angle for easy integration into pipelines. It effectively removes solid particles from liquids, protecting downstream equipment like pumps and valves. The filter offers reliable performance, easy cleaning, and compliance with strict hygiene standards. Available in various sizes, it ensures long-lasting durability and efficient filtration across multiple industries.
Materials
▶Filter housing: 304/316L
▶Metal mesh: 304/316L
▶Perforated plate: 304/316L
▶Gasket: EPDM
▶Polish: Ra≤0.8um
Operating principles
The filter consists of a filter body with an inlet and outlet.Filter mesh is installed inside the filter body, the mesh retain allparticles,which is equal or larger than mesh. When surrounding pressure of the filter exceeds demand, or when the filter element is damaged, you can remove it, then clean orchange a new filter element which is used after reinstallation.
Product Features
▶High-Quality Stainless Steel Construction: The Welded Angle Filter is made from premium 304/316L stainless steel, offering excellent corrosion resistance and durability. This robust construction ensures that the filter can withstand demanding applications in harsh environments, including the food, beverage, pharmaceutical, and chemical industries. Stainless steel also facilitates easy cleaning and sterilization, maintaining high hygiene standards and ensuring long-term, reliable performance.
▶Sanitary Design with 90° Welded Angle: The filter is designed with a 90° welded angle, providing a compact and space-efficient solution for pipeline installations. This design is ideal for installations in tight spaces, enabling smooth flow of liquids while minimizing the filter’s footprint. The welded connection creates a permanent, leak-proof seal, ensuring consistent filtration performance and avoiding any potential for leaks or failures that could disrupt operations.
▶Effective Filtration and Particle Retention: Equipped with a high-quality mesh screen, the filter effectively captures solid particles as small as 30 microns. The mesh ensures that only clean, particle-free liquids pass through to downstream equipment, preventing clogging and damage to pumps, valves, and other components. This filtration capability is critical in maintaining the integrity of the overall system and ensuring that the final product is free of contaminants, meeting strict quality control standards.
▶Compliance with Industry Standards: The Welded Angle Filter complies with various international standards, including DIN, SMS, 3A, and ISO. These certifications ensure that the filter meets global hygiene and performance requirements, making it suitable for use in industries where cleanliness and product purity are paramount. The filter is available in a range of sizes (1" to 4", DN25 to DN100) to suit different system configurations, providing versatile and customizable filtration solutions for a variety of applications.
Application
▶Food & Beverage Industry: Used for filtering liquids like milk, juice, beer, and soft drinks, ensuring product purity and preventing contamination.
▶Pharmaceuticals: Protects sensitive equipment from particle damage, ensuring the integrity and safety of pharmaceutical production.
▶Chemical Industry: Prevents solid particles from entering the production system, maintaining process efficiency and preventing costly damage to machinery.
▶Dairy Processing: Filters milk and other dairy products, ensuring hygiene compliance and maintaining high product quality throughout the processing stages.
