CAU110
KST&OEM&ODM Brand
| Availability: | |
|---|---|
| Quantity: | |
Product Features

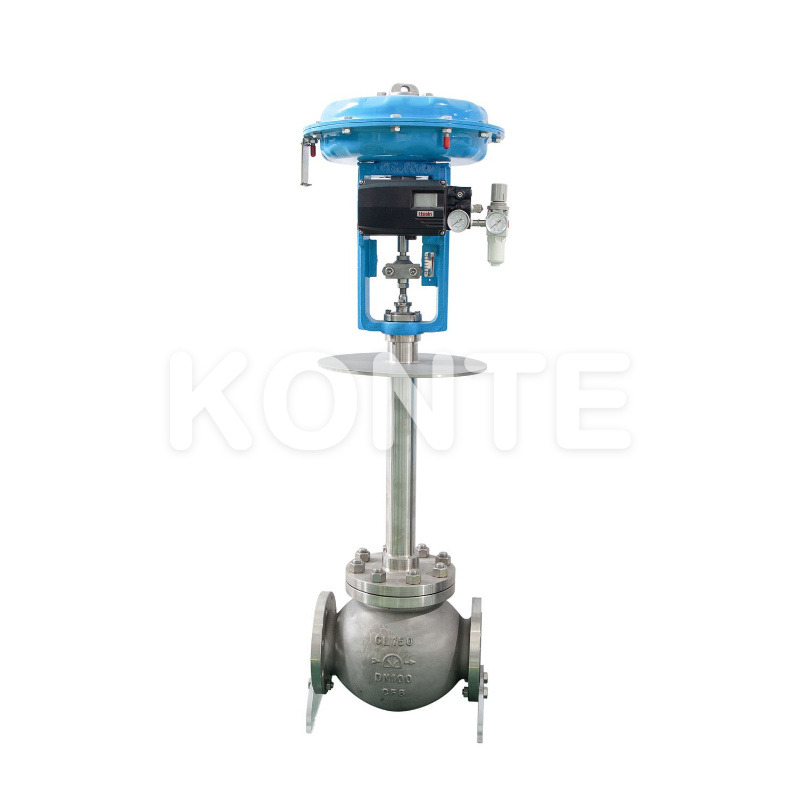

▶The pneumatic low -temperature adjustment valve is a regulatory valve used in low temperature and cold occasions. The long -necked valve is used to keep the insulation,and the leakage of the valveseat meets the ANSl standard.The regulating valve is equipped with a multi -spring thin film execution mechanism. The structureis compact and the outputforceis large. The valve bodyadoptsthe precision casting structure,the materialis stainless steel, which has good low temperature resistance.Tetrafluoro fillers seal ensure that the regulating, valve is not leaked at low temperature occasions,and effectively prevent frosting outside the valve.
Technical Parameters
| Item | Description |
| Nominal Diameter | DN15–DN300 |
| Nominal Pressure | PN16~PN100,CL150~CL600 |
| Flow Characteristics | Linear,fast-opening (optional) |
| Adjustable Ratio | 50:1、 |
| Valve Leakage | Metal sealing conformsto ANSIB16.104IV andV-level;soft sealing conforms to VI. |
| Optional Appendices | Mechanical locator, intelligent locator, security valve, amplifier, filter, solenoid valve, etc. |
| Optional Materials | CF8、CF3、CF8M、CF3M, etc. |
Application ind ustry
Used in petroleum, petrochemical, coal chemical, photovoltaic(polycrystalline silicon,monocrystalline silicon), metallurgy, fine chemicalsand otherindustries
