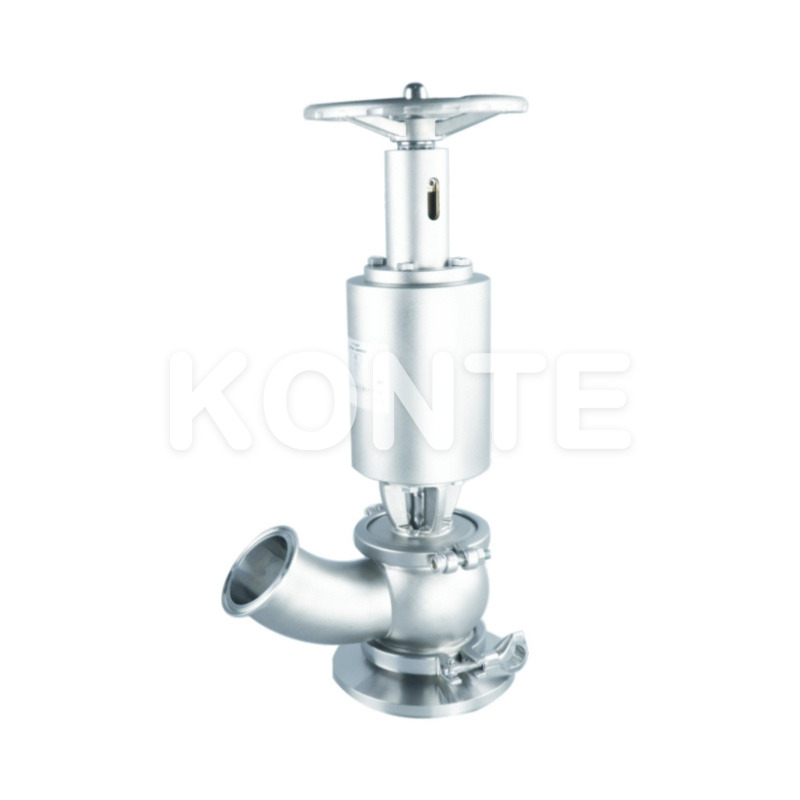

W Type Tank Bottom Valve – Features
▶The flange is integrally forged, and the elbow is precisely cast as one piece.
▶Double-seal design provides extended service life.
▶The outlet can be rotated 360° for flexible installation.
▶Seamless internal surface ensures easy cleaning and hygiene.
▶Tri-Clamp type connection allows for quick disassembly and maintenance.
▶Smooth internal flow path makes it ideal for viscous or sticky media.
▶Optional locking mechanism available for secure operation.
Technical Specifications
▶Size Range: 1" – 4"
▶Size Range: 1" – 4"
▶Valve Body Material: SS304 / SS316L
▶Sealing Material: EPDM, Silicone (SI), FKM
▶Working Pressure: ≤0.8 MPa
▶Connection Types: Welding, Tri-Clamp, Threaded, Flanged
▶Surface Finish:
Internal: Ra ≤ 0.4μm
External: Ra ≤ 0.6μm
▶Max Operating Temperature: 150°C
▶Air Supply Pressure: 0.4 – 0.6 MPa
▶Air Pipe Connection: R1/8"
▶Optional: C-Top intelligent controller with one or two proximity switches
| SIZE | d (mm) | D (mm) | K (mm) | L (mm) | H1 (mm) | D1 (mm) | D2 (mm) | A (mm) | H (mm) |
| 1" | 22.4 | 25.4 | 50.5 | 107 | 86 | 100 | 94 | 86 | 399 |
| 1.5" | 35.1 | 38.1 | 50.5 | 67 | 80 | 100 | 94 | 86 | 399 |
| 2" | 47.8 | 50.8 | 64 | 89 | 100 | 115 | 105 | 86 | 427 |
| 2.5" | 59.5 | 63.5 | 77.5 | 100 | 118 | 150 | 140 | 86 | 489 |
| 3" | 72.2 | 76.2 | 91 | 113 | 131 | 170 | 160 | 108 | 557 |
| 3.5" | 84.9 | 88.9 | 106 | 125 | 148 | 185 | 175 | 133 | 597 |
| 4" | 97.6 | 101.6 | 119 | 148 | 180 | 200 | 190 | 133 | 642 |
