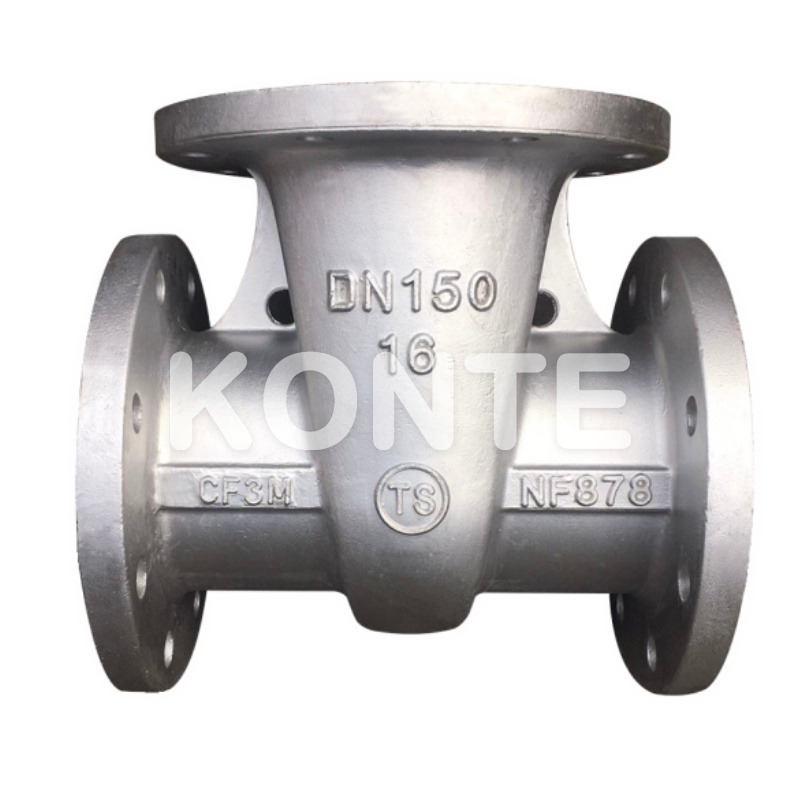

CF8/CF8M Stainless Steel Gate Valve Body

The CF8/CF8M stainless steel gate valve body stands as the resilient core of demanding fluid management systems, engineered specifically to resolve the chronic industry challenge of premature component degradation. When you run your hands along its precision-cast exterior, the flawless, smooth metallic finish immediately communicates a standard of uncompromising craftsmanship—completely free from the microscopic pitting, porosity, and sand holes that frequently plague inferior alternatives. The substantial weight of the casting provides a reassuring sense of density and structural integrity, ensuring the valve body can effortlessly absorb intense pressure spikes, mechanical vibrations, and severe thermal shocks without the slightest deformation.

Beyond its physical robustness, the internal geometry of this valve body is a masterclass in fluid dynamics. Meticulously machined pathways guarantee a seamless, low-friction flow that drastically minimizes turbulence, pressure drops, and operational noise. As the wedge seats perfectly into place, the precise, metallic engagement sound reflects the exacting tolerances achieved through advanced CNC machining. Whether your operations involve managing searing high-pressure steam, highly aggressive chemical acids, or high-purity pharmaceutical fluids, this valve body delivers a leak-tight, reliable foundation. By eliminating fugitive emissions and resisting galvanic corrosion, it drastically reduces maintenance downtime, lowers the total cost of ownership, and mitigates operational liabilities for complex engineering projects.

Product Specifications

Key Features & Highlights

Our CF8/CF8M stainless steel gate valve bodies are engineered to deliver uncompromising performance, providing plant operators and procurement engineers with absolute confidence in their fluid control systems. Every feature is designed to solve real-world operational challenges, ensuring long-term stability and maximizing operational efficiency.

• Unmatched Mechanical Strength: The high-density precision castings provide exceptional mechanical robustness, allowing the valves to effortlessly withstand severe pressure spikes and impact loads over extended periods, which is critical for heavy-duty applications.

• Precision and Consistency: Utilizing advanced precision molds ensures that every single casting maintains consistent dimensions. This enables remarkably tight assembly tolerances, resulting in seamless installation and eliminating the risk of operational failures caused by dimensional variations.

• Superior Corrosion Resistance: Forged from premium materials like CF8, CF8M, WCB, and alloy steels, these valve bodies offer formidable resistance to aggressive media. This extends the service life significantly, even in the most corrosive chemical, wastewater, and marine environments.

• Complex Design Flexibility: The sophisticated casting process allows for the creation of intricate internal and external geometries that are virtually impossible to achieve through standard machining. This versatility ensures the valve body can be tailored to highly specific operational demands.

• Optimized Cost-Efficiency: Designed with bulk manufacturing in mind, our casting methodology reduces secondary machining time and overall production costs. This ensures a highly cost-effective solution without ever compromising on the premium quality and performance of the final product.

Material & Corrosion Resistance

The longevity of any fluid control system hinges on the metallurgical integrity of its core components. We utilize strictly graded ASTM A351 CF8M, CF8, 304, and 316 stainless steel, alongside WCB and specialized alloy options, to construct a valve body that defies degradation. To further enhance surface resilience, our stainless steel variants undergo rigorous pickling and passivation treatments, creating an impenetrable oxide layer.

• Chemical Immunity: The high molybdenum content in our CF8M castings provides exceptional resistance to pitting and crevice corrosion, making it the ultimate defense against aggressive acids and chlorides.

• Extended Lifespan: By preventing galvanic corrosion and structural weakening, these valve bodies drastically reduce the frequency of costly replacements and system overhauls.

• Environmental Adaptability: Whether submerged in saline marine environments or exposed to the harsh atmospheric conditions of offshore platforms, the material integrity remains uncompromised.

• Hygienic Safety: The premium stainless steel composition ensures zero contamination of the media, fulfilling the strict sanitary requirements of the food processing and pharmaceutical sectors.

Manufacturing Process & Quality Control

Excellence in fluid control begins on the foundry floor. Our manufacturing process merges the art of precision mold casting with the exacting science of CNC lathe processing. This dual approach guarantees that every valve body features a visually pristine, smooth surface—completely devoid of sand holes, shrinking cavities, or micro-cracks that could compromise system pressure. Before any unit is approved for deployment, it is subjected to a relentless battery of quality assurance protocols.

• CNC Machined Precision: Internal seating surfaces and flange faces are machined using state-of-the-art CNC equipment, ensuring micron-level accuracy for perfect mating and sealing.

• 100% Pressure Testing: Every individual valve body undergoes rigorous hydrostatic shell and seal pressure testing to guarantee zero-leakage performance under maximum rated loads.

• Defect-Free Casting: Advanced gating and risering techniques in our foundry eliminate internal porosity, ensuring the structural density required for high-pressure applications.

• Traceability: Each heat number and material composition is strictly documented, providing complete metallurgical traceability for compliance and safety audits.

Specifications & Adaptability

Modern industrial pipelines demand highly versatile components that can integrate seamlessly into diverse architectural layouts. Our CF8/CF8M gate valve bodies are engineered with maximum adaptability in mind, offering a comprehensive spectrum of sizes, pressure ratings, and connection profiles to meet the exact specifications of any complex engineering project.

• Expansive Size Range: Available from a compact 1/2"" all the way up to a massive 48"" diameter, ensuring we can supply both auxiliary lines and main arterial pipelines.

• Broad Pressure Capabilities: Engineered to perform flawlessly across a wide pressure spectrum, encompassing Class 150LB to 900LB, as well as PN10-PN64 and 10K-20K ratings.

• Universal Connectivity: We offer multiple connection forms including standard Flange, Threaded (NPT/BSPT/BSPP), Socket Welding, and Butt Weld configurations for seamless system integration.

• Actuation Readiness: The valve bodies are designed with standardized top flanges to effortlessly accommodate manual handwheels, bevel gears, or fully automated pneumatic and electric actuators.

Sealing Performance & Structural Design

Fugitive emissions and internal leaks are the primary causes of efficiency loss and safety hazards in fluid management. To combat this, our valve bodies feature an advanced structural design focused entirely on absolute sealing integrity. The straight-through flow path design ensures that when the valve is fully open, fluid resistance is virtually non-existent, maximizing flow capacity and minimizing energy consumption.

• Optimized Wedge Gate: The meticulously machined wedge gate provides a tight, metal-to-metal or soft seal that dynamically adjusts to pressure changes, preventing media bypass.

• Inverted Seal Technology: The contact area between the bonnet and the valve stem incorporates a precision inverted seal (backseat), effectively isolating the packing from line pressure and preventing stem leakage.

• Stem Configurations: Available in both Rising Stem (OS&Y) for immediate visual confirmation of the valve position, and Non-rising Stem designs for installations where vertical space is severely restricted.

• Low Torque Operation: The precisely aligned internal guides prevent the wedge from binding or galling, ensuring smooth, low-torque operation even after prolonged periods of inactivity.

Industry Standards & Certifications

In the realm of global industrial procurement, compliance is non-negotiable. Our CF8/CF8M stainless steel gate valve bodies are designed, manufactured, and rigorously tested to align perfectly with the most demanding international engineering standards. This unwavering commitment to compliance ensures that our products pass the strictest safety and quality audits required by multinational energy and chemical corporations.

• Global Design Standards: Fully compliant with ASME B16.34, API 600, API 602, ANSI, DIN, JIS, and GB specifications, ensuring universal compatibility.

• Certified Quality: Our manufacturing facilities and products hold critical industry certifications, including API, ISO 9001, and CE marks, validating our exceptional quality management systems.

• Standardized Dimensions: Face-to-face and end-to-end dimensions strictly adhere to international norms, allowing for hassle-free drop-in replacements during plant maintenance and retrofits.

• Material Verification: All materials conform to ASTM specifications, with comprehensive Material Test Reports (MTRs) available to verify chemical composition and mechanical properties.

Application Versatility

The exceptional thermal stability, pressure resilience, and anti-corrosive nature of the CF8/CF8M valve body make it a universally trusted component across a multitude of critical industrial sectors. By standardizing on this high-performance valve body, procurement teams can consolidate their inventory while addressing the varied demands of different processing environments.

• Chemical Processing Plants: Safely controls the flow of highly toxic, volatile, and corrosive fluids without risking environmental contamination or equipment degradation.

• Power Generation: Delivers unwavering performance in the high-temperature, high-pressure steam lines of thermal and nuclear power plants, ensuring critical boiler control safety.

• Marine & Offshore Engineering: The superior chloride resistance of CF8M makes it the ideal choice for seawater desalination, ballast water treatment, and offshore oil rig fluid management.

• Food & Pharmaceutical Industries: The smooth, non-reactive stainless steel surfaces ensure high-purity fluid control, fully complying with the stringent sanitary standards required for human consumption products.

Mass Production & Customization Services

We understand that large-scale industrial projects require not just premium quality, but also reliable supply chain logistics and tailored engineering solutions. Our advanced precision casting foundry is optimized for high-volume production, allowing us to significantly reduce lead times and economies of scale without ever compromising the meticulous quality of a single valve body.

• Rapid Scalability: Our high-capacity manufacturing infrastructure ensures we can fulfill massive volume requirements swiftly, keeping your critical project timelines on track.

• Deep OEM/ODM Customization: We offer comprehensive customization services, including casting your proprietary corporate logos, specific heat markings, and tailored port dimensions directly into the valve body.

• Ready-to-Ship Inventory: For standard specifications, we maintain a robust inventory of finished and semi-finished castings to support accelerated delivery schedules for urgent maintenance needs.

• Comprehensive Post-Sales Support: Every valve body is backed by a robust 12 to 18-month warranty, complemented by our dedicated technical support team ready to assist with installation and operational guidance.

Why Choose Us

Selecting the right manufacturing partner is just as critical as selecting the right component. We bring decades of metallurgical expertise and fluid control engineering to the table, positioning ourselves as a trusted extension of your supply chain. We don't just supply parts; we deliver engineered reliability that protects your infrastructure investments.

• Uncompromising Quality Control: From raw material spectral analysis to final hydrostatic testing, our multi-stage QA process ensures zero-defect delivery.

• Engineering Expertise: Our team of veteran engineers continuously refines our casting and machining processes, ensuring our valve bodies represent the pinnacle of modern manufacturing technology.

• Cost-Effective Excellence: By controlling the entire production process in-house—from foundry to final machining—we eliminate intermediary markups, offering premium components at highly competitive project rates.

• Global Logistics Capability: We possess extensive experience in international export packaging and logistics, ensuring your heavy-duty valve bodies arrive at your facility in pristine condition, precisely when needed.

Frequently Asked Questions (FAQ)

Q1: What makes the CF8M material superior to standard stainless steel in highly corrosive applications?

CF8M is the cast equivalent of 316 stainless steel and contains a significant addition of molybdenum (typically 2-3%). This specific alloying element dramatically enhances the metal's resistance to pitting and crevice corrosion, particularly in chloride-rich environments like seawater or acidic chemical processing, offering a much longer operational lifespan than standard CF8 (304) stainless steel.

Q2: How do you ensure dimensional accuracy across large production runs of these valve bodies?

We utilize advanced precision investment casting (lost-wax process) combined with state-of-the-art CNC machining centers. The precision molds ensure the initial casting is incredibly close to final dimensions, while the automated CNC lathes handle the critical seating and flange faces. This guarantees that whether you order ten units or ten thousand, the dimensional tolerance remains flawlessly consistent.

Q3: Can these gate valve bodies be easily adapted for automated actuation systems?

Absolutely. Our valve bodies are engineered with standardized mounting pads and yoke designs that seamlessly accommodate a wide variety of actuation methods. Whether your system requires manual bevel gears for large diameters, or ISO-standard top flanges for integrating sophisticated pneumatic or electric actuators, our design facilitates rapid and secure automation upgrades.

Q4: What specific testing protocols are implemented before the valve bodies are approved for shipment?

Quality assurance is paramount. Every single valve body undergoes rigorous testing in accordance with API 598 and ASME B16.34 standards. This includes high-pressure hydrostatic shell testing to verify the structural integrity of the casting, as well as high and low-pressure closure tests to guarantee absolute zero-leakage performance of the seating surfaces.

Q5: Do you offer customized face-to-face dimensions for retrofitting existing, non-standard pipeline infrastructure?

Yes, our robust OEM/ODM capabilities allow us to accommodate specialized engineering requirements. If your facility requires valve bodies with non-standard face-to-face dimensions to replace obsolete equipment without altering the existing pipework, our engineering team can design and cast custom molds to match your exact spatial constraints.

"
