Product Overview

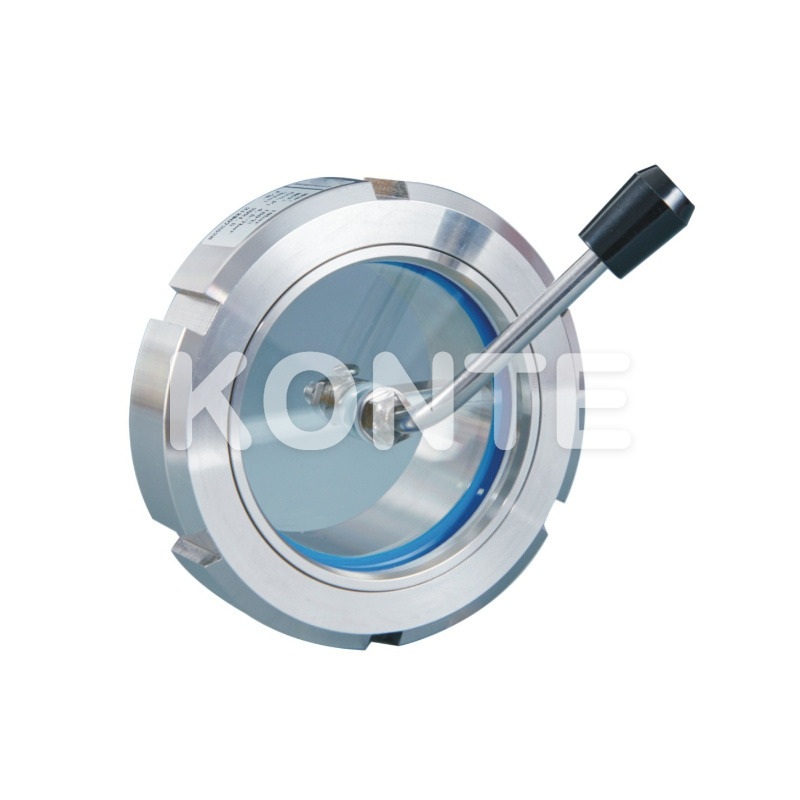

The Union Type Sight Glass with Wiper is designed for clear observation of fluid flow in sanitary environments. Made with stainless steel and tempered glass, it ensures high durability and corrosion resistance. The integrated wiper system prevents fogging, condensation, and build-up, maintaining a continuous, unobstructed view. This product is ideal for use in the food, pharmaceutical, and chemical industries, providing a reliable solution for monitoring critical processes while ensuring hygiene and safety in production systems.
Technical Data
Working temperature:-20~135℃ (when the sealing is EPDM.)
| Size (Ø) | D (mm) | Do (mm) | Dn (mm) | L (mm) |
| 25 | 51 | 25.4 | 22.4 | 30 |
| 38 | 74 | 38.1 | 35.1 | 33 |
| 51 | 84 | 50.8 | 47.8 | 36 |
| 63 | 100 | 63.5 | 59.5 | 39 |
| 76 | 114 | 76.2 | 72.2 | 39 |
| 102 | 138 | 101.6 | 97.6 | 43 |
| 152 | 210 | 152.4 | 146.8 | 55 |
Materials
▶Product wetted steel parts:304/316L
▶Other steel parts: 304
▶The material of glass: silicon boride glass or,tempered glass sealing silicon boride glass or,tempered glass
▶Sealing elements: EPDM(standard) NBR,PTFE(optional)
Product Features
▶Integrated Wiper System: The Union Type Sight Glass features a built-in wiper system that ensures clear visibility by removing fog, condensation, and buildup on the glass. This self-cleaning feature is especially important in environments where the fluid can obstruct the view, ensuring continuous, unobstructed observation and reducing the need for manual cleaning.
▶Corrosion-Resistant Construction: Crafted from high-quality stainless steel (SS304 or SS316L) and tempered glass, this sight glass is highly resistant to corrosion. It is suitable for use in harsh industrial environments, ensuring long-term durability even when exposed to aggressive chemicals or extreme temperatures.
▶Hygienic Design: This sight glass is designed with hygiene in mind, meeting the stringent standards of the food and pharmaceutical industries. It is easy to clean and maintain, preventing contamination of processed materials. The smooth surface of the stainless steel frame and tempered glass ensures a sterile environment for fluid monitoring.
▶Wide Temperature and Pressure Range: The Union Type Sight Glass can withstand temperatures from -20°C to 135°C and handle pressures up to 10 bar. This versatility makes it suitable for various industrial applications, ensuring safe and reliable operation even in high-pressure environments.
▶Versatile Applications: Ideal for use in food & beverage, pharmaceutical, chemical, and water treatment industries, this sight glass provides real-time visibility of liquids in critical processes. It ensures safe, efficient, and controlled production processes, whether monitoring fermentation tanks, pharmaceutical lines, or chemical systems.
Application
▶Food & Beverage Industry: Ideal for monitoring liquid flows in fermentation tanks, mixers, and pipelines, ensuring sanitary conditions and process visibility.
▶Pharmaceutical Industry: Used to observe sterile liquid flows in production lines, maintaining hygiene standards and ensuring product integrity.
▶Chemical Industry: Perfect for monitoring corrosive or viscous fluids in reactors, pipes, and filtration systems, providing clear visibility of flow.
▶Water Treatment: Ensures continuous monitoring of filtration and treatment systems, allowing operators to observe clean water flow and maintain system performance.
Product Overview
The Union Type Sight Glass with Wiper is designed for clear observation of fluid flow in sanitary environments. Made with stainless steel and tempered glass, it ensures high durability and corrosion resistance. The integrated wiper system prevents fogging, condensation, and build-up, maintaining a continuous, unobstructed view. This product is ideal for use in the food, pharmaceutical, and chemical industries, providing a reliable solution for monitoring critical processes while ensuring hygiene and safety in production systems.
Technical Data
Working temperature:-20~135℃ (when the sealing is EPDM.)
| Size (Ø) | D (mm) | Do (mm) | Dn (mm) | L (mm) |
| 25 | 51 | 25.4 | 22.4 | 30 |
| 38 | 74 | 38.1 | 35.1 | 33 |
| 51 | 84 | 50.8 | 47.8 | 36 |
| 63 | 100 | 63.5 | 59.5 | 39 |
| 76 | 114 | 76.2 | 72.2 | 39 |
| 102 | 138 | 101.6 | 97.6 | 43 |
| 152 | 210 | 152.4 | 146.8 | 55 |
Materials
▶Product wetted steel parts:304/316L
▶Other steel parts: 304
▶The material of glass: silicon boride glass or,tempered glass sealing silicon boride glass or,tempered glass
▶Sealing elements: EPDM(standard) NBR,PTFE(optional)
Product Features
▶Integrated Wiper System: The Union Type Sight Glass features a built-in wiper system that ensures clear visibility by removing fog, condensation, and buildup on the glass. This self-cleaning feature is especially important in environments where the fluid can obstruct the view, ensuring continuous, unobstructed observation and reducing the need for manual cleaning.
▶Corrosion-Resistant Construction: Crafted from high-quality stainless steel (SS304 or SS316L) and tempered glass, this sight glass is highly resistant to corrosion. It is suitable for use in harsh industrial environments, ensuring long-term durability even when exposed to aggressive chemicals or extreme temperatures.
▶Hygienic Design: This sight glass is designed with hygiene in mind, meeting the stringent standards of the food and pharmaceutical industries. It is easy to clean and maintain, preventing contamination of processed materials. The smooth surface of the stainless steel frame and tempered glass ensures a sterile environment for fluid monitoring.
▶Wide Temperature and Pressure Range: The Union Type Sight Glass can withstand temperatures from -20°C to 135°C and handle pressures up to 10 bar. This versatility makes it suitable for various industrial applications, ensuring safe and reliable operation even in high-pressure environments.
▶Versatile Applications: Ideal for use in food & beverage, pharmaceutical, chemical, and water treatment industries, this sight glass provides real-time visibility of liquids in critical processes. It ensures safe, efficient, and controlled production processes, whether monitoring fermentation tanks, pharmaceutical lines, or chemical systems.
Application
▶Food & Beverage Industry: Ideal for monitoring liquid flows in fermentation tanks, mixers, and pipelines, ensuring sanitary conditions and process visibility.
▶Pharmaceutical Industry: Used to observe sterile liquid flows in production lines, maintaining hygiene standards and ensuring product integrity.
▶Chemical Industry: Perfect for monitoring corrosive or viscous fluids in reactors, pipes, and filtration systems, providing clear visibility of flow.
▶Water Treatment: Ensures continuous monitoring of filtration and treatment systems, allowing operators to observe clean water flow and maintain system performance.
