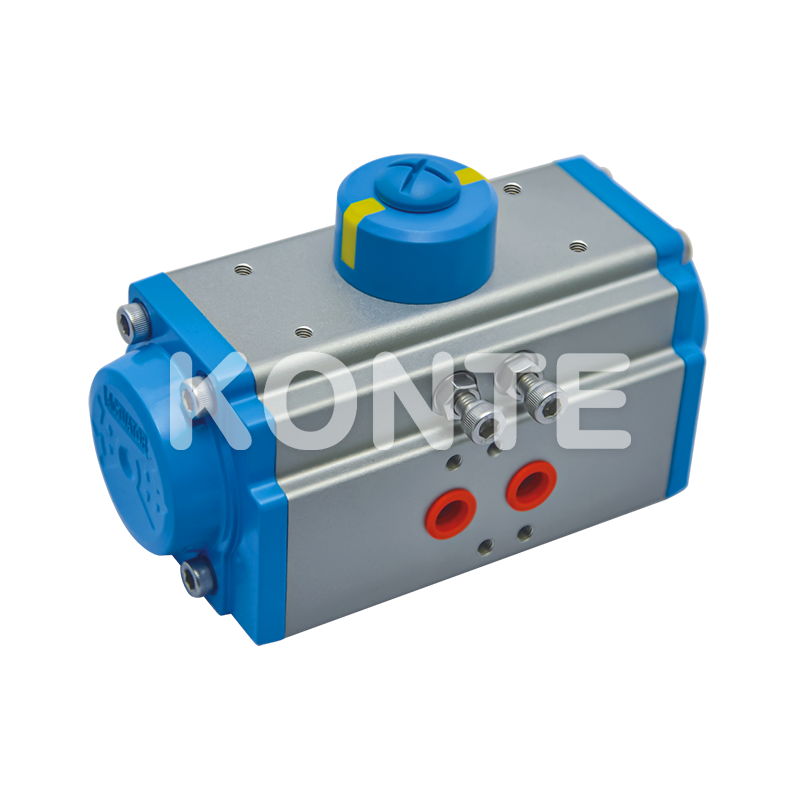

Features
▶ALODUR is oxidized hard aluminum shell.
▶Double piston gear shift design,simply reverse thepiston to change the direction of the executionagency's rotation
▶The integrated design,dual effectsandsingle effectshave the samecylinder and end cover,which isconvenient to changetherole by installingspringor removing spring.
▶Setuptwoindependentadjustmentscrewsaccuratelyregulating valve openingandvalvecontrollocation onthe outer side
▶Thehigh-quality aluminum alloy cylinderbody issqueezed,and theinnerhole and external surfaceof theprecision processingareperformed forhardanodeoxidationtreatment(underspecialcircumstances,the anode oxidation+specialfluoron coating),thelonger life life and thelowfriction coefficient.
▶Small molds Large torque.
Standard Specification
Cylinder Diameter Rang | AT40 – AT400 |
Qutput Torque Double Actio | 8~8000Nm |
Qutput Torque Single Actio | 5~ 4200Nm |
Air Supply | 2.5bar-8bar |
Switch Angle | 90±5° |
| OperatingTemperature | -50-120*C6. |
Flanged Connectio | F03-F25 |
Perspective
①d and smooth movement, high precision, high output power by a simple change in the direction of the piston assembly positions available anti-rotation.
②high quality extruded aluminum alloy cylinder block, by precision machining the hole and the external surface of hard anodized (anodic oxidation under special circumstances +Teflon coating), longer life, low friction coefficient.
③integrated design, all the double acting and singlefunction actuator models have the same cylinder and end caps, easily removed by installing a spring or spring to change the mode of action
④combined pre-spring break Hean whole group, whether in the assembly process or use on-site in both convenient and safe to install or change
⑤the external side of the two single independent adjustment screw has been number of springs. installed in the valve for the actuator is precisely to facilitate, control valve open and
valve closed position, For the whole trip conditioned office is also configured in two cover a longer adjustment screws.
⑥multi-position indicator, on-site visual instructions, consistent with VDI/VDE3845, NAMUR standard slot, the output can be installed and all the accessories, such as limit switch box, electric positioner, position sensor (Pepperl and Fuchs, Turck).
⑦gas source interface line NAMURstandard, direct safety plaquesNAMUR standard solenoid valve.
⑧rack on the back of the composite bearing and piston guide ring and the output shaft bearings to prevent metal on metal friction and increasing lubrication, so a low friction,
long life.
⑨All fasteners are stainless steel, long-term corrosion resistance.
⑩connection part of the line with new international standardISO5211,DIN3337 (F03-F25)makes products with interchangeable, versatile.
Exploded view
| Description | Material | ty | Description | Material | ty | ||
| 1 | Cap Screw | Stainless Steel | 8 | 14 | Bearing (output shaft at the top) | Stainless Steel | 1 |
| 2 | Gasket | Stainless steel | 8 | 15 | Adjust Screw | Stainless Steel | 2 |
| 3 | End cap | Cast Aluminum | 2 | 16 | Washer Adjust Screw | Stainless Steel | 2 |
| 4 | O-ring (cover) | NBR | 2 | 17 | O-ring Adjust Screw | NBR | 1 |
| 5 | Spring Group | Spring Steel | 0-10 | 18 | 0-ring Pinoin Top | NBR | 1 |
| 6 | Bearing (Piston） | Engineering Plastic | 2 | 19 | Inner Washer | Engineering Plastic | 1 |
| 7 | O-ring Piston | NBR | 2 | 20 | Inner Washer | Stainless Steel | 1 |
| 8 | Piston | Die Cast Aluminum Alloy | 2 | 21 | Travel Stop | AlloySteel | 1 |
| 9 | Indicator Screw | ABS/Stainless Steel | 1 | 22 | Pinion | AlloySteel (Electroless Nickel Plated)/SS304 is Optional | 1 |
| 10 | Position indicator | ABS/Stainless Steel | 1 | 23 | Bearing | Engineering Plastic | 1 |
| 11 | Flexible file ring | Spring stee | 1 | 24 | Bearing Pinoin bottom | NBR | 1 |
| 12 | Metal washer | Engineering Plastic | 1 | 25 | Body | Extruded Aluminum Alloy | 1 |
| 13 | OeWr asher | Stainless Steel | 1 | 26 | Piston B earing | Engineering Plastic/Anodized | 2 |
Dimensional Drawing
Air Consumption
| Model | Maximum pressure | The angle of rotation | Temperature | 1°the need to adjus thenumber of laps | Diameter | Internal volume Open close | On-off time Open close | kgs/per Weight A weight Spring weight | |
| AT-52S | Lubrication or dry of compressedair 8bar | (0--90°)士5°or full tinerary-90° | B(normal) NBR O-ring -20+80℃ G(High Temperature) Viton O-ring -15+150℃ D(Low Temperature) Silicone O-ring -40+80℃ | 1/6 | 52 | 0.1 0.2 | DA 0.6 DA 0.6 SR 2.0 SR 0.5 | DA 1.30 SR 1.42 | 0.0095 |
| AT- 63S | 1/6 | 63 | 0.2 0.3 | DA 0.7 DA 0.7 SR 2.0 SR 1.0 | DA 2.05 SR 2.25 | 0.0135 | |||
| AT- 75S | 1/5 | 75 | 0.3 0.5 | DA 0.8 DA 0.7 SR 2.0 SR 1.0 | DA 2.60 SR 2.95 | 0.0210 | |||
| AT- 83S | 1/5 | 83 | 0.5 0.8 | DA 0.9 DA 0.8 SR 2.5 SR 1.0 | DA 3.30 SR 3.70 | 0.0365 | |||
| AT- 92S | 1/5 | 92 | 0.7 1.1 | DA 1.0 DA 1.0 SR 3.0 SR 1.0 | DA 4.55 SR 5.30 | 0.0600 | |||
| AT- 105S | 1/4 | 105 | 1.2 1.8 | DA 1.5 DA 1.5 SR 3.0 SR 1.0 | DA 5.80 SR 6.70 | 0.0730 | |||
| AT- 125S | 1/4 | 125 | 1.5 2.3 | DA 2.0 DA 2.0 SR 4.0 SR 1.0 | DA 8.95 SR 10.35 | 0.1100 | |||
| AT- 140S | 1/4 | 140 | 2.3 3.8 | DA 2.5 DA 2.5 SR 4.0 SR 1.0 | DA 13.35 SR 15.35 | 0.1865 | |||
| AT- 160S | 1/4 | 160 | 3.1 4.9 | DA 4.0 DA 3.0 SR 4.0 SR 1.5 | DA 19.20 SR 23.10 | 0.2695 | |||
| AT- 190S | 1/4 | 190 | 4.5 7.3 | DA 5.0 DA 4.0 SR 5.0 SR 3.0 | DA 31.05 SR 36.80 | 0.4792 | |||
| AT- 210S | 1/4 | 210 | 6.8 11.2 | DA 5.0 DA 5.0 SR 6.0 SR 3.0 | DA 39.0 SR 45.5 | 0.5001 | |||
| AT- 240S | 1/4 | 240 | 10 15.2 | DA 6.0 DA 6.0 SR 12 SR 4.0 | DA 53.0 SR 64.0 | 0.9167 | |||
| AT- 270S | 1/4 | 270 | 14.5 21.4 | DA 8.0 DA 8.0 SR 15 SR 6.0 | DA 76.0 SR 95.2 | 1.6000 | |||
| AT- 300S | 1/4 | 300 | 23.8 29.7 | DA 12 DA 12 SR 18 SR 8.0 | DA 100.0 SR 128.2 | 2.3500 | |||
| AT- 350S | 1/4 | 350 | 35.1 46 | DA 14 DA 14 SR 20 SR 10 | DA 186.0 SR 216.0 | 2.5001 | |||
| AT- 400S | 1/4 | 400 | 52.6 56 | DA 15 DA15 SR 25 SR 12 | DA 243.0 SR 279.0 | 3.0001 | |||
