AFC2000
KST&OEM&ODM Brand
| Availability: | |
|---|---|
| Quantity: | |
Features

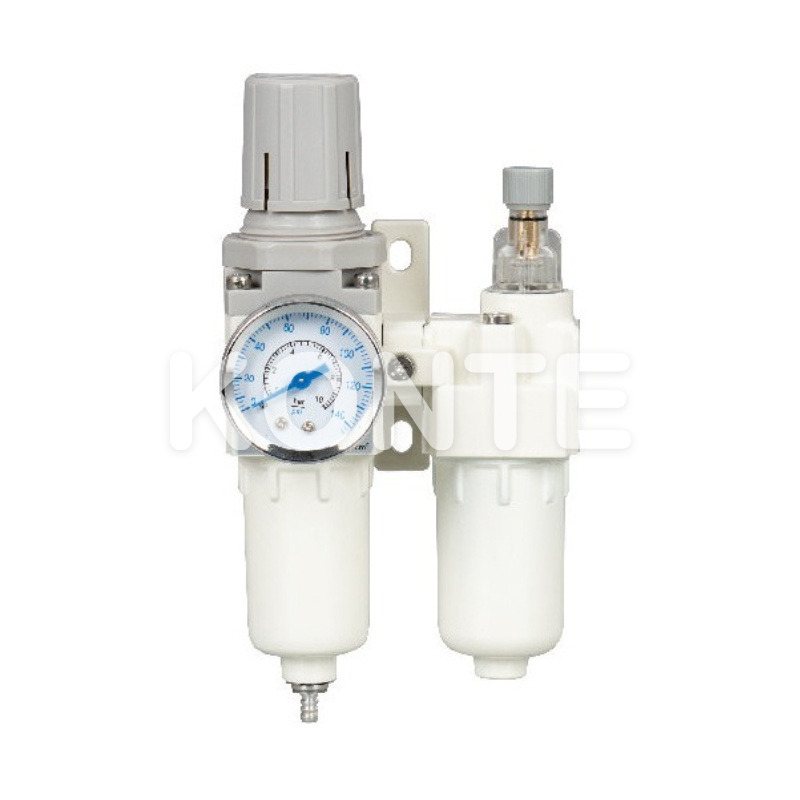

Integrated Design: Filter regulator + lubricator combination
Filtration Accuracy: 25 μm standard filter element
Pressure Range: 0.05 – 0.85 MPa (7 – 123 psi)
Drain Type: Manual drain (optional automatic drain available)
Cup Material: Polycarbonate (PC)
Body Color: White/Grey for medical, food, and cleanroom environments
Lubrication: Oil mist lubricator to prolong actuator lifespan
Gauge: Analog pressure gauge included
Mounting: Bracket installation for easy panel or wall mounting
Specifications
| Parameter | Value |
| Port Size | 1/8", 1/4" |
| Filter Accuracy | 25 μm |
| Max. Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Working Temperature | -5°C ~ 60°C |
| Bowl Guard | With transparent protection |
| Body Material | Plastic & Aluminum alloy |
Features
Integrated Design: Filter regulator + lubricator combination
Filtration Accuracy: 25 μm standard filter element
Pressure Range: 0.05 – 0.85 MPa (7 – 123 psi)
Drain Type: Manual drain (optional automatic drain available)
Cup Material: Polycarbonate (PC)
Body Color: White/Grey for medical, food, and cleanroom environments
Lubrication: Oil mist lubricator to prolong actuator lifespan
Gauge: Analog pressure gauge included
Mounting: Bracket installation for easy panel or wall mounting
Specifications
| Parameter | Value |
| Port Size | 1/8", 1/4" |
| Filter Accuracy | 25 μm |
| Max. Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Working Temperature | -5°C ~ 60°C |
| Bowl Guard | With transparent protection |
| Body Material | Plastic & Aluminum alloy |
