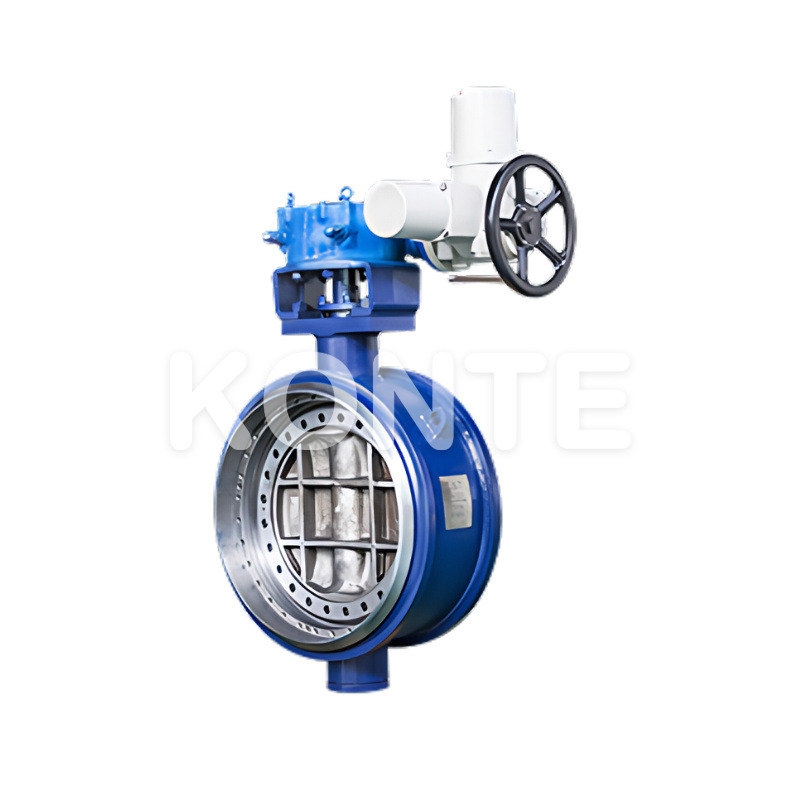

KST&OEM&ODM Brand
| Availability: | |
|---|---|
| Quantity: | |
Product Features
▶Four-dimensional eccentric design
▶Stainless steel metal sealing ring
▶Bi-directional pressure sealing
▶Bubble-tight zero leakage
▶Fire-safe design by nature
▶Low operating torque
▶Standard ISO 5211 actuator mounting interface
▶Optional diaphragm actuator, pneumatic piston actuator, or electric actuator
▶Adopts quadruple eccentric structure for wear-free operation, minimal torque loss, and long service life
▶Upper and lower stems are supported by double bearings with good self-lubrication, ensuring stable disc movement and high control accuracy
▶The sealing pair adopts a metal laminated flexible seal with automatic compensation capability
Metal-to-metal sealing (Type 1) and metal-graphite composite sealing ring (Type 4) available
Technical Parameters
| Item | Specification |
| Nominal Diameter | DN50 ~ D3000 |
| Nominal Pressure | PN10,16,25,PN40,PN63/CL150,CL300 |
| Flow Characteristics | Approximate equal percentage optional |
| Seat Leakage | Conformingwith ANSIB16.104V |
Application Recommendations
From general operating conditions to harsh conditions such as large pressure diferences, gas and liquid flow, etc., it can be reliably applied.
