▶Handle:two-position handle, three-position handle, four position pull rod handle, multi-position plastic handle and multi-position stainless steel handle
▶Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator, electric actuator

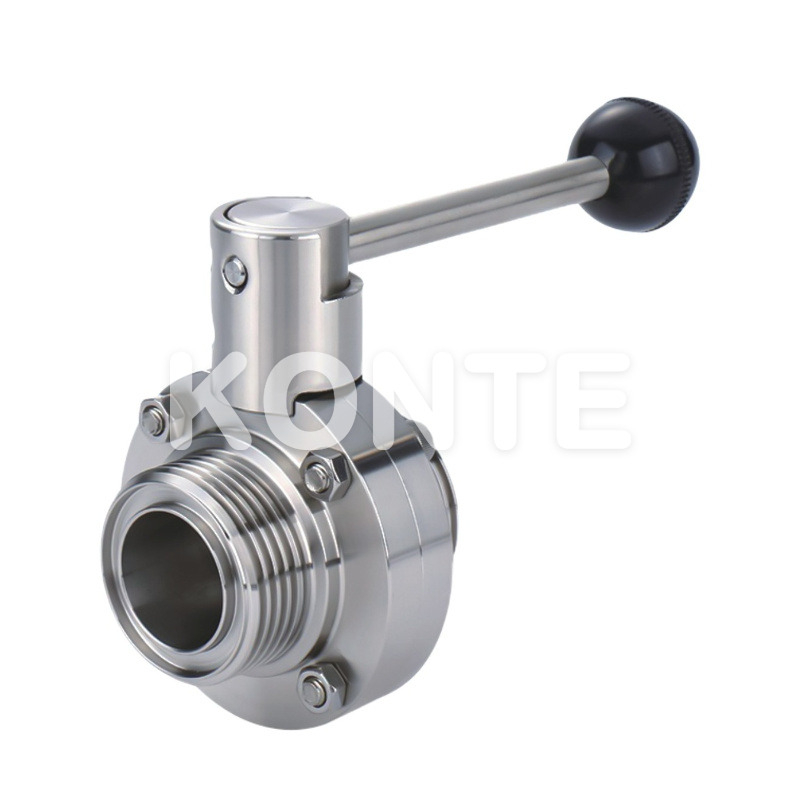

The Manual Threaded Sanitary Butterfly Valve from KONTE is engineered for hygienic process control in food, beverage, dairy, brewing, and pharmaceutical industries. Built from 304/316L stainless steel with FDA-compliant seal materials, this valve delivers reliable shut-off, flow regulation, and easy cleaning in sanitary piping systems.
KONTE is a professional sanitary valve manufacturer and supplier with 30+ years of manufacturing expertise, exporting to 60+ countries. Custom configurations (OEM/ODM), bulk supply, and wholesale pricing are available for distributors and project contractors.
Hygienic Design: Internal surface finish Ra ≤ 0.8μm meets strict sanitary requirements; external surface Ra ≤ 1.6μm.
FDA-Compliant Seals: All seal materials comply with FDA 177.2600. Standard EPDM; options include FPM, Silicone, and NBR.
Wide Temperature Range: Working temperature -20°C to +135°C (EPDM); sterilization temperature up to 150°C (max 20 min).
Multiple Connection Standards: DIN, SMS, RJT, ISO, IDF, 3A — welding, thread, Tri-Clamp, and flange available.
Flexible Control Modes: Manual handle or pneumatic/electric actuator; single-acting (NO/NC) and double-acting options.
EN 10204 3.1B Material Certificate: Available upon request for full material traceability.
Multiple Handle Options: Two-position, three-position, four-position pull rod, multi-position plastic, and multi-position stainless steel handles.
Actuator Compatibility: Pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator.
The manual threaded sanitary butterfly valve is designed for industries where hygiene and process control are critical. Learn more about KONTE's industry solutions:
Food & Beverage: Juice, soft drinks, brewing, dairy processing lines
Pharmaceutical: GMP-compliant production processes requiring cleanable, traceable valve components
Biotechnology: Fermentation and bioreaction process control
Dairy: Milk and cream processing with CIP/SIP compatibility
Chemical: Corrosion-resistant configurations for non-aggressive process media
Every valve undergoes strict inspection before shipment. KONTE's quality control process includes:
Spectrometer material detection
Surface roughness testing
Hydrostatic pressure testing
Air tightness testing
100% inspection with photographic records
All experimental data is stored for over 10 years. Inspection standards: API 598, API 6D.
KONTE's service program supports every stage of your project:
Technical consultation: Model selection based on your process conditions and budget
Fast quotation: Response within 24 hours
On-time delivery: Annual delay rate under 2%
Warranty: 12 months from shipment or 18 months from installation
After-sales response: Complaint resolution initiated within 8 working hours; emergency cases within 4 hours
15 overseas warehouses across Asia, Europe, and the Americas for local stock and fast dispatch
Q: What seal materials are available for the manual threaded sanitary butterfly valve?
A: Standard is EPDM. Options include FPM (Viton), Silicone, and NBR. All comply with FDA 177.2600.
Q: What connection types are supported?
A: Welding, male thread, Tri-Clamp, and flange. Standards: DIN, SMS, RJT, ISO, IDF, 3A.
Q: Can the valve be upgraded from manual to actuated operation?
A: Yes. The valve is compatible with pneumatic stainless steel actuators, pneumatic aluminum actuators, and electric actuators.
Q: Is OEM/ODM manufacturing available?
A: Yes. KONTE offers OEM/ODM services with 10+ years of experience. Custom sizes, materials, and branding are supported for wholesale and bulk supply orders.
Q: What is the maximum sterilization temperature?
A: 150°C for a maximum of 20 minutes (CIP/SIP compatible with EPDM seals).
