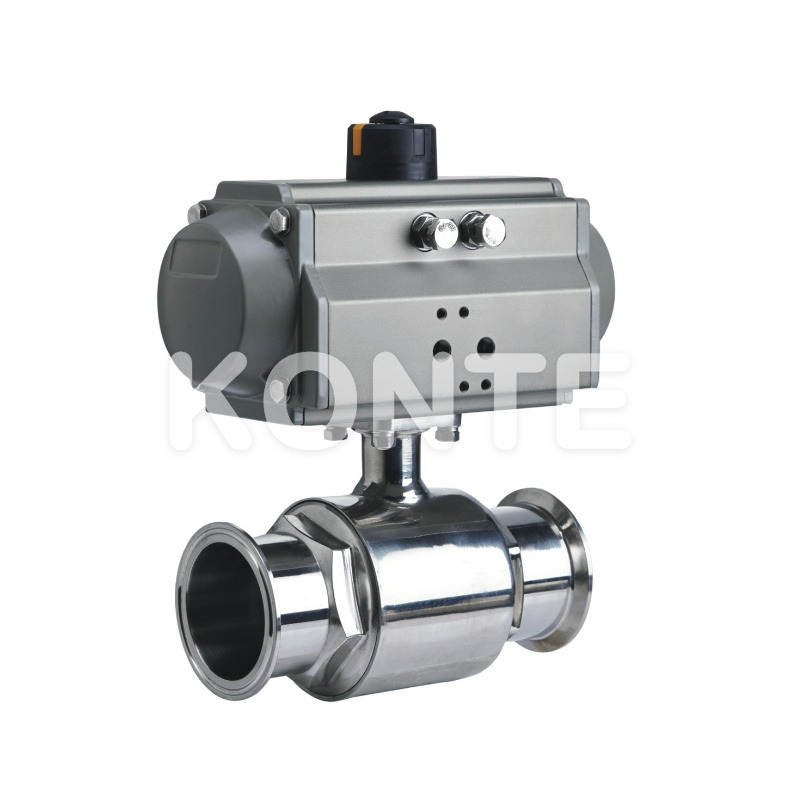

The Sanitary Tri-Clamp Pneumatic Ball Valve is engineered for hygienic process systems that demand reliable sealing, fast actuation, and compliance with international food and pharmaceutical standards. Available in L-type and T-type configurations, this valve supports CIP (Clean-In-Place) and SIP (Steam-In-Place) sterilization processes, making it a trusted choice across food processing, beverage, dairy, biopharmaceutical, and chemical industries.
As a dedicated sanitary valve manufacturer, KONTE produces these valves in compliance with 3A, DIN, SMS, IDF, RJT, BPE, and ISO standards — backed by over 30 years of manufacturing expertise and globally recognized certifications.
Fully covered valve seat — no dead zones, no product retention, high internal cleanliness
Compliant with CIP/SIP sterilization requirements; temperature range: -40°C to 150°C, pressure: 0–10 Bar
Seal Material: PTFE, compliant with FDA 21 CFR 117.2600
Connection Types: Tri-Clamped, Welded, Threaded
Size Range: 1" – 4" (DN15–DN100)
Standards: 3A, DIN, SMS, IDF, RJT, BPE, ISO
Valve body is interchangeable without altering face-to-face dimensions, regardless of connection type
L-type and T-type designs can be swapped on-site; inlet/outlet direction freely configurable — ensures zero stagnation and no dead angles
| Parameter | Specification |
|---|---|
| Size Range | DN15 ~ DN100 (1" – 4") |
| Applicable Pressure | 0 ~ 1.0 MPa (0–10 Bar) |
| Valve Construction | Full-port, 3-way, 4-way |
| Valve Body Material | CF8, CF8M, CF3M (316L stainless steel) |
| Seal Material | PTFE (FDA 21 CFR 117.2600) |
| Medium Temperature | -20°C ~ 150°C |
| Ambient Temperature | -20°C ~ 80°C |
| Actuation | Pneumatic (Single-acting / Double-acting), Electric, Manual |
| Connection | Welded, Tri-Clamped, Flanged |
| Applicable Media | Water, Oil, Gas, CIP/SIP fluids |
KONTE supplies pneumatic ball valves compliant with major international standards including DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE, and API, as well as customer-specific specifications.
Each valve consists of: actuator, handle/manual override, ball, valve body, stem, and sealing rings.
Available connection configurations:
Tri-Clamp (Tri-Clamped) Ball Valve — most common in hygienic systems
Welded Ball Valve — for permanent, contamination-free piping
Threaded Ball Valve — for easy installation and maintenance
Flanged Ball Valve — for high-pressure pipeline systems
All wetted surfaces are polished to Ra ≤ 0.8 µm (or per BPE/3A requirements), ensuring cleanability and compliance with GMP standards.
Hygienic compliance: Meets 3A, BPE, FDA, and GMP standards for clean process industries
CIP/SIP ready: Full internal cleanability without disassembly, reducing downtime
On-site flexibility: L-type and T-type bodies interchangeable; direction reconfigurable without new pipework
Consistent face-to-face dimension: Simplifies maintenance and valve replacement in existing systems
Material options: CF8 (304SS), CF8M (316SS), CF3M (316L SS) — corrosion-resistant across a wide range of media
Dual actuation options: Single-acting (spring-return) or double-acting pneumatic; also available in electric or manual
100% factory inspection with photographic records per API 598 and API 6D before shipment
The Sanitary Tri-Clamp Pneumatic Ball Valve is engineered for use in:
Food & Beverage Processing — dairy, juice, brewing, bottled water, sauces
Pharmaceutical Manufacturing — API production, sterile fluid transfer, GMP-compliant systems
Biotechnology — fermentation systems, bioreactor fluid control, cell culture media
Dairy Industry — pasteurization lines, milk transfer, CIP/SIP piping
Chemical Processing — mild corrosive media, solvent handling
Cosmetic & Personal Care — emulsion lines, clean-room fluid systems
Q1: What standards does the KONTE sanitary pneumatic ball valve comply with?
Our valves are manufactured to 3A, DIN, SMS, IDF, RJT, BPE, and ISO standards. Custom specifications are available on request.
Q2: Is the seal material FDA-approved?
Yes. The PTFE seal meets FDA 21 CFR 117.2600 requirements, suitable for direct food and pharmaceutical contact.
Q3: Can the valve handle CIP and SIP cleaning cycles?
Yes. The fully covered valve seat design eliminates dead zones, enabling complete CIP/SIP cleaning without disassembly. It withstands temperatures up to 150°C and pressures up to 10 Bar.
Q4: What actuator types are available?
We supply single-acting (spring-return) pneumatic, double-acting pneumatic, electric, and manual actuation. Custom fail-safe configurations are available.
Q5: Do you offer OEM or ODM services?
Yes. KONTE provides OEM/ODM manufacturing with custom sizing, materials, connection standards, and branding. Contact us for bulk supply and wholesale pricing.
