The Stainless Steelluminaire Sight Glass revolutionizes the way operators interact with closed-loop fluid systems and enclosed vessels. Crafted with an exceptionally smooth, mirror-polished metallic finish, the housing feels incredibly robust to the touch while exuding the precision engineering required for high-stakes sanitary environments. Once installed, the brilliant, glare-free luminaire casts a crisp, cool white light through the pristine silicon boride glass, effortlessly piercing through even the most opaque, dark, or heavily particulate fluids. This allows your operational team to instantly verify flow rates, detect potential blockages, and monitor mixing consistency without ever needing to interrupt the active process. The seamless integration of the lighting element eliminates external shadows and reflections, providing an unobstructed, crystal-clear window directly into the heart of your tanks or pipelines. Designed specifically to enhance operational confidence, this sight glass ensures that every batch maintains your exacting standards, significantly reducing the risk of costly downtime and product loss. Furthermore, the flawless stainless steel housing not only looks immaculate but stands as a steadfast, impenetrable barrier against harsh chemical washes, intense thermal cycling, and the rigorous demands of daily industrial operations.
Size (Ø) | D (mm) | Do (mm) | Do (mm) | L (mm) |
|---|---|---|---|---|
25 | 51 | 25.4 | 22.4 | 30 |
38 | 74 | 38.1 | 35.1 | 33 |
51 | 84 | 50.8 | 47.8 | 36 |
63 | 100 | 63.5 | 59.5 | 39 |
76 | 114 | 76.2 | 72.2 | 39 |
102 | 138 | 101.6 | 97.6 | 43 |
152 | 210 | 152.4 | 146.8 | 55 |
Combining structural integrity with advanced visual monitoring capabilities, this sight glass is engineered to solve complex observation challenges in demanding environments. Every element is optimized to provide maximum visibility while maintaining absolute system security.
Uncompromised Visual Clarity: The integration of a high-performance luminaire ensures that operators can accurately assess fluid color, consistency, and flow dynamics, eliminating the guesswork associated with dark or enclosed vessels.
Streamlined Maintenance: The ergonomic design allows for rapid disassembly and cleaning. The smooth, crevice-free surfaces prevent the accumulation of residue, making routine maintenance remarkably efficient and straightforward.
Exceptional Structural Integrity: Machined from solid stainless steel billets, the housing resists mechanical stress and vibration, ensuring a long operational lifespan even in continuous, high-throughput processing lines.
Leak-Proof Assurance: Utilizing precision-engineered sealing elements, the unit guarantees a secure, drip-free connection that protects your facility from hazardous spills and preserves the purity of the internal media.
Maintaining absolute purity is the non-negotiable foundation of any sanitary processing facility. This sight glass is meticulously constructed to eliminate contamination risks and uphold the highest standards of hygiene required by regulatory bodies.
Premium Alloy Selection: All wetted parts are forged from superior 304 or 316L stainless steel, offering exceptional resistance to pitting and corrosion caused by aggressive media or cleaning agents.
Zero Dead-Leg Design: The internal geometry is expertly contoured to ensure smooth fluid transitions. This eliminates crevices or ""dead legs"" where bacteria or stagnant product could accumulate, safeguarding against cross-contamination.
FDA-Grade Sealing: Equipped with standard EPDM seals, with optional NBR or PTFE upgrades, all elastomers are strictly compliant with FDA regulations, ensuring they will not degrade, leach, or impart any unwanted odors or flavors into your product.
Visibility is paramount when monitoring complex chemical reactions or delicate biological fermentations. The lighting system integrated into this sight glass is engineered to deliver unparalleled optical performance under the most challenging conditions.
High-Intensity Cold White LED: The luminaire utilizes advanced LED technology that emits a highly penetrating cold white light. This ensures maximum visibility through dense or turbid liquids without transferring unwanted heat into the process media.
Glare-Free Optics: Specifically designed to prevent blinding reflections on the glass surface, the lighting module provides a soft, even illumination that reduces eye strain for operators conducting prolonged visual inspections.
Hazardous Environment Readiness: For facilities handling volatile substances, optional explosion-proof (Ex-proof) configurations are available, providing total peace of mind and strict compliance with safety protocols in high-risk zones.
Industrial processing environments are unforgiving, often subjecting equipment to severe temperature fluctuations and intense pressures. This component is built to thrive where standard observation windows would inevitably fail.
Thermal Shock Resistance: The utilization of premium silicon boride glass or specially tempered glass allows the unit to withstand sudden and drastic temperature changes, perfectly accommodating rigorous CIP (Clean-In-Place) and SIP (Sterilize-In-Place) procedures.
High-Pressure Tolerance: Engineered to securely contain process media, the robust assembly can safely endure maximum working pressures up to 10 Bar, ensuring reliable performance in high-velocity pumping systems.
Broad Temperature Range: With the standard EPDM sealing, the unit operates flawlessly in environments ranging from -20℃ down to freezing conditions, all the way up to a blistering 135℃, covering the vast majority of industrial thermal requirements.
Seamless integration into your existing infrastructure is critical to minimizing installation downtime. We have designed this sight glass to be as adaptable and universally compatible as possible.
Comprehensive Size Matrix: Available in a wide array of precise dimensions, from a compact DN25 up to a massive DN152, ensuring a perfect fit for both intricate laboratory setups and large-scale industrial pipelines.
Universal Standard Compatibility: The connection interfaces are meticulously machined to align with international pipeline standards, including DIN, SMS, and 3A, guaranteeing a flawless, leak-free integration with your current piping architecture.
Modular Connection Types: Whether your facility utilizes quick-release Tri-Clamps for frequent dismantling, secure flanged connections for high-pressure zones, or traditional threaded unions, the versatile design accommodates your preferred installation method.
Modern facilities require adaptable power solutions and intelligent monitoring capabilities. The luminaire module is designed to integrate smoothly into both traditional and cutting-edge automated environments.
Versatile Voltage Inputs: The lighting system supports a wide range of power supplies, from low-voltage 12V/24V AC/DC setups to standard 110V-240V mains, ensuring compatibility with your facility's specific electrical grid.
Cordless Operation Capabilities: For installations where wiring is impractical or poses a safety hazard, a high-capacity wireless charging model is available, delivering 2 to 3 months of reliable illumination on a single charge.

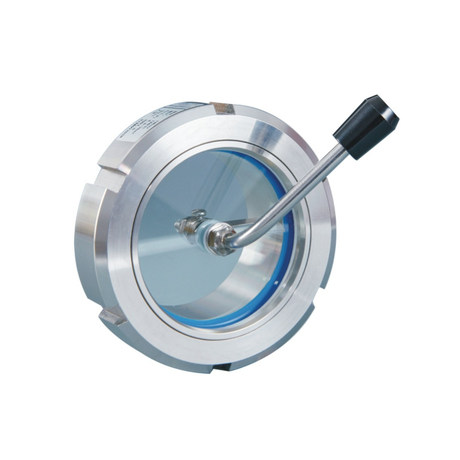

Automated Monitoring Upgrades: To elevate your process control, the unit can be customized with optional internal wipers to clear condensation, or integrated with high-definition camera systems for remote, real-time control room monitoring.
The highly adaptable nature and robust construction of this visual monitoring tool make it an indispensable asset across a diverse spectrum of specialized industries.
Food and Beverage Processing: Ideal for monitoring the blending of syrups, the clarity of filtered beverages, and the consistency of dairy products, ensuring every batch meets strict consumer quality standards.
Pharmaceutical Manufacturing: Provides the critical visibility needed for monitoring sensitive active pharmaceutical ingredients (APIs) and maintaining absolute sterility inside high-value bioreactors.
Cosmetics Production: Enables precise observation of emulsion processes and pigment blending, guaranteeing the perfect texture and color consistency for premium skincare and beauty products.
Fine Chemical Engineering: Delivers safe, reliable monitoring of volatile reactions, filtration systems, and mixing tanks, protecting both the integrity of the chemical product and the safety of the facility personnel.
Selecting the right manufacturer and supplier for your sanitary components is a critical decision that impacts your entire operation. We provide more than just equipment; we deliver long-term reliability and engineering excellence.
Uncompromising Quality Assurance: Every single sight glass undergoes rigorous pressure testing, material verification, and optical clarity inspections before it leaves our facility, ensuring zero defects upon arrival.
Direct-from-Manufacturer Value: By controlling the entire production process from raw material sourcing to final polishing, we eliminate intermediary markups, providing you with premium quality components at highly competitive price points.
Deep Engineering Expertise: Our technical team possesses decades of experience in sanitary fluid dynamics. We offer comprehensive support to help you select the exact specifications, seals, and lighting options tailored to your unique process challenges.
Reliable Global Logistics: We understand that facility downtime is expensive. Our streamlined inventory management and robust shipping networks ensure that your critical components are delivered promptly and securely, exactly when you need them.
Here are some of the most common technical inquiries we receive regarding the installation, maintenance, and performance of our luminaire sight glasses.
The entire unit is engineered with thermal shock-resistant silicon boride or tempered glass, and the luminaire housing is sealed to IP65/IP67 standards. This means it can easily withstand the high temperatures (up to 135℃ with EPDM) and the aggressive caustic washdowns typical of Clean-In-Place and Sterilize-In-Place procedures without moisture penetrating the lighting module.
Yes. The modular design of the stainless steel frame allows maintenance personnel to unbolt the retaining ring and swap out the glass disc, sealing gaskets, or the LED luminaire module directly in place. This significantly reduces maintenance downtime and prevents the need to completely drain or dismantle the surrounding pipeline infrastructure.
Silicon boride glass (often referred to as borosilicate) offers a significantly lower coefficient of thermal expansion compared to standard tempered glass. This makes it vastly superior in environments subject to rapid, extreme temperature changes, practically eliminating the risk of the glass shattering due to thermal shock during sudden heating or cooling phases.
EPDM (the standard option) is excellent for hot water, steam, and mild alkaline/acidic solutions, making it perfect for general food and beverage applications. NBR is recommended if your process involves oils, fats, or petroleum-based products. PTFE should be selected for highly aggressive fine chemicals or solvents, as it offers the broadest spectrum of chemical resistance, though it is less elastic than EPDM or NBR.
The wireless charging model is primarily designed for intermittent observation, offering an impressive 2-3 months of battery life under normal periodic usage. If your process requires continuous, uninterrupted 24/7 illumination for constant camera monitoring or constant visual checks, we highly recommend opting for the hardwired 12V/24V or 110V-240V versions to ensure a permanent power supply.
