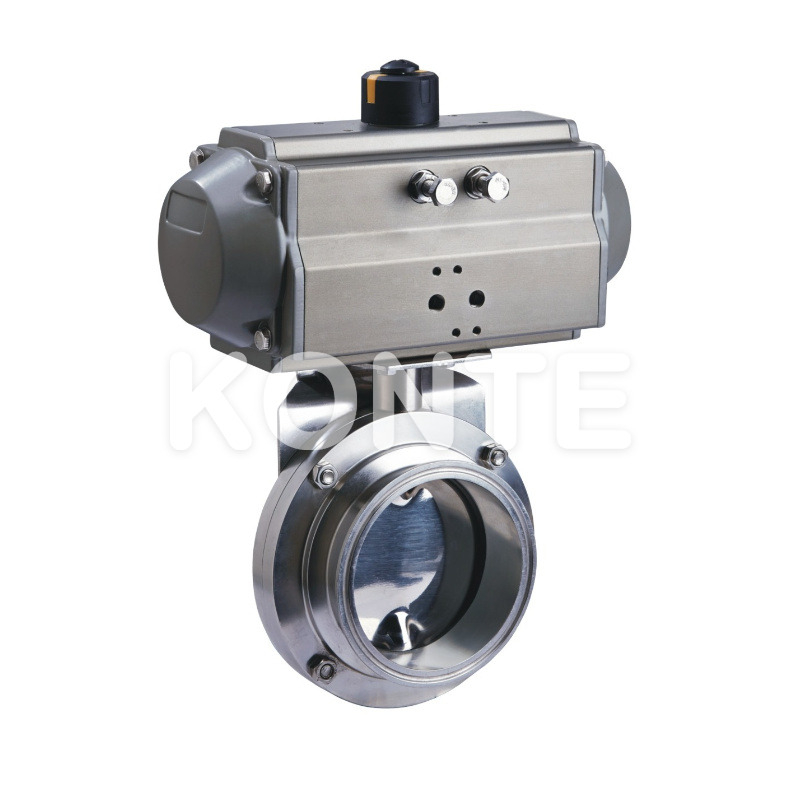

The pneumatic sanitary butterfly valve is engineered for stainless steel pipeline systems that require strict hygienic control. It supports both pneumatic actuation and manual operation, making it versatile for automated production lines and manual process control. Valve body material is 304 or 316L stainless steel, with internal surface finish Ra ≤ 0.8μm to meet sanitary requirements.
All seal materials comply with FDA 177.2600 standards. The valve is available in multiple connection standards — DIN, SMS, RJT, ISO, IDF, and 3A — and can be configured with pneumatic stainless steel actuators, pneumatic aluminum actuators, or electric actuators.
As a trusted valve exporter to 60+ countries, KONTE provides bulk supply, custom configurations, and OEM/ODM manufacturing services for distributors and project contractors worldwide.
Handle Types:
Two-position handle
Three-position handle
Four-position pull rod handle
Multi-position plastic handle
Multi-position stainless steel handle
Actuator Types:
Pneumatic stainless steel actuator
Pneumatic aluminum actuator
Electric actuator
▶This series butterfly valve is either remote-controlled by means of an actuator or manually operated by means of a handle.
▶The actuator is made in three standard versions, normally closed(NC), normally open (NO) and air/air activated (A/A).
▶The actuator is designed so that an axial movement of a piston is transformed into a 90°rotation of a shaft.The torque of the actuator is increased when the valve disc contacts the seal ring of the
butterfly valve.valve is closed.
▶Selected The handle for manual operation mechanically can lock the valve in open,close,middle or other positions to control the flow rate.
OPERATING TORQUE [N.M] | 15-3/4 | 25-1" | 40-11/2'' | 50-2 | 21/2" | 65 | 3" | 80 | 100-4'' | 125 | 150 |
| 5 | 8 | 10 | 14 | 15 | 18 | 18 | 20 | 35 | 55 | 70 |
Detect under pressure of 10Kgrs/cm
| Parameter | Specification |
|---|---|
| Model Range | DN15 ~ DN200 |
| Working Pressure | 0 ~ 10 bar (0 ~ 1.0 MPa) |
| Control Air Pressure | 5 ~ 8 bar |
| Valve Body Material | CF8, CF8M, CF3M (304 / 316L) |
| Other Steel Parts | 304 stainless steel |
| Seal Material (Standard) | EPDM |
| Seal Material (Options) | FPM, Silicone, NBR |
| Seal Compliance | FDA 177.2600 |
| Working Temperature | -20°C ~ +135°C (EPDM) |
| Sterilization Temperature | 150°C (MAX 20 min) |
| Ambient Temperature | -20°C ~ +80°C |
| Internal Surface Finish | Ra ≤ 0.8 μm |
| External Surface Finish | Ra ≤ 1.6 μm |
| Connection Standards | DIN, SMS, RJT, ISO, IDF, 3A |
| Connection Methods | Welding, Thread, Tri-Clamp, Flange |
| Control Modes | Single-acting (NO/NC), Double-acting (NO/NC), Manual |
| Certificate | EN 10204 3.1B material certificate |
| Standard | DIN, SMS |
FDA-Compliant Seals: All wetted seal materials meet FDA 177.2600, suitable for food contact and pharmaceutical media.
Full 316L Wetted Parts: Valve body and disc in 304/316L stainless steel for corrosion resistance and CIP/SIP compatibility.
High-Polish Internal Surface: Ra ≤ 0.8μm internal finish prevents bacterial accumulation and simplifies cleaning.
Flexible Actuation: Pneumatic (SS or aluminum) and electric actuators available; single-acting or double-acting configurations supported.
Multi-Connection Standards: Compatible with DIN, SMS, RJT, ISO, IDF, and 3A pipeline systems for global project applications.
Wide Temperature Range: Operates from -20°C to +135°C; supports sterilization cycles up to 150°C.
Intelligent Control Options: Compatible with 24V DC solenoid valve, position sensors (NPN/PNP), and intelligent controllers for automated process lines.
Third-Party Certified: EN 10204 3.1B material traceability certificate available on request.
| Material | Product wetted steel parts | 304/316L | |||
| Other steel parts | 304 | ||||
| Provide E N 10204 3.1Bcertificate | |||||
| Seal material | standard | EPDM | |||
| option | FPM，Silicone，NBR | ||||
| All seal materials comply with FDA 177.2600 | |||||
| Temperature | Working temperature | -20~+135℃（EPDM） | |||
| Sterilization temperature | 150℃ (MAX 20min) | ||||
| Pressure | Working pressure | 0~10bar | |||
| Control air pressure | 5~8bar | ||||
| Surface treatment | Internal surface | Ra ≤ 0.8μm | |||
| External surface | Ra ≤ 1.6μm | ||||
| Connection | Connection standard | DIN,SMS,RJT,ISO,IDF,3A | |||
| Connection method: welding、thread、Tri-Clamp、flange | |||||
| Operate modes | Handle | Handle: two-position handle, three-position handle, fou position pull rod handle, multi-position plastic handle and multi-position stainless steel handle | |||
| Actuator | pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator | ||||
| Option | Intelligent controller | 24V DC | |||
| 1/2 electromagnetism valve | |||||
| Position sensor | 24V DC | ||||
| 2 NPN/PNP position sensor | |||||
This pneumatic sanitary butterfly valve is designed for stainless steel sanitary pipeline systems. It is widely used in:
Food & Beverage Processing — brewing, juice, soft drinks, dairy
Dairy Industry — milk processing, cheese production, whey processing
Pharmaceutical Manufacturing — GMP-compliant production lines, API processing
Biotechnology — fermentation control, bioreactor systems
Cosmetics & Personal Care — hygienic fluid control in filling lines
For more application references, visit our industry solutions page.
Every KONTE sanitary butterfly valve undergoes a multi-stage inspection process before shipment:
Material spectrometer testing for compliance verification
Visual inspection for surface defects, burrs, and dimensional accuracy
Pressure test and air tightness test
Hardness testing
100% inspection with pictures recorded
Test data stored for 10+ years
KONTE holds ISO 9001, CE, FDA, and SIL certifications. Learn more on our quality control page.
Q1: What seal materials are available for the pneumatic sanitary butterfly valve?
Standard configuration uses EPDM. FPM (Viton), Silicone, and NBR are available as options. All seal materials comply with FDA 177.2600.
Q2: Is this valve suitable for CIP/SIP cleaning processes?
Yes. The internal surface finish of Ra ≤ 0.8μm and FDA-compliant seals make it suitable for clean-in-place and steam-in-place applications. Maximum sterilization temperature is 150°C for up to 20 minutes.
Q3: What connection types are supported?
Welding, threaded, Tri-Clamp, and flanged connections are available. Compatible standards include DIN, SMS, RJT, ISO, IDF, and 3A.
Q4: Can the actuator be integrated with a PLC or automation system?
Yes. The valve supports 24V DC intelligent controllers, solenoid valves, and NPN/PNP position sensors for full PLC integration and automated process control.
Q5: Do you offer OEM or custom configurations?
Yes. KONTE provides OEM/ODM manufacturing, custom materials, and private-label options. Contact our team via the service page for project requirements.
Q6: What is the lead time and do you have stock?
Standard configurations are often available from our 15 overseas warehouses for immediate dispatch. Custom orders are quoted within 24 hours. Annual on-time delivery rate exceeds 98%.
