Standard Electric Actuators vs Explosion-Proof Electric Actuators: How to Choose?

Choosing the right electric actuator is essential for safe and efficient valve automation. Different industrial environments require different levels of protection, and selecting the wrong actuator type may lead to unnecessary costs or safety risks.

This article explains the differences between Standard Electric Actuators and Explosion-Proof Electric Actuators, including their design features,

 application scenarios, and key factors to consider when selecting an actuator for industrial valve control.

Table of Contents

1. What Are Standard and Explosion-Proof Electric Actuators?

2. Standard vs Explosion-Proof Electric Actuators: Key Differences

3. Where Should Each Type Be Used?

4. How to Choose the Right Electric Actuator?

5. FAQ

Core Keywords: Electric Actuator, Standard Electric Actuator, Explosion-Proof Electric Actuator, Electric Valve Actuator

1. What Are Standard and Explosion-Proof Electric Actuators?

An Electric Actuator is a device that converts electrical energy into mechanical movement to operate industrial valves automatically. It is widely used for On/Off Valve Control, Modulating Valve Control, Remote Valve Operation, and Automated Process Control in industries such as water treatment, chemical processing, oil and gas, and general manufacturing.

Although both standard and explosion-proof electric actuators are designed to automate valves, the main difference lies in their protection design and applicable operating environments.

1) Standard Electric Actuator

A Standard Electric Actuator is designed for normal industrial environments where explosive gases, flammable vapors, or combustible dust are not present.

These actuators mainly focus on:

• Reliable valve automation

• Protection against dust and moisture

• Easy installation and maintenance

• Cost-effective industrial operation

Standard electric actuators are commonly used in safe industrial areas, including water treatment facilities, HVAC systems, manufacturing plants, and general pipeline applications.

Typical applications include:

• Ball Valve Automation

• Butterfly Valve Automation

• General pipeline flow control

• Industrial equipment automation

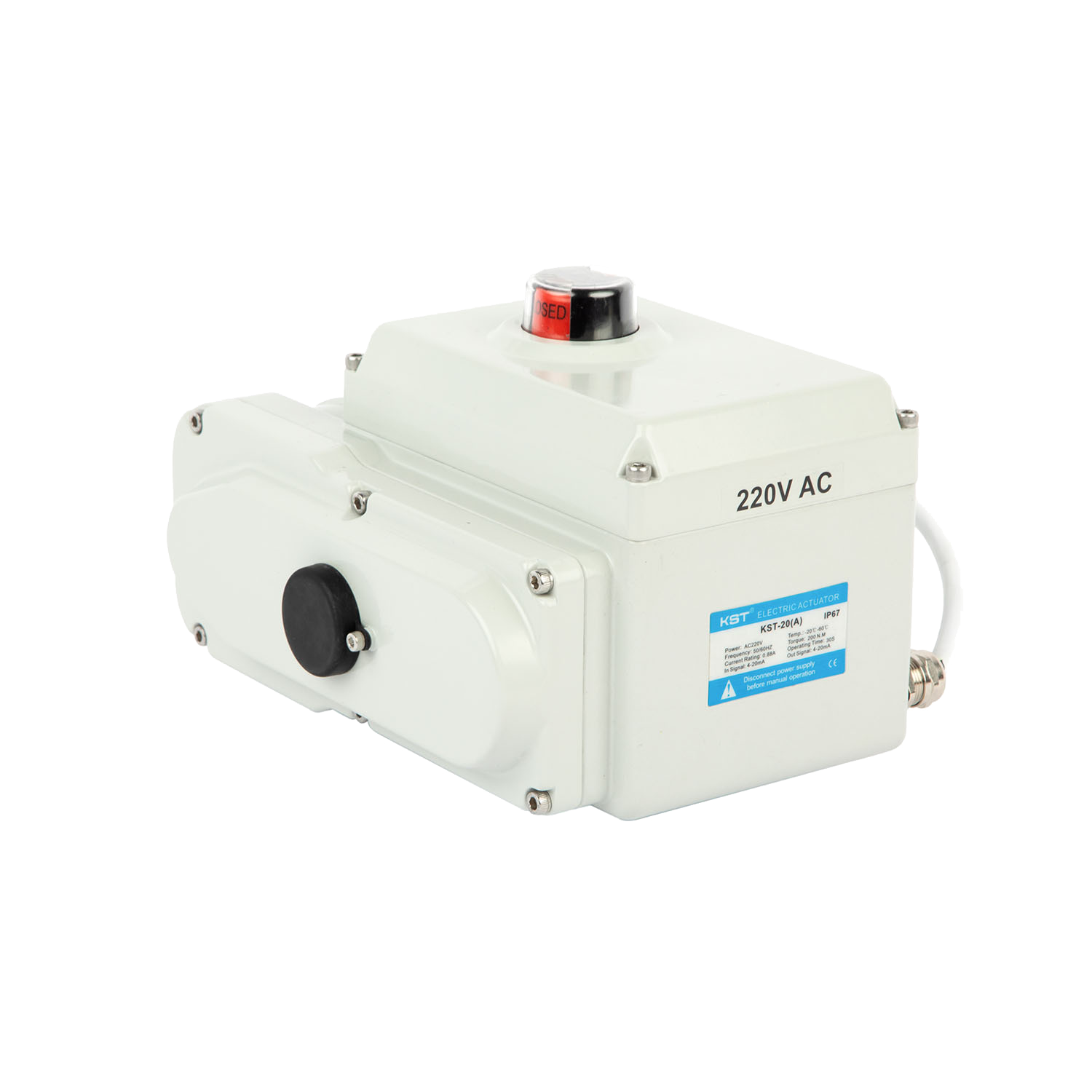

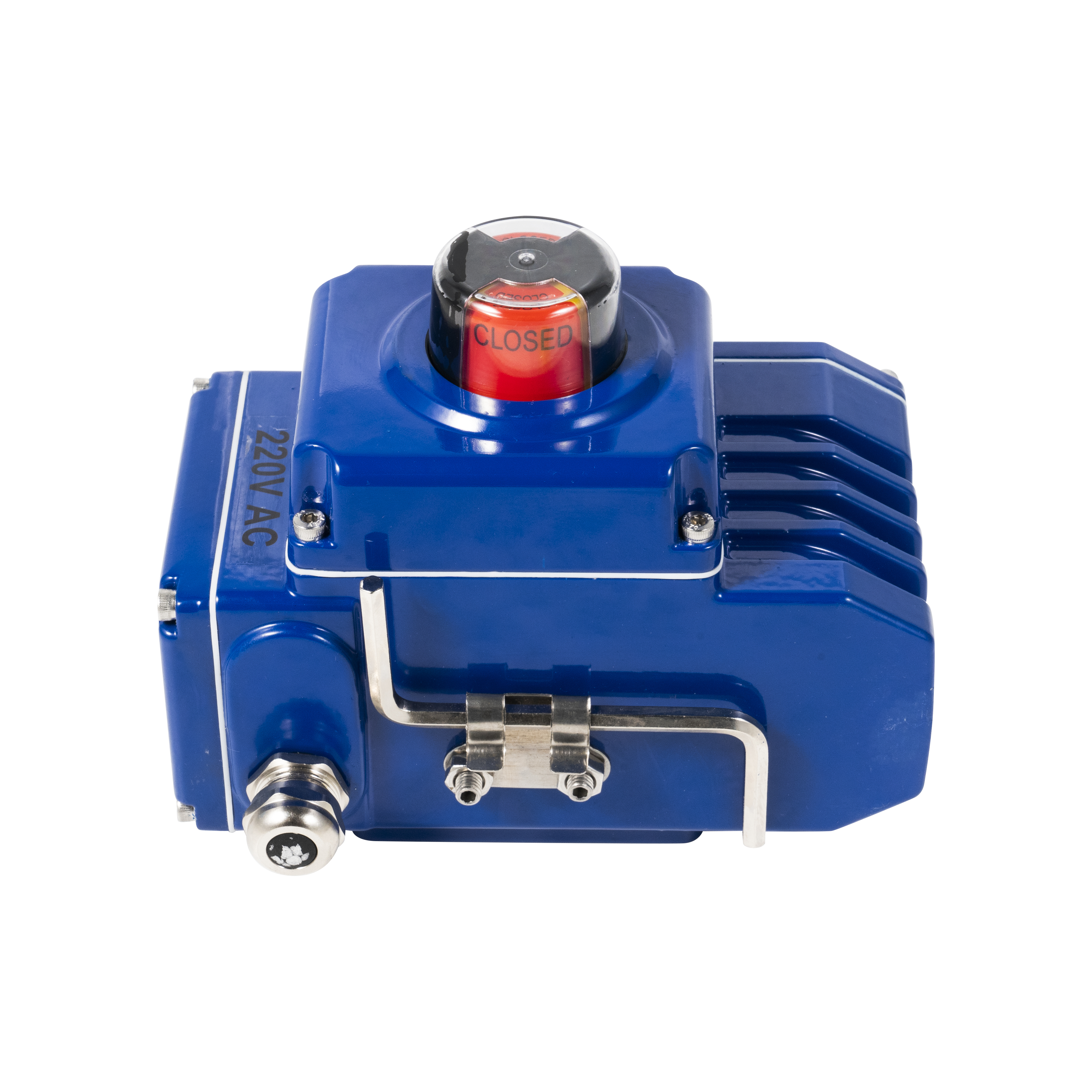

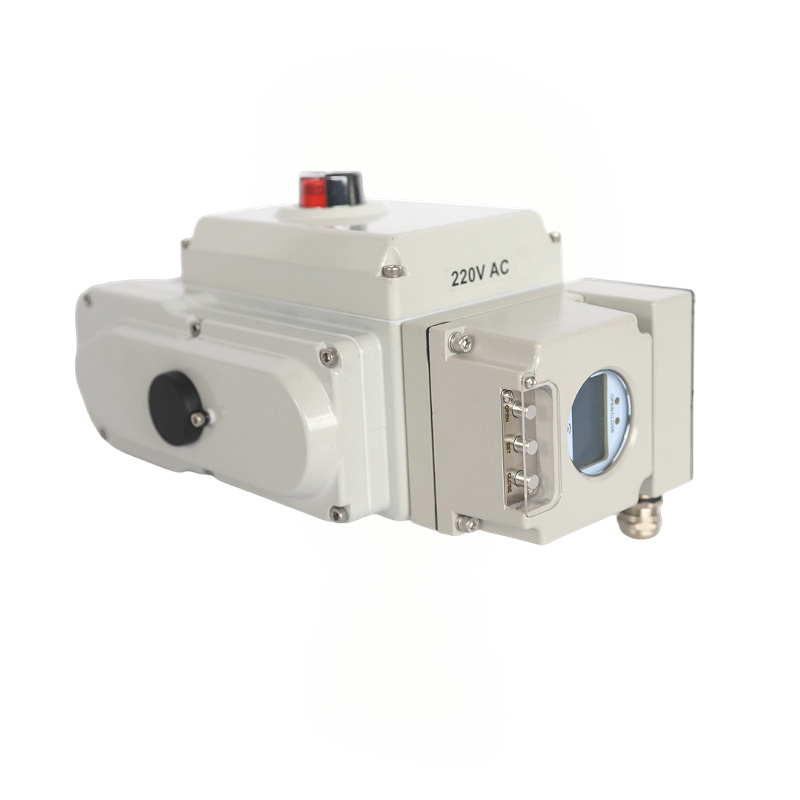

For example, KONTE provides compact solutions for accurate valve control, such as the Compact Electric Actuator for Precise Valve Automation, which is suitable for various industrial valve applications.

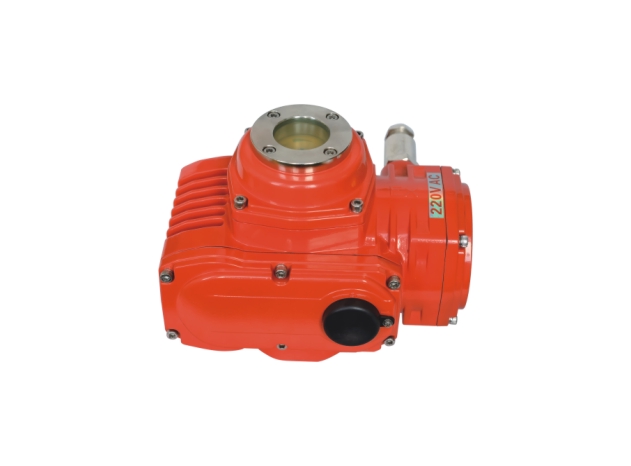

2) Explosion-Proof Electric Actuator

An Explosion-Proof Electric Actuator is designed for hazardous environments where combustible gases, vapors, or dust may exist.

Unlike standard models, explosion-proof actuators use specially designed housings to improve operational safety. The purpose of an explosion-proof enclosure is not to prevent all internal sparks, but to contain internal ignition and prevent flames or hot gases from igniting the surrounding atmosphere.

The main features include:

• Heavy-duty metal enclosure

• Special flame-path design

• Certified hazardous area protection

• Enhanced safety performance

Explosion-proof electric actuators are commonly applied in:

• Oil and gas pipeline systems

• Chemical processing plants

• Refineries

• Hazardous industrial facilities

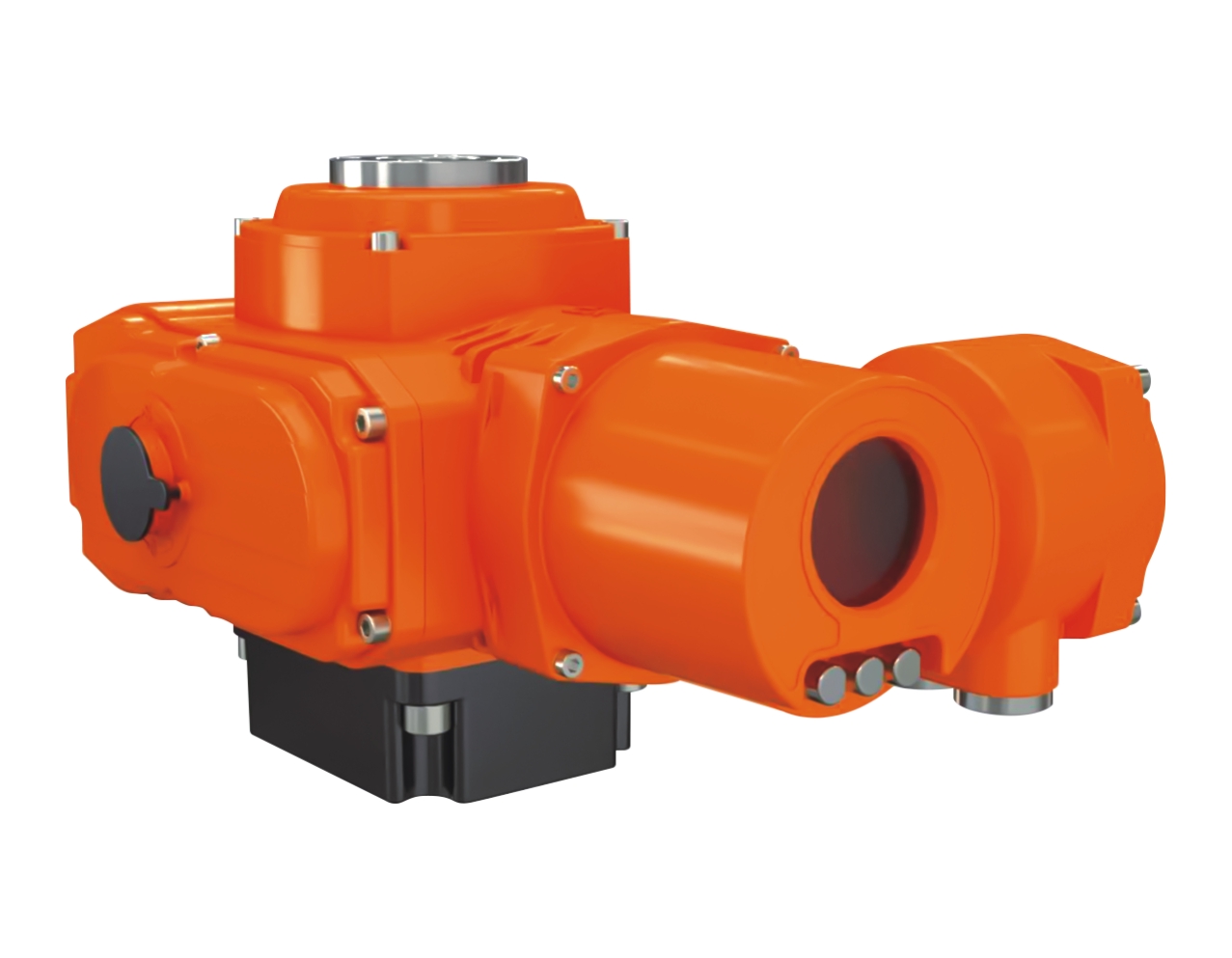

KONTE's Premium Explosion-Proof Electric Actuator is developed for applications requiring additional protection in demanding industrial environments.

2. Standard vs Explosion-Proof Electric Actuators: Key Differences

The biggest difference between a standard electric actuator and an explosion-proof electric actuator is the enclosure structure and environmental protection capability.

Both actuator types provide reliable valve automation, but explosion-proof models offer additional protection for hazardous locations.

Protection and Certification Requirements

When selecting an actuator for industrial projects, buyers should evaluate the installation environment and required certifications.

Common hazardous area standards include:

• ATEX and IECEx certification for international markets

• NEC/CEC Class and Division systems in North America

The actuator selection should always match the actual operating conditions rather than only the industry category.

3. Where Should Each Type Be Used?

Choosing between a Standard Electric Actuator and an Explosion-Proof Electric Actuator depends mainly on the operating environment, safety requirements, and valve automation purpose.

The correct actuator type should be selected according to the actual installation conditions, especially whether hazardous materials or explosive atmospheres exist.

1) Applications for Standard Electric Actuators

Standard electric actuators are suitable for non-hazardous areas where there is no risk of combustible gases, vapors, or explosive dust.

Water Treatment Systems

Water treatment plants require reliable valve control for water distribution, filtration, and pumping systems. Standard electric actuators can provide stable automation for pipeline systems and improve operational efficiency.

Common applications include:

• Water flow regulation

• Pipeline valve switching

• Remote valve operation

• Automated treatment processes

HVAC and Building Automation

In HVAC systems, electric actuators are commonly used to control valves for heating, cooling, and ventilation systems.

They help achieve:

• Automatic temperature control

• Energy-efficient operation

• Centralized system management

General Manufacturing Applications

Many manufacturing facilities use standard electric actuators for utility pipelines and production equipment where explosive risks are not present.

Typical applications include:

• Compressed air systems

• Industrial water pipelines

• Equipment automation systems

2) Applications for Explosion-Proof Electric Actuators

Explosion-proof electric actuators are designed for industries where flammable substances may exist during production, storage, or transportation.

Oil and Gas Industry

Oil and gas facilities often handle combustible liquids and gases, making safety a critical requirement.

Explosion-proof actuators are commonly used for:

• Pipeline Flow Control

• Oil transfer systems

• Gas processing equipment

• Storage and transportation systems

Chemical Processing Industry

Chemical plants may contain volatile materials that require certified electrical equipment.

Explosion-proof electric actuators are commonly installed in:

• Chemical pipelines

• Reaction systems

• Storage tank control systems

Hazardous Industrial Facilities

Facilities with combustible dust, flammable gases, or explosive atmospheres require additional protection to ensure safe operation.

In these environments, using a standard actuator without proper certification may increase operational risks.

4. How to Choose the Right Electric Actuator?

Selecting the right Electric Valve Actuator requires evaluating both environmental conditions and valve operating requirements.

A suitable actuator should not only match the valve torque but also meet safety standards, control requirements, and long-term maintenance expectations.

1) Identify the Installation Environment

The first step is determining whether the installation location is a hazardous or non-hazardous area.

Before purchasing an actuator, consider:

• Are flammable gases or vapors present?

• Are combustible liquids or dust involved?

• Does the project require ATEX, IECEx, or other certifications?

• Is the actuator installed indoors or outdoors?

The enclosure protection level should always match the actual working environment.

2) Determine Valve Control Requirements

Different valves and operating processes require different actuator functions.

For simple opening and closing applications, electric actuators are commonly used for:

• Ball valve automation

• Butterfly valve automation

• Pipeline isolation applications

For applications requiring precise flow adjustment, actuators with modulating control functions are more suitable for:

• Control valve automation

• Globe valve automation

• Process flow adjustment

3) Check Technical Specifications

Before selecting a motorized valve actuator, buyers should confirm the following technical parameters:

4) Consider Long-Term Maintenance

The total cost of an actuator includes not only the initial purchase price but also installation, maintenance, and replacement costs.

Standard electric actuators usually provide:

• Lower purchase cost

• Simple maintenance procedures

• Easy replacement

Explosion-proof actuators require:

• Certified components

• Professional installation

• Careful maintenance to maintain safety certification

A reliable actuator selection should balance safety, performance, and total ownership cost.

For industrial buyers looking for different valve automation solutions, KONTE provides a range of Electric Actuators for applications including automated process control, pipeline systems, and industrial valve operation.

5. FAQ

Q1: What is the main difference between a standard electric actuator and an explosion-proof electric actuator?

The main difference is the enclosure design and application environment.

A standard electric actuator is designed for normal industrial areas, while an explosion-proof electric actuator is designed for hazardous locations where flammable gases, vapors, or dust may exist.

Q2: Can a standard electric actuator be used in oil and gas applications?

It depends on the specific installation area.

If the location is classified as a hazardous area, an explosion-proof actuator with suitable certification is generally required. The final selection should follow the site's safety classification requirements.

Q3: Are explosion-proof actuators stronger than standard electric actuators?

Not necessarily.

Explosion-proof actuators mainly improve safety through enclosure protection rather than providing higher torque or better mechanical performance.

Both actuator types can deliver reliable valve automation when properly selected according to application requirements.

Q4: What valves can use electric actuators?

Electric actuators are widely used with different industrial valves, including:

• Ball valves

• Butterfly valves

• Globe valves

• Other automated control valves

They support applications such as remote valve operation, automated process control, and pipeline flow control.

Q5: How do I choose a reliable electric actuator supplier?

When selecting an electric actuator supplier, consider:

• Product certification and compliance

• Technical support capability

• Industrial application experience

• Product range and customization ability

• After-sales service
