In industrial fluid control, traditional concentric and double eccentric butterfly valves often struggle to meet the demands of high-temperature and high-pressure conditions. With its unique structural optimization, the triple offset butterfly valve overcomes the limitations of sealing and durability, making it a core choice for high-end industrial applications.
1. Definition of Triple Offset Butterfly Valve
2. Triple Offset Structure
3. Advantages of Triple Offset Butterfly Valve
4. How to Distinguish Three Types of Butterfly Valves
5. Conclusion
6. FAQ
Keywords: Triple Offset Butterfly Valve, Metal Seated Butterfly Valve, Zero Leakage, Fluid Control
You can watch the following videos for a quick understanding:
https://youtube.com/shorts/z8bWaF5n3WI
https://youtube.com/shorts/9T2tpDhICKw

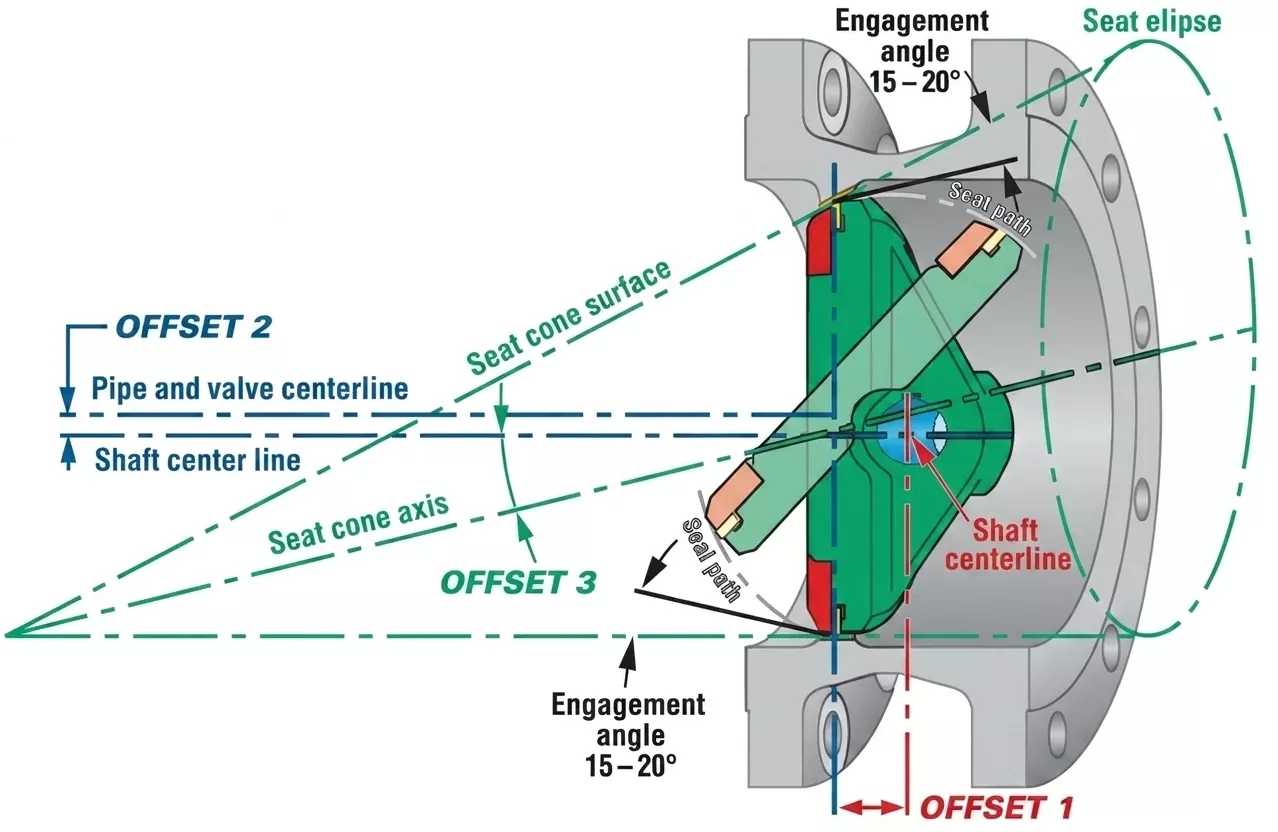

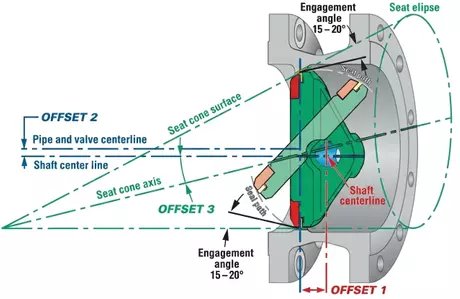

A triple offset butterfly valve is a further optimized design based on the double eccentric structure. The so-called “triple offset” refers to three different offsets introduced in the valve structure, allowing the disc and seat to have almost no frictional contact during opening and closing, thus achieving true “zero-wear sealing.”
1. First Offset: Shaft Offset from Sealing Surface Center
The valve stem (shaft) is not located at the centerline of the sealing surface but behind it. This allows the disc to quickly disengage from the seat during opening, reducing unnecessary friction.
The stem axis is slightly offset from the centerline of the pipeline. This design creates a cam effect during rotation, further optimizing the opening trajectory.
This is the key feature of the triple offset butterfly valve. The sealing surface is no longer cylindrical or spherical but a slanted conical shape. This structure ensures that the sealing surfaces only come into contact at the moment of closure. Like a door fitting into a frame, it seals by pressure rather than sliding friction.
True Zero Leakage: Achieves tight shut-off through geometric sealing rather than elastic deformation, enabling bubble-tight sealing even under high pressure.
Frictionless and Long Service Life: The triple offset design minimizes mechanical friction between the disc and seat, significantly extending service life and reducing maintenance costs.
Resistance to Extreme Conditions: With a metal seated structure, it can withstand temperatures from -29°C to over 600°C.
1) Appearance Identification
The three types can be initially distinguished by observing the position of the sealing ring and the edge shape of the disc:
| Valve Type | Sealing Ring Position | Disc Feature | Internal Structure |
|---|---|---|---|
| Concentric Butterfly Valve | On the seat (fully lined) | Symmetrical flat disc | Thick rubber/PTFE lining |
| Double Eccentric Butterfly Valve | On the body (gland fixed) | Solid metal with rounded edge | No lining, visible metal ring |
| Triple Offset Butterfly Valve | On the disc (bolt fixed) | Conical bevel with hex bolts | Seat usually machined into the body |

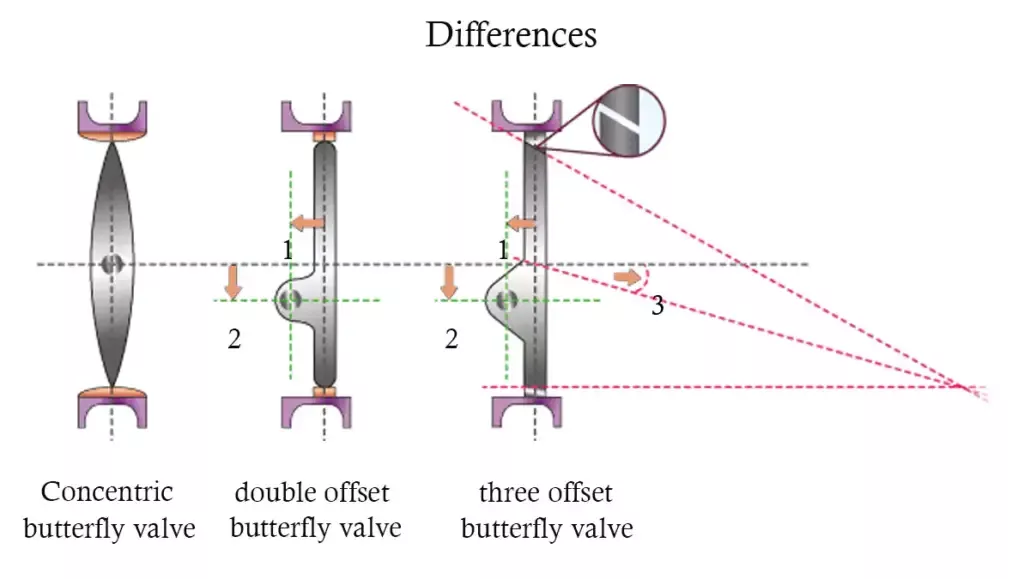

To fundamentally understand the performance differences, observe the geometric relationship between the stem, disc, and centerline:

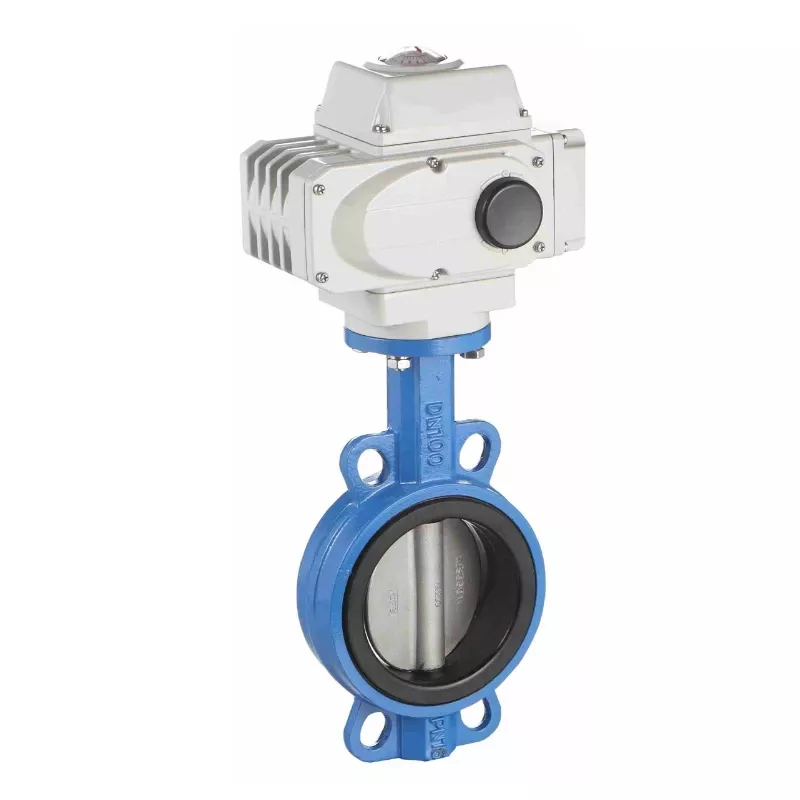

Concentric Butterfly Valve (Zero Offset): Stem, disc, and body centerlines coincide. Continuous contact leads to higher wear.

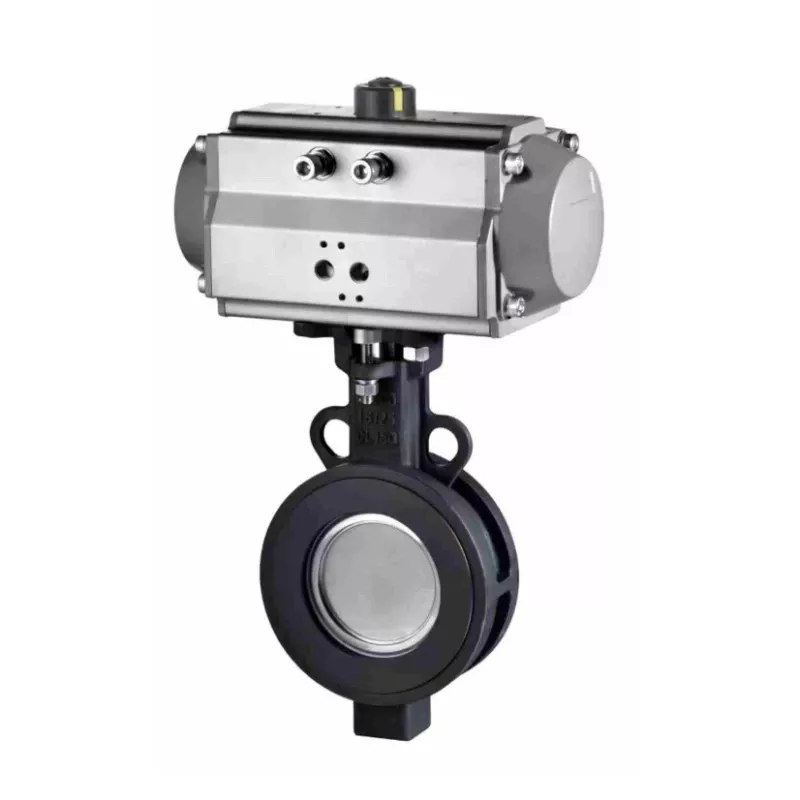

Double Eccentric Butterfly Valve (Two Offsets): Stem is offset from both disc and body centerlines. Separation occurs during opening, reducing wear.

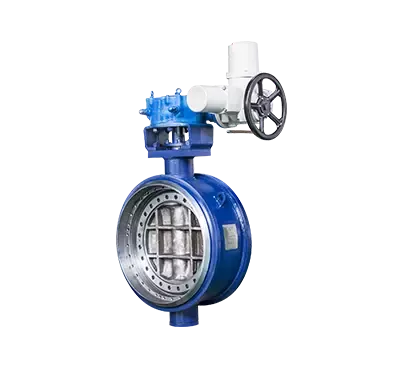

Triple Offset Butterfly Valve (Conical Offset): Adds a conical sealing surface to the double offset design. Almost zero friction throughout operation, with contact only at closure.
With its advanced conical sealing structure, the triple offset butterfly valve overcomes the performance limitations of traditional butterfly valves under high-temperature and high-pressure conditions. By achieving both zero friction and zero leakage, it reduces maintenance and downtime costs over long-term operation. Properly distinguishing its structural and appearance differences from concentric and double eccentric valves is essential for ensuring safe and efficient pipeline system performance.
1. Can a triple offset butterfly valve achieve bidirectional sealing?
Yes. Although it has a preferred pressure direction, high-performance designs can achieve excellent bidirectional sealing.
2. Why is a triple offset butterfly valve more expensive than a concentric valve?
Due to higher manufacturing costs. It requires complex conical surface machining and high-performance alloy materials, offering superior durability and stability in harsh conditions.
3. What industries are triple offset butterfly valves used in?
They are widely used in oil & gas, petrochemical, power plants, metallurgy, and district heating systems.
4. How to determine if the sealing ring needs replacement?
Check for leakage during closure, and inspect the tightness of the hex bolts and wear marks on the multilayer sealing ring.
