Ball valve sealing structure directly affects sealing performance, operating temperature, service life, and media compatibility. Soft seated and metal seated ball valves have different sealing materials, performance characteristics, and suitable applications.
This article compares soft seats and metal seats in terms of structure, sealing performance, temperature range, applications, and selection to help you choose the right ball valve for your pipeline conditions.
What Is a Ball Valve Sealing Structure?
What Is a Soft Seated Ball Valve?
What Is a Metal Seated Ball Valve?
Soft Seat vs Metal Seat: Key Differences
How to Choose the Right Sealing Structure
Conclusion: Soft Seat or Metal Seat?
FAQ
Core Keywords: Ball Valve, Soft Seated Ball Valve, Metal Seated Ball Valve, Trunnion Mounted Ball Valve,Floating Ball Valve,High Temperature Ball Valve

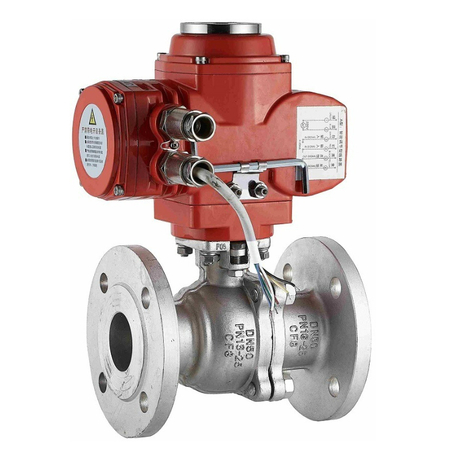

A ball valve uses a spherical closure element with a central bore to control the flow of liquid, gas, steam, or other process media. When the bore is aligned with the pipeline, the valve is open. When the ball rotates 90 degrees, the solid side blocks the passage and stops the flow.
The sealing structure is formed by the contact between the ball and the valve seat. It usually includes the ball, seat ring, seat carrier, sealing surface, stem packing, and pressure-support components. These parts work together to prevent the medium from passing through the valve when it is closed.
The quality of the seal depends on several operating factors:
Seat material
Ball and seat surface finish
Contact pressure
Pipeline pressure
Operating temperature
Chemical compatibility
Presence of solid particles
Operating frequency
Ball valves are generally divided into different structural types according to how the ball is supported. A Floating Ball Valve is not fixed by a lower trunnion. Instead, the ball moves slightly under line pressure and is pressed against the downstream seat. This design is commonly used in small- to medium-size pipelines because of its relatively simple construction and compact size.
A Trunnion Mounted Ball Valve has a fixed ball supported by upper and lower trunnions. The seats move toward the ball to create the sealing force. This design reduces operating torque and provides stable operation in larger or higher-pressure pipelines. It is widely used for oil and gas transmission, long-distance pipelines, and petrochemical systems.
The sealing material and ball support structure are separate design considerations. For example, a trunnion-mounted valve may be supplied with either soft or metal seats according to the pressure, temperature, and medium requirements. Buyers can review different Ball Valve designs according to pipeline size, pressure class, actuation method, and application.
A Soft Seated Ball Valve uses a non-metallic seat to create a tight seal against the ball. Common seat materials include PTFE, reinforced PTFE, PEEK, and other engineered polymers. The correct material depends on the temperature, pressure, chemical composition, and cleanliness of the process medium.
Soft seats can deform slightly under pressure. This allows the seat to conform closely to the ball surface and compensate for small irregularities. As a result, a soft seated ball valve can provide very low leakage and reliable shut-off in suitable operating conditions.
The main advantages of soft seats include:
Excellent shut-off performance
Low operating torque
Smooth operation
Good compatibility with many clean fluids
Relatively low maintenance cost
Reduced risk of damage to the ball surface
Soft seated ball valves are widely used in water treatment, natural gas, general chemical processing, and HVAC systems. They are a practical option for clean water, air, natural gas, mild chemicals, and other media that do not contain large amounts of abrasive solids.
A soft seat is especially useful when the system requires strong isolation performance. For example, gas pipelines and water treatment systems may place greater importance on preventing leakage than on resisting extreme temperature or severe abrasion.
However, soft seats also have limitations. Excessive heat can cause a polymer seat to soften, deform, creep, or lose its sealing force. Certain chemicals may also attack the seat material. Hard particles can become trapped between the ball and seat, causing scratches, leakage, or accelerated wear.

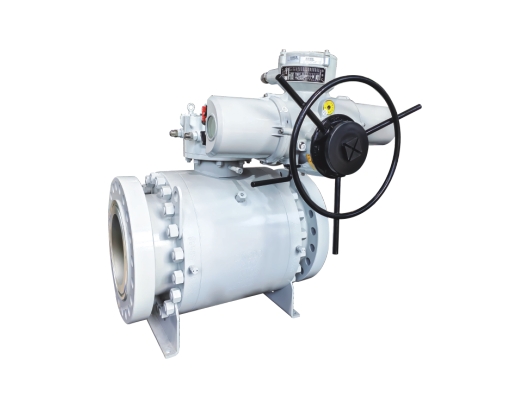

For larger pipelines, soft sealing may be combined with a trunnion-mounted structure. This Soft Seated Ball Valve product is a gear-operated trunnion-mounted design that can be configured with different seat structures, including soft and metal sealing options.
It is important to understand that “soft seated” describes the seat material, while “floating” and “trunnion mounted” describe the ball support structure. A valve can therefore be both trunnion mounted and soft seated.

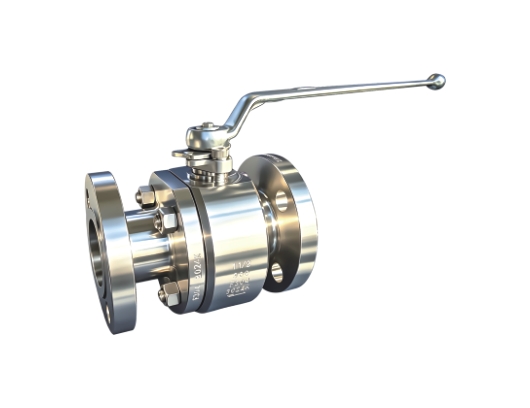

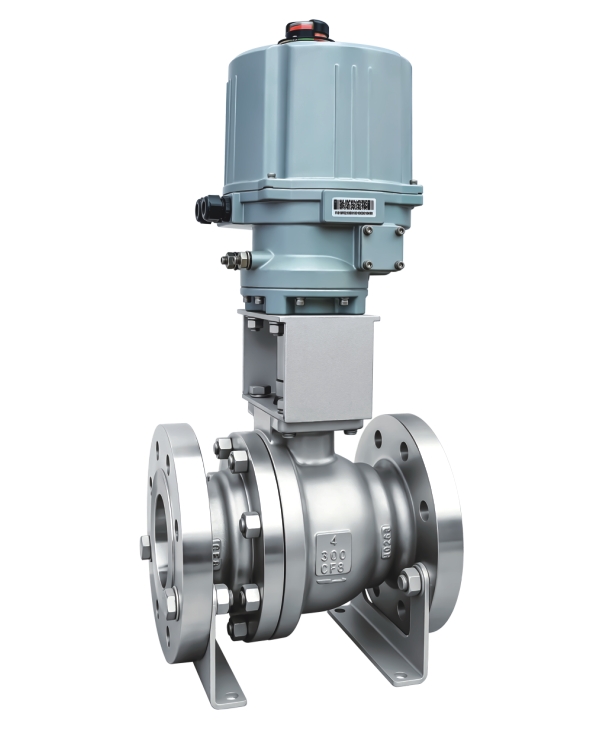

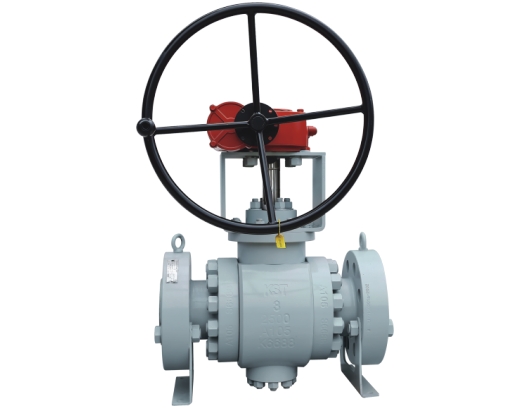

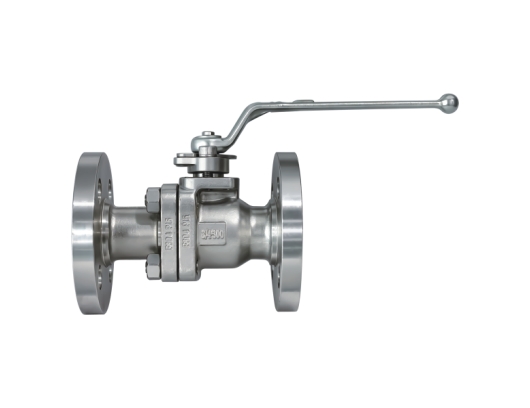

A Metal Seated Ball Valve uses metal-to-metal contact between the ball and the seat. The sealing surfaces may be manufactured from stainless steel, hard alloy, Stellite, nickel-based alloy, or other wear-resistant materials.
To improve performance, the ball and seat may receive additional surface treatments, such as:
Stellite overlay
Nickel alloy overlay
Tungsten carbide coating
Chromium carbide coating
Nitriding or other hardening processes
Precision grinding and lapping
These treatments improve hardness, wear resistance, erosion resistance, and high-temperature stability.
Metal seated ball valves are selected for conditions where polymer seats may deteriorate. Typical applications include the petrochemical, power, and coal chemical industries. They are also used in metallurgy, mining, thermal power, slurry handling, and other severe industrial services.
A metal seat is suitable for media containing:
Abrasive particles
Fibers
Powder
Slurry
Catalyst particles
High-temperature process fluids
Viscous or contaminated media
Compared with a standard isolation ball valve, a V-shaped metal seated ball valve may also support flow regulation. This Metal Seated Ball Valve uses a V-shaped ball design that provides shearing force during closing and can help control media containing fibers or fine solid particles.
Metal seated valves are also often used as a High Temperature Ball Valve for steam, hot oil, thermal fluids, and other high-temperature industrial pipeline services. However, the maximum temperature is not determined by the seat alone. The valve body, stem packing, gaskets, coatings, actuator, and thermal expansion characteristics must also be considered.
Metal seats generally provide better resistance to heat, erosion, and mechanical wear. However, they may require more precise machining and higher operating torque. They may also have a different allowable leakage rate from soft seated valves. Therefore, the required leakage class should always be specified when selecting a metal seated design.
| Comparison Factor | Soft Seated Ball Valve | Metal Seated Ball Valve |
|---|---|---|
| Seat Material | PTFE, reinforced PTFE, PEEK, and other polymers | Stainless steel, hard alloy, Stellite, carbide, or nickel-based alloy |
| Shut-Off Performance | Generally provides very tight shut-off in suitable service | Depends on machining accuracy, contact pressure, surface finish, and testing standard |
| Temperature Capability | Limited by the selected polymer and operating conditions | Better suited to high-temperature and severe thermal service |
| Media Condition | Best for clean liquids and gases | Suitable for abrasive, particle-containing, viscous, or contaminated media |
| Wear Resistance | May be damaged by hard particles or frequent throttling | Better resistance to erosion, abrasion, and mechanical wear |
| Operating Torque | Usually lower | Often higher because of metal-to-metal contact |
| Flow Regulation | Mainly used for on-off isolation | Suitable V-ball designs can support throttling and flow control |
| Typical Applications | Water treatment, natural gas, HVAC, and general chemical processing | Petrochemical, power, coal chemical, metallurgy, and severe service |
| Maintenance | Seat replacement is often relatively simple | May require precision lapping, coating repair, or replacement of hardened parts |
| Main Advantage | Tight sealing and low operating torque | High durability under temperature, abrasion, and severe operating conditions |
The key difference is that soft seats prioritize tight shut-off and easy operation, while metal seats prioritize resistance to temperature, erosion, and mechanical wear.
Neither option is universally better. A soft seat may provide excellent performance in clean water service but fail prematurely in an abrasive slurry. A metal seat may survive severe service but be unnecessary for a clean, low-temperature HVAC system.
The sealing structure should be selected based on the complete operating condition rather than one parameter alone.
Start with the process medium. Clean water, air, natural gas, and compatible chemicals are often suitable for soft seated valves. If the medium contains sand, catalyst particles, fibers, powder, scale, or other abrasive materials, a metal seated design may be more suitable.
Check the operating temperature. Consider not only the normal temperature but also startup, shutdown, cleaning, steam-out, and possible abnormal conditions. If the process temperature may exceed the reliable operating range of the polymer, choose a metal seat or a higher-temperature seat material after technical confirmation.
Review the pressure and pressure differential. The valve must be suitable for the normal pressure, design pressure, pressure class, and maximum differential pressure. Larger pipelines and high-pressure systems may benefit from a trunnion-mounted structure because it reduces ball movement and operating torque.
Define the required leakage rate. If the pipeline requires bubble-tight isolation, a soft seated design may be preferred when the temperature and medium allow it. For high-temperature or abrasive service, the system may use a metal seat with a specified leakage class.
Consider whether the valve is for isolation or regulation. Most standard ball valves are designed primarily for on-off service. If continuous throttling is required, a V-ball or another control-oriented design should be considered. Using a conventional ball valve in a partially open position may increase turbulence, vibration, and seat wear.
Evaluate operating frequency. A valve that cycles frequently needs suitable seat loading, surface treatment, stem packing, and actuator sizing. A rarely operated emergency isolation valve may have different design priorities.
Confirm the body and auxiliary materials. The valve body, stem, packing, gaskets, coatings, and actuator must all be compatible with the same temperature and medium. A high-temperature seat alone does not make the entire assembly suitable for high-temperature service.
Before ordering, provide the supplier with:
Medium name and composition
Operating and design pressure
Normal and maximum temperature
Valve size and pressure class
Particle content and particle hardness
Required leakage class
Operating frequency
Isolation or throttling duty
Actuation method
Fire-safe or anti-static requirements
Double block and bleed requirements, if applicable
This information allows the manufacturer to select the appropriate seat material, ball support structure, surface treatment, body material, and actuator torque as a complete system.
Choose a Soft Seated Ball Valve when the medium is relatively clean and the main priorities are tight shut-off, low operating torque, and economical operation. It is commonly suitable for water treatment, natural gas, HVAC, and general chemical processing.
Choose a Metal Seated Ball Valve when the application involves high temperature, abrasive particles, frequent throttling, viscous media, or severe operating conditions. It is generally more appropriate for petrochemical, power, coal chemical, and other demanding industrial services.
The final decision should consider the medium, temperature, pressure, leakage requirement, operating frequency, valve size, and ball support structure together. The right sealing structure is the one that matches the complete operating environment, not simply the one with the highest temperature rating or the lowest initial cost.
Soft seated ball valves are generally not the first choice for steam, hot oil, or other high-temperature media because polymer seats may soften, deform, or lose their sealing performance. A metal seated ball valve is usually more suitable, but the valve body, packing, gasket, coating, and actuator must also be checked for temperature compatibility.
Not always. The leakage performance of a metal seated ball valve depends on the machining accuracy, ball and seat surface finish, contact pressure, and testing standard. If a specific leakage rate is required, the required leakage class should be confirmed before ordering.
Soft seated ball valves are generally unsuitable for media containing abrasive particles, sand, powder, or slurry because hard particles may damage the polymer seat and cause leakage. Metal seated designs, especially suitable V-shaped ball valves, are usually more appropriate for abrasive or particle-containing media.
A floating ball valve is supported mainly by the valve seats and moves slightly under pipeline pressure. A trunnion mounted ball valve has a fixed ball supported by upper and lower trunnions, which helps reduce operating torque and provides more stable operation in larger or higher-pressure pipelines. Either design can be configured with soft or metal seats.
The selection should consider the medium, operating and design pressure, normal and maximum temperature, particle content, required leakage rate, operating frequency, valve size, pressure class, and whether the valve is used for isolation or throttling. Providing this information helps the manufacturer recommend the correct seat material and valve structure.
