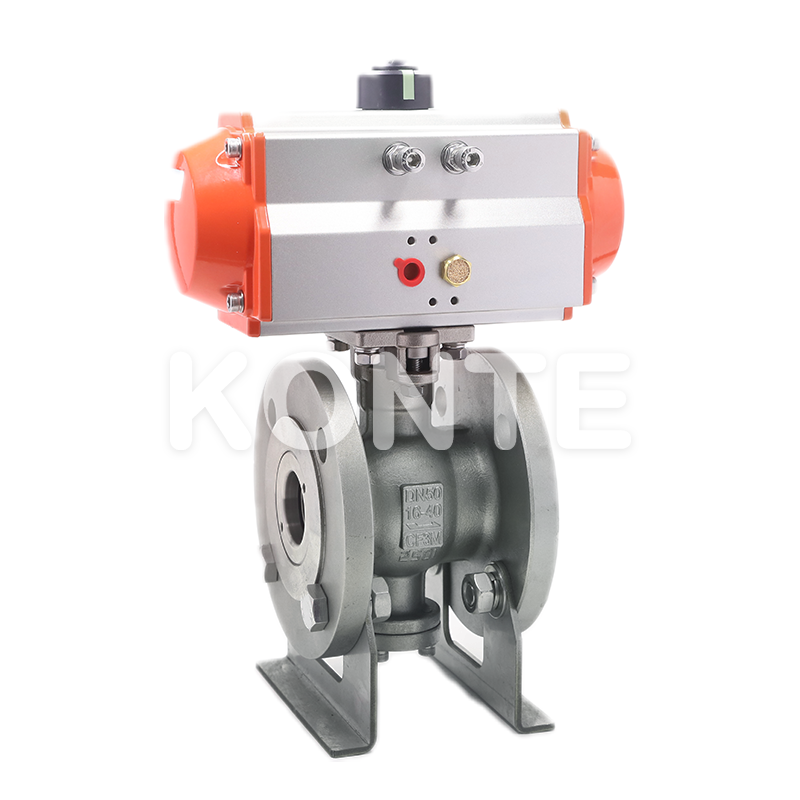

Product Features
▶ The V-shaped notch has a sharp edge, providing shearing force during the closing stroke, making it suitable for viscous media like pulp and slurry.
▶ It can also be used for throttling control. The ball and the V-shaped notch form a sectorial flow channel, allowing precise flow adjustment.
▶ The sealing surface can be treated with various hardening processes such as HCr+Stellite, Ni60/Ni55 overlays, HVOF sprayed WC (carbide) or CrC (chromium carbide), which significantly improves wear resistance.
▶ The spring-loaded seal design ensures a reliable seal with pre-tightening and compensation capabilities.
▶ The valve seat is designed with a floating structure and built-in spring, providing consistent sealing performance and preventing particle accumulation.
Technical Parameters
| Description | Details |
| Nominal Diameter | DN25~250 |
| Pressure Rating | PN10~25, 150Lb, 10K |
| Main Body Material | WCB, CF8, CF8M, CF3M |
| Main Sealing Type | Metal-to-Metal Hard Seal |
| Sealing Surface Material | Hard alloy, Stellite overlay, carbide coating, Cr-based alloy coating, Stellite coating |
| Flange Standard | GB/T 9113, HG/T 20592, HG/T 20615, ASME B 16.5, EN1092, JIS B220:2004 |
| Operating Temperature Range | -29°C ~ +220°C |
| Leakage Class | GB/T 4213, FCI 70-2 VI Class, V-Class |
| Optional Accessories | Electric positioner, solenoid valve, limit switch, air filter regulator |
| Actuation Mode | Manual, Pneumatic, Electric |
