Overview:

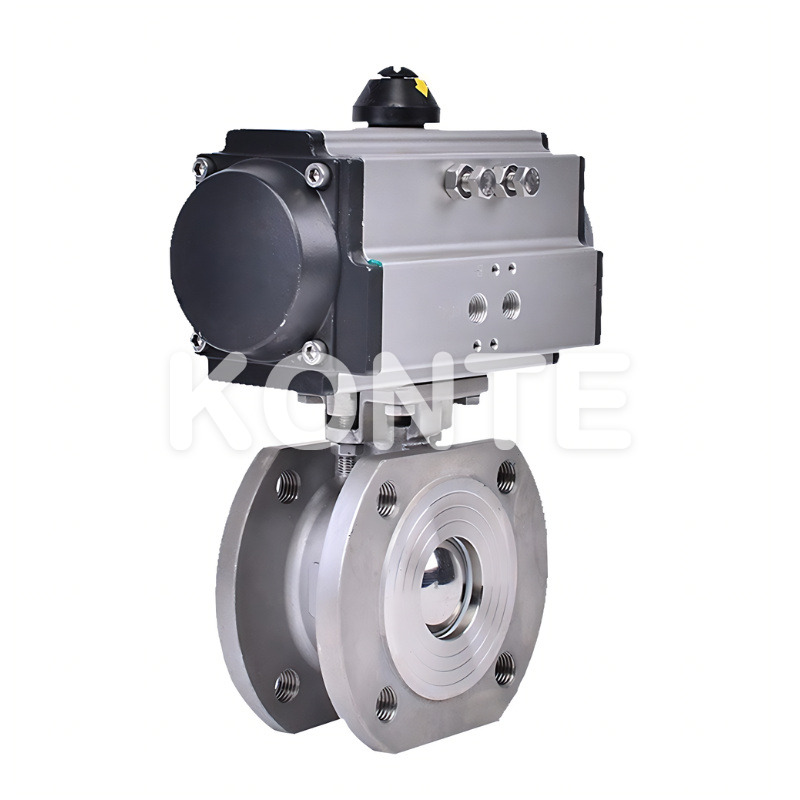

Pneumatic Wafer-Type Ball Valve adopts advanced Italian technology and is a newly developed generation of ultra-thin ball valves. It features minimal flow resistance, compact structure, lightweight body, and convenient installation. With minimal resistance to fluid flow and shorter valve body length than conventional ball valves, this product is suitable for various pipelines in industries such as chemical, petroleum, metallurgy, pharmaceuticals, food, and power. It enables automated shut-off or regulation of media.
Product Features:
Integrated valve body without pipe fittings avoids leakage and pressure drop; no pipe connections at the valve body, ensuring the PTFE seat is not affected by deformation.
Minimal flow resistance and small pressure drop due to short flow path.
Shorter valve length than conventional ball valves; suitable for installations requiring multiple valves on the same pipeline.
Technical Specifications:
| Item | Specification |
| Nominal Diameter | DN15–DN150 |
| Nominal Pressure | PN1.6, 2.5MPa |
| Valve Body Material | Stainless Steel |
| Valve Core Material | 304/316/316L Stainless Steel |
| Valve Seat Material | PTFE, PPL |
| Seat Temperature Limit | PTFE ≤150°C, PPL ≤300°C |
| Applicable Medium | Water, Oil, Gas, Acid/Alkali Corrosive Media, Slurry, etc. |
| Features | Compact structure, lightweight, corrosion-resistant, easy installation |
