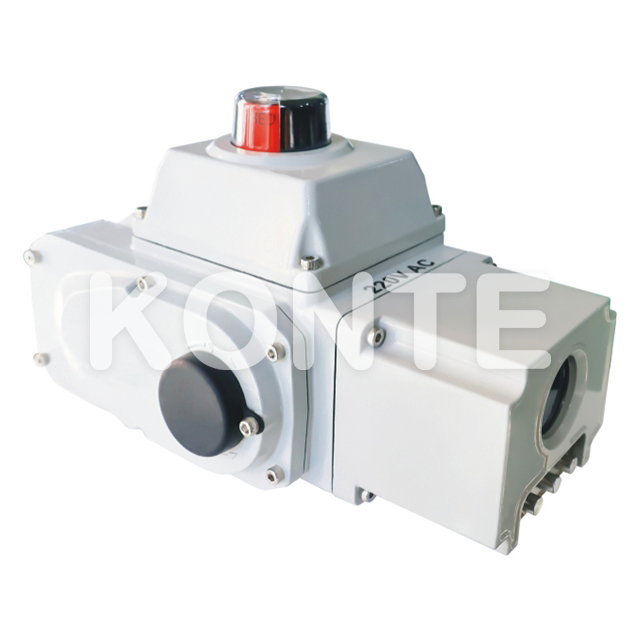

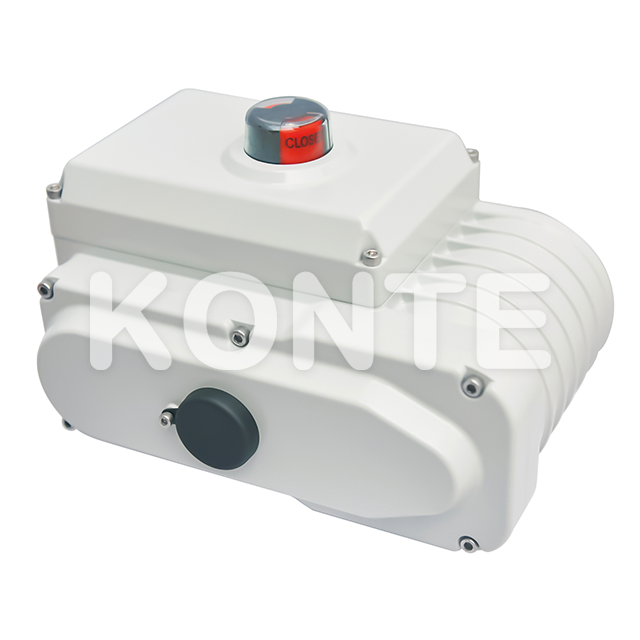

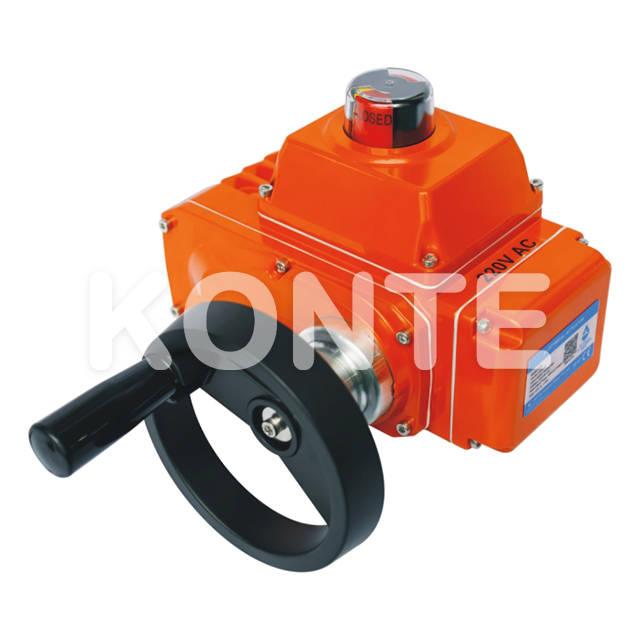

Description
• Execution standard: JB/T 8219-2016 (Ordinary and Intelligent Electric actuators for Industrial Process Control Systems);
• Function types: Opening signal type R, passive ON/OFF type BS, regulating type A, non-invasive intelligent type, 2T, 2K;
• Exquisite and durable:
①The box is made of integral aluminum alloy die-casting, with exquisite appearance and compact structure;
②H-class asynchronous motor, with stable performance and strong power;
③High precision alloy gears, multiple heat treatment processes, good wear resistance;
④High strength copper alloy worm gear, with high strength and good wear resistance;
⑤Integrated design of output shaft, eliminating adapter clearance, high precision, and good strength.
• Rich configuration: Can use AC220V, AC 380V AC power supply, DC 24V, DC 220V DC power supply, special voltage can be customized;
• Easy to use: No refueling, no inspection, waterproof and rust proof, can be installed at any angle;
• Protection device: All products in the series are equipped with electronic and mechanical dual limit devices to prevent overtravel;
• Adopting a worm gear structure with self-locking function, it is safe and reliable;
• Control mode: Switching signal, 4-20mA current signal, 0-10VDC voltage signal can be selected as the control signal to Series of KST Smart type electric actuator meet various on-site control requirements;
• Torque range: 50--1000N. m;
• Multiple speeds: Full travel time of 9 seconds, 13 seconds, 15 seconds, 30 seconds, 50 seconds, 100 seconds (set before leaving the factory);
• Intelligent CNC: The intelligent control module is highly integrated into the electric device body and can be externally connected to a locator when needed. Digital setting, digital tuning, highly accurate, self-diagnosis, multifunctional for one machine.
Dimensions And Performance Parameters

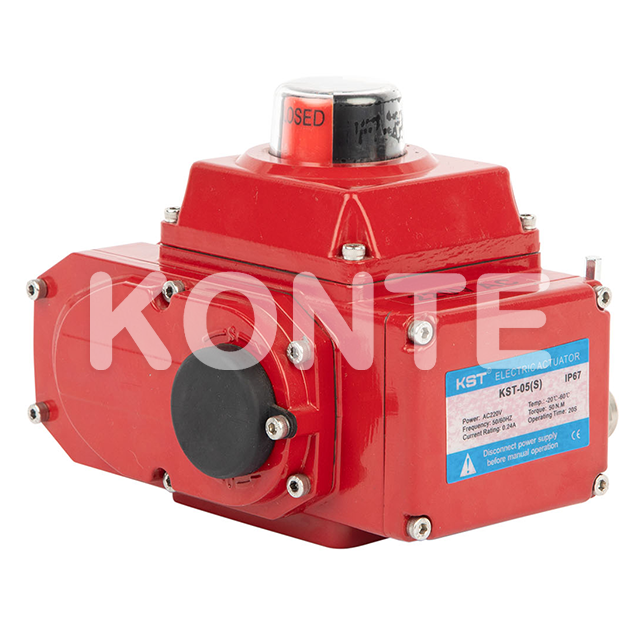

KST-05 Performance Parameter
| Model | KST- 05 | |||||||||
| power Supply | DC24V | AC24V | AC110V | AC220V | AC380V | |||||
| output Torque | 15Nm | 10S: 20Nm 20S: 50Nm | ||||||||
| 90° Action Time | 8S | 28S | ||||||||
| Range Of Rotation Angle |  0~90° | |||||||||
| Power | 12W | 10W | ||||||||
| Rated Current | 1.00A | 2.20A | 0.36A | 0.20A | 0.15A | |||||
| overall Weight | 2.3kg | 2.7kg | ||||||||
| Insulation Resistance | DC24V/AC24V: 100MQ/250VAC AC110/AC220V/AC380V: 100MΩ/500VAC | |||||||||
| Voltage Resistance Level | DC24V: 500VAC(1min) , AC110/220V: 1500VAC(1min) , AC380V: 1800VAC(1min) | |||||||||
| protection Grade | IP67 | |||||||||
| Installation Position | 360° installation at any angle | |||||||||
| Electrical Interface | M18x 1.5 one waterproofcable connector, one powercord, and one signal cord each | |||||||||
| Ambient Temperature | -25℃~60℃ | |||||||||
| Circuit Control | B, S, BS, R, A, ZT, ZK(type) | |||||||||
| Optional Feature | Damp Heater | |||||||||
