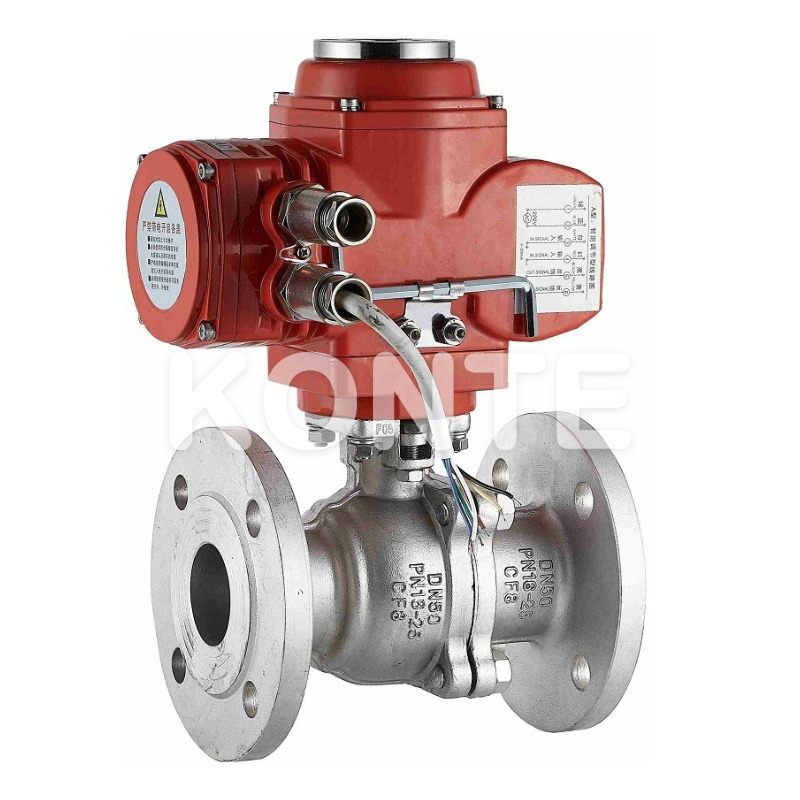

The Electric German Standard Flange Ball Valve is an industrial quarter-turn valve built to DIN flange standards. It pairs a full-bore ball valve body with an electric actuator to enable automated, remotely operated flow control in process piping systems.
The valve covers nominal diameters from DN15 to DN200 and pressure classes of PN16, PN25, and PN40. The body is produced using a silicon-soluble casting process. The seat material is Japanese Gold PTFE (M111), which maintains sealing integrity across a wide temperature range and is rated for vacuum service.
KONTE is an established electric flange ball valve manufacturer and exporter with over 10 years of international trade experience. Our group-level manufacturing base covers 100,000+ m² of workshop space with 500+ CNC machines and an annual output exceeding one million units. Products are exported to 60+ countries across oil & gas, chemical, power, water treatment, and other sectors.
| Item | Specification |
|---|---|
| Nominal Diameter | DN15 – DN200 |
| Nominal Pressure | PN16, PN25, PN40 |
▶ Fire Resistance and Anti-Static Function
The valve incorporates a fire-safe body construction and an anti-static discharge path. This satisfies API 607 / ISO 10497 requirements for valves installed in flammable or explosive pipeline environments.
▶ Anti-Blowout Stem Design
The stem is retained internally to prevent ejection under line pressure. This is a required safety feature for high-pressure service per international valve safety standards.
▶ Silicon-Soluble Casting Process
The valve shell is manufactured using a silicon-soluble casting method. This produces a dense grain structure, consistent dimensional tolerances, and a clean surface finish across production batches.
▶ Electric and Pneumatic Actuator Options
The valve accepts both electric actuators and cylinder piston (pneumatic) actuators. Selection depends on the control system architecture, available power supply, and required response speed.
▶ Low Fluid Resistance
The full-bore design maintains a resistance coefficient equivalent to the same pipe length. Pressure drop across the valve is minimal under standard operating flow rates.
▶ Compact and Lightweight Structure
The valve uses a streamlined body geometry. This reduces installed weight and space requirements, simplifying integration in compact piping layouts.
▶ Japanese Gold PTFE (M111) Seat
M111-grade PTFE provides consistent sealing across a wide temperature range. It has been verified for use in vacuum piping systems and is chemically inert to most process media.
▶ 90° Quarter-Turn Operation
Full open to full close requires only a 90° rotation. This supports fast on/off switching and direct integration with electric actuators for remote and automated control.
▶ Easy Maintenance
The sealing rings are designed for in-line disassembly and replacement without removing the valve from the pipeline. This reduces maintenance downtime and lowers spare parts inventory requirements.
▶ Media Isolation at Full Open / Full Closed
When fully open or fully closed, the seat isolates the ball surface from direct media contact. This prevents erosion of the sealing surfaces during flow service, extending the service interval.
The valve flange face conforms to DIN EN 1092-1 dimensional standards with PN pressure class drilling. This ensures bolt-up compatibility with existing German standard piping components without adapter flanges or pipe modifications.
The electric actuator mounts to the valve stem via a standard ISO 5211 interface pad. This allows direct interchange with electric actuators from multiple manufacturers across the same torque class range. Limit switches, 4–20 mA analog positioners, and NAMUR-interface options are available depending on the actuator model selected.
The M111 PTFE seat material is chemically resistant to water, steam, mineral oils, dilute acids, dilute alkalis, and neutral gases. This covers the majority of fluid types encountered in industrial process service at the rated pressure and temperature conditions.
For fire-safe procurement requirements, the valve body design addresses the structural retention criteria of API 607 for soft-seated ball valves. Documentation for relevant certifications is available upon request.
The electric German standard flanged ball valve is used for isolation and on/off control duties across the following sectors.
Oil & Gas
Fire-safe construction and anti-static function qualify the valve for hydrocarbon pipelines, tank farm manifolds, and refinery process units. It covers both upstream wellhead service and downstream product distribution piping.
Chemical Processing
The PTFE seat is resistant to a wide range of corrosive media. PN25 and PN40 ratings support elevated-pressure reactor piping, chemical transfer lines, and solvent handling systems.
Power Generation
Electric actuated ball valves are used on cooling water circuits, fuel supply headers, and turbine auxiliary systems. Fast 90° switching supports automated interlocking in both thermal and hydroelectric plant control loops.
Water Treatment
DN15–DN200 covers the common pipe sizes in municipal water supply, wastewater treatment, and industrial water purification. Electric actuation supports remote operation from SCADA or DCS systems without on-site manual intervention.
HVAC and Building Services
German standard flange connections are standard in European and DIN-compliant building services installations. The electric actuator enables zone-level flow control in large commercial and district heating systems.
KONTE is a wholesale electric flanged ball valve supplier, OEM factory, and global exporter backed by Kangsaite Automation Group, with 30+ years of group manufacturing history across Wenzhou, Jiangsu, and Beijing production bases.
We serve distributors, brand owners, EPC contractors, importers, and OEM manufacturers across 800+ active global partnerships in the USA, Germany, UK, Spain, Malaysia, Australia, Russia, Brazil, and 10+ additional markets.
Custom OEM/ODM Orders
Custom configurations are accepted: special PN pressure classes, body materials (carbon steel, stainless steel, duplex alloy), alternative seat materials, actuator brand preferences, and bespoke flange drilling patterns for ANSI/ASME or JIS standards. Private-label documentation and product markings are available for brand owner programs.
Quality Assurance
Every valve is tested per API 598 and EN 12266 before shipment. Inspection photos and test data records are retained for each production batch. Warranty terms are 12 months from shipment or 18 months from installation date.
Stock and Delivery
KONTE operates 15 overseas warehouses in the USA, Spain, Malaysia, Australia, Brazil, Turkey, Russia, and Thailand. Local stock reduces international shipping delays and avoids customs holding costs for buyers in these regions.
Q1: What does "German Standard" mean for a flange ball valve?
It refers to DIN (Deutsches Institut für Normung) standards. German standard flanged ball valves conform to DIN EN 1092-1 flange face dimensions and PN pressure ratings. These are the dominant flange standards in European process plants and are widely accepted in international projects specifying DIN-compliant components.
Q2: What is the difference between PN16, PN25, and PN40?
PN indicates the rated working pressure in bar at 20°C. PN16 handles up to 16 bar, PN25 up to 25 bar, and PN40 up to 40 bar. The correct pressure class is selected based on the maximum operating pressure and temperature of the specific pipeline.
Q3: Can this valve be used in vacuum service?
Yes. The Japanese Gold PTFE (M111) seat material is suitable for vacuum piping. It provides stable sealing performance at sub-atmospheric pressure conditions, making the valve applicable in chemical distillation and laboratory process vacuum lines.
Q4: What actuator interface standard does this valve use?
The actuator mounting flange follows the ISO 5211 standard. This allows compatibility with a wide range of electric actuators from standard manufacturers, using the appropriate F-class mounting and drive key dimensions for the valve size and torque requirement.
Q5: Is fire-safe certification available?
The valve design addresses API 607 fire-safe structural requirements for soft-seated ball valves. Specific test certificates and third-party documentation can be discussed during the quotation stage. KONTE also holds ISO 9001, CE, and other relevant certifications.
Q6: Does KONTE support OEM and private-label programs?
Yes. We support OEM/ODM production for distributors and brand owners, including custom valve body markings, documentation packages, and modified design specifications. Wholesale bulk supply is available with flexible MOQ for regular procurement contracts.
