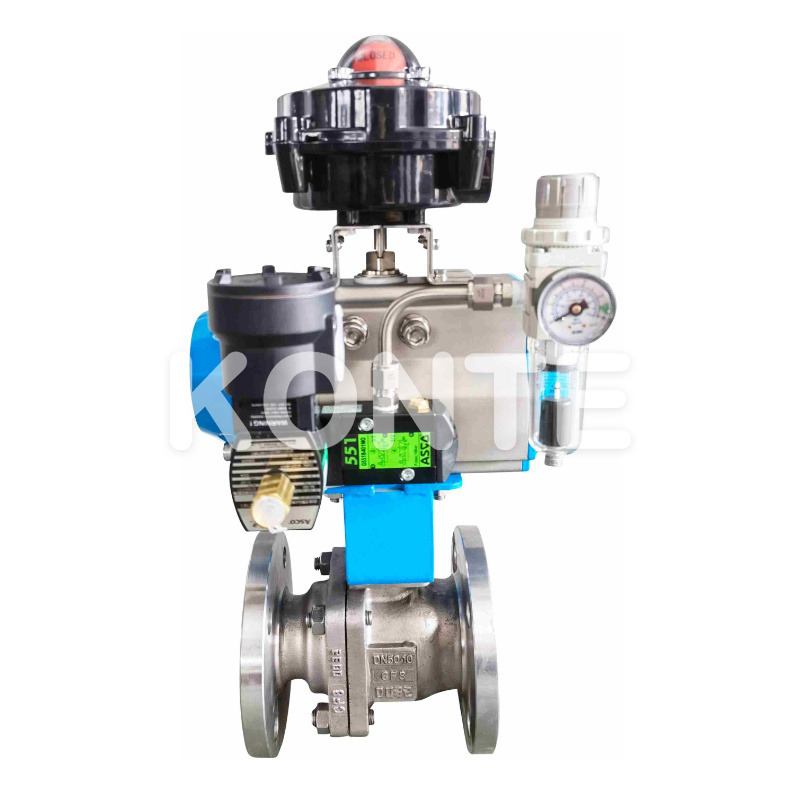

The Pneumatic National Standard Flange Ball Valve is a quarter-turn automated isolation valve designed for pipeline systems built to GB (Guobiao) flange connection standards. It combines a full-bore ball valve body with a cylinder piston pneumatic actuator to deliver fast, reliable on/off flow control in automated process piping.
The valve covers nominal diameters from DN15 to DN200 and supports pressure ratings from PN16 to PN40. The body is produced through a silicon-soluble investment casting process. The seat is manufactured from Japanese Gold PTFE (M111), providing consistent sealing performance across a wide operating range, including vacuum service conditions.
Pneumatic actuation eliminates the need for electrical wiring at the valve location. This makes the valve the standard selection for hazardous area classified installations, high-cycle automated production lines, and remote field locations where electrical supply is limited or restricted. In automated process environments, the compressed-air cylinder piston actuator provides fast stroke speed, repeatable positioning, and fail-safe capability through spring-return configurations.
KONTE is a professional pneumatic GB standard flanged ball valve manufacturer, supplier, and exporter based in Wenzhou, China. Our group-level manufacturing infrastructure spans 100,000+ m² of workshop space with 500+ CNC machines and produces over one million valve units annually.
| Item | Specification |
|---|---|
| Nominal Diameter | DN15 – DN200 |
| Nominal Pressure | PN16 – PN40 |
Custom configurations including extended diameter ranges, alternate body materials, and modified actuator torque classes are available on request.
The pneumatic cylinder piston actuator operates on compressed air at a standard supply pressure of 4–7 bar (60–100 psi). The cylinder converts linear air pressure force into rotary torque at the valve stem, completing a 90° stroke between fully open and fully closed positions.
Single-Acting (Spring Return) Air pressure drives one stroke. A mechanical spring provides the return stroke. When compressed air supply is interrupted, the spring moves the valve to the preset fail-safe position — either fail-open or fail-close. This is the required configuration for emergency shutdown (ESD) valve duty and process safety interlocks.
Double-Acting Compressed air drives both strokes. This configuration provides higher torque output and faster cycle times, suitable for larger valve sizes and high-frequency switching applications where no fail-safe return is required.
The actuator attaches to the valve stem via a standard interface. Optional accessories include solenoid valves, limit switch boxes, air filter-regulators (AFR), manual overrides, and positioners. These accessories complete the full pneumatic control assembly for integration into DCS or PLC-based automation systems.
Pneumatic actuation is the preferred choice over electric actuation in ATEX Zone 1 and Zone 2 hazardous area installations. No electrical power is required at the valve body. When paired with ATEX-certified solenoid valves and limit switch components, the complete assembly meets explosion-proof area specifications.
▶ Fire Resistance and Anti-Static Function
The valve body incorporates fire-safe structural design to limit seat damage under fire conditions. An anti-static discharge path connects the ball and stem to the body, preventing electrostatic charge buildup. These features are mandatory for hydrocarbon pipeline and solvent handling service.
▶ Anti-Blowout Stem Construction
The stem is retained internally by mechanical design. It cannot be ejected by line pressure during operation or when packing is loosened for maintenance. This is a baseline safety requirement under international valve construction standards.
▶ Silicon-Soluble Investment Casting Process
The valve body is cast using the silicon-soluble (lost-wax) process. This method produces dense, uniform grain structure and accurate dimensional tolerances across production batches. Internal surfaces have low roughness, which reduces flow turbulence and cavity erosion.
▶ Cylinder Piston Actuator — Standard Configuration
The cylinder piston pneumatic actuator is factory-fitted as the standard actuation type. The actuator module is designed for field-level replacement or torque class upgrade without removing the valve from the line.
▶ Low Fluid Resistance
The full-bore ball maintains a flow resistance coefficient equivalent to a straight pipe section of the same nominal diameter. This minimizes pressure loss across the valve and reduces operational load on the pumping system.
▶ Compact Body Profile
Valve dimensions are sized for direct in-line installation within standard pipe centre spacing. Compact overall length reduces structural support requirements and simplifies valve pit or skid design.
▶ Japanese Gold PTFE (M111) Seat
M111-grade PTFE resists creep under cyclic compressive load, maintains dimensional stability across temperature cycles, and is chemically inert to most water, gas, and process chemical media. The seat material is rated for vacuum piping service.
▶ 90° Quarter-Turn Stroke
Full travel from open to closed requires only 90° of stem rotation. The short stroke reduces per-cycle actuator wear and supports high-frequency automated switching at low air consumption per operation.
▶ In-Line Serviceable Seat and Packing
The seat ring is accessible for inspection and replacement without removing the valve from the pipeline. Gland packing can be adjusted under pressure. These features reduce unplanned downtime during routine maintenance intervals.
▶ Seat Isolation at End Positions
At fully open and fully closed positions, the ball surface is isolated from direct contact with the flowing medium. This design prevents seat face erosion during normal flow service and extends the sealing component service interval.
The National Standard designation indicates that the valve flanges conform to GB/T 9113, the Chinese national standard governing flange face dimensions, drilling patterns, and pressure-temperature ratings. GB standard flanges are the default specified connection type in Chinese domestic infrastructure projects, government procurement, and state-owned enterprise (SOE) supply contracts.
GB flange pressure classes use PN designations (PN16, PN25, PN40) on the same pressure-temperature reference basis as ISO 7005-1. In most PN classes, bolt-hole count and flange face OD dimensions align closely with EN 1092-1 (European) dimensions, which supports compatibility across certain mixed-standard project piping systems.
For buyers sourcing GB standard pneumatic ball valves for municipal water infrastructure, power generation, chemical process plants, or domestic oil & gas projects built to Chinese national specifications, this valve series is the directly applicable product line.
KONTE also manufactures pneumatic ball valves to DIN (German standard), ANSI/ASME (American standard), and JIS (Japanese standard) flange connections.
The pneumatic national standard flanged ball valve is used for automated on/off isolation, emergency shutdown, and flow switching in the following sectors.
Chemical and Petrochemical Processing
Pneumatic actuation is the industry-standard choice for chemical plants in ATEX hazardous area classifications. Spring-return fail-safe configurations cover ESD duty. PTFE seating handles corrosive and reactive process media across PN16–PN40 pressure ratings.
Oil & Gas Production and Midstream
Fire-safe construction and anti-static function qualify this valve for flammable fluid service. Pneumatic actuation supports remote pipeline control integrated with SCADA systems at unmanned field stations.
Coal Handling and Mining Coal dust environments carry ignition risk from electrical equipment. Pneumatic actuation removes this risk at the valve location. Sealed body construction resists dust ingress, and full-bore design handles solid-particle-laden slurry flows common in coal washing and dewatering circuits.
Power Generation
Cooling water circuits, condensate return lines, and auxiliary service headers in thermal power plants require automated valve operation with defined fail-safe positions. Spring-return pneumatic ball valves cover these safety interlock requirements.
Water Treatment and Municipal Supply
DN15–DN200 covers standard pipe sizes in water supply distribution networks, wastewater pumping stations, and industrial effluent treatment plants. Pneumatic operation supports automated flow scheduling and remote station control without on-site personnel.
KONTE is a wholesale pneumatic flanged ball valve supplier, OEM factory, and global exporter backed by Kangsaite Automation Group (KST) with 30+ years of manufacturing experience. We supply distributors, EPC project contractors, importers, and OEM brand owners across 800+ active global partnerships in 60+ countries.
OEM and Custom Manufacturing
Custom orders are accepted for alternate body materials (carbon steel, 304/316 stainless steel, duplex alloy), non-standard pressure ratings, extended size ranges, modified actuator torque classes, and complete pneumatic assemblies including solenoid valves, AFR units, and limit switch boxes. Private-label documentation is available for brand owner programs.
Quality and Inspection
All valves are pressure-tested to API 598 and GB/T 13927 before shipment. Every unit undergoes 100% inspection with photographic records. Inspection data is stored for 10+ years. Active certifications include ISO 9001, CE, API, ATEX, and fire-safe (API 607).
Global Warehousing
KONTE operates 15 overseas warehouses in the USA, Spain, Malaysia, Australia, Brazil, Turkey, Russia, Thailand, and additional regions. Local stock enables immediate dispatch for buyers in these markets, avoiding international freight lead times and customs delays.
Q1: What is a GB National Standard flange, and how does it differ from DIN?
GB/T 9113 is the Chinese national standard for pipe flanges. It defines flange face dimensions, bolt-hole drilling, and pressure-temperature ratings using PN class designations. DIN EN 1092-1 is the German/European equivalent. Both use PN ratings and share similar dimensional references at many pressure classes, but bolt-hole patterns, flange ODs, and facing details can differ between standards. Always specify the required flange standard when ordering for a specific project.
Q2: What compressed air supply is required for the cylinder piston actuator?
The standard operating range is 4 to 7 bar (60–100 psi). Required supply pressure depends on the valve size and differential pressure across the valve in service. Supplying outside the rated range without consulting the actuator torque specification is not recommended.
Q3: What is the difference between single-acting and double-acting configurations?
Single-acting (spring return) uses air for one stroke and a spring for the return, providing a defined fail-safe position on air supply loss. Double-acting uses air for both strokes, delivering higher torque and faster cycle speed but no passive fail-safe return. The choice depends on the process safety requirement and cycle frequency.
Q4: Can this valve be installed in ATEX explosive-atmosphere zones?
Pneumatic actuation removes electrical components from the valve location, which is a core requirement for ATEX Zone 1 and Zone 2 installations. KONTE holds ATEX certification for relevant actuator components. When the full assembly — including solenoid valve and limit switch — uses ATEX-certified parts, the valve assembly meets classified area installation requirements.
Q5: Does KONTE support OEM and distributor supply programs?
Yes. KONTE provides OEM/ODM manufacturing for brand owners and distributors, including custom body markings, modified technical documentation, and adjusted design specifications. Wholesale bulk supply is available with flexible MOQ terms for recurring procurement contracts.
