Selecting the right Ball Valve becomes especially important when a pipeline handles extreme temperatures, high-pressure gases, corrosive chemicals, or hygienic process media. A standard valve that works well in general water or utility service may not be suitable for LNG, hydrogen, chemical dosing, or food production.
Different applications require different valve structures, materials, seat designs, bore configurations, and actuation methods. This guide explains how to select Ball Valves for LNG Systems, Hydrogen Pipelines, Chemical Dosing Systems, and Food Processing, helping engineers and buyers identify the valve features that best match each operating environment.
Understanding Ball Valve Designs for Industrial Applications
Full Bore Ball Valve vs Reduced Bore Ball Valve
Trunnion Mounted Ball Valve for High-Pressure Service
V-Port Ball Valve for Flow Control
Cryogenic Ball Valve for LNG Systems
Ball Valves for Hydrogen Pipelines
Ball Valves for Chemical Dosing Systems
Ball Valves for Food Processing
Three-Way Ball Valve for Automated Flow Routing
Application Comparison Table
Pneumatic vs Electric Ball Valve Actuation
Total Cost of Ownership and Valve Selection
Selecting Ball Valves for Critical Industrial Applications
FAQ
Core Keywords: Ball Valve, Full Bore Ball Valve, V-Port Ball Valve, Trunnion Mounted Ball Valve, Three-Way Ball Valve, Cryogenic Ball Valve, Ball Valves for LNG Systems, Ball Valves for Hydrogen Pipelines, Ball Valves for Chemical Dosing Systems, Ball Valves for Food Processing, Ball Valves for Industrial Gas Distribution
A Ball Valve uses a rotating sphere with an internal bore to start, stop, or redirect fluid flow.
When the bore aligns with the pipeline, fluid passes through the valve. A quarter-turn rotates the ball so that the solid portion blocks the flow path.
Although the basic operating principle is simple, industrial Ball Valve performance depends heavily on internal geometry, body construction, seat material, sealing method, pressure rating, and actuator selection.
Applications involving LNG, hydrogen, corrosive chemicals, or food products require more specialized designs than general-purpose pipelines.
The way the internal ball is supported has a major influence on valve pressure capability.
In a floating design, the ball is not mechanically fixed at both ends. Pipeline pressure pushes the ball slightly toward the downstream seat, helping create the seal.
This design is effective for many low- and medium-pressure systems.
High-pressure and larger-diameter pipelines can require a more stable architecture.
A Trunnion Mounted Ball Valve mechanically supports the ball using shafts at the top and bottom.
The Trunnion Mounted Ball Valve transfers pipeline thrust into the valve body rather than allowing the entire load to act directly on the downstream seat.
This arrangement also reduces operating torque, which can make automated actuator sizing more manageable.
For this reason, Trunnion Mounted Ball Valves are particularly relevant in high-pressure gas, hydrogen, and large industrial pipeline applications.
Valve bore configuration directly affects pressure loss, flow velocity, throughput, and pipeline maintenance.
A Full Bore Ball Valve has an internal flow passage approximately matching the inside diameter of the connected pipeline.
This design provides a relatively unrestricted flow path.
A Full Bore Ball Valve is particularly useful where maximum flow capacity, low pressure loss, or unrestricted pipeline cleaning is important.
Full bore designs can also allow pipeline cleaning tools to pass through the valve without encountering a reduced internal opening.
Typical applications include:
High-flow industrial pipelines
Gas distribution systems
Slurry pipelines
Process lines requiring pigging
LNG and industrial gas systems
Applications where pressure loss must be minimized
A reduced bore valve has an internal opening smaller than the connected pipeline.
This can reduce valve size, weight, and material requirements.
However, the smaller flow passage increases local fluid velocity and introduces additional pressure loss.
The choice between Full Bore and Reduced Bore should therefore be based on flow requirements, pressure-drop limits, media characteristics, installation space, and project economics.
Standard Ball Valves are primarily designed for on/off isolation.
For applications requiring more controlled flow adjustment, a V-Port Ball Valve provides a different internal geometry.
A V-Port Ball Valve uses a V-shaped opening instead of a standard circular bore.
As the valve rotates, the opening area changes gradually.
This provides more predictable flow modulation than a conventional round-port Ball Valve.
The V-Port design is especially useful when the process requires controlled metering instead of simple open-or-close operation.
V-port configurations can use different notch angles depending on the required control characteristic.
The original design discussed here includes common angles such as:
15°
30°
60°
90°
These geometries allow the actuator to make gradual adjustments to the flow rate.
Liquefied Natural Gas is stored and transported at approximately -162°C.
At this temperature, conventional valve materials and sealing components may no longer behave as they do at ambient conditions.
Ball Valves for LNG Systems must therefore use cryogenic materials, specialized sealing designs, and appropriate pressure-relief features.
A conventional industrial Ball Valve should not automatically be assumed suitable for cryogenic LNG service.
A Cryogenic Ball Valve uses an extended stem and bonnet assembly.
The extended structure physically increases the distance between the cold process fluid and the upper stem-packing area.
This creates a vapor space between the LNG and the packing system.The main purpose of the extended bonnet is to help keep critical stem sealing components away from the lowest process temperatures.
This feature is one of the most recognizable differences between a conventional Ball Valve and a Cryogenic Ball Valve.
Another important consideration is trapped LNG inside the valve body cavity.
When the valve is closed, cryogenic liquid can become trapped between the ball and body.If the trapped liquid absorbs heat, it can vaporize and expand.A suitable Cryogenic Ball Valve therefore requires a cavity pressure-relief strategy to prevent excessive internal pressure from developing inside the closed valve body.
A self-relieving seat design can allow excessive cavity pressure to return toward the upstream side.
Material selection is especially important in cryogenic service.
The source specification identifies austenitic stainless steels such as:
304L stainless steel
316L stainless steel
These materials are selected because they maintain useful mechanical properties at very low temperatures.
For sealing surfaces, specialized materials such as PCTFE may be used where cryogenic strength and sealing performance are required.
For LNG applications, body material, seat material, extended bonnet design, and cavity pressure relief should be evaluated together rather than independently.
Hydrogen service presents a different group of challenges.
Instead of extremely low temperature being the only concern, engineers must also consider:
Material compatibility
Hydrogen embrittlement
High operating pressure
Fugitive emissions
Stem sealing
Leak testing
Seat durability
Hydrogen can interact with certain metals in ways that can reduce structural performance over time.
The source design therefore emphasizes austenitic stainless steels such as 316 and 316L for hydrogen-related service.
Ball Valves for Hydrogen Pipelines require careful material selection because valve reliability depends not only on pressure rating but also on long-term material compatibility with hydrogen.
High-pressure hydrogen systems place significant force on valve internals.
A floating-ball design can create increased seat loading at very high pressure.
A Trunnion Mounted Ball Valve addresses this by mechanically supporting the ball.
This reduces the load transferred directly through the sealing seats.
It can also reduce operating torque.
For high-pressure Ball Valves for Hydrogen Pipelines, a fixed or trunnion-mounted architecture can provide greater mechanical stability than a basic floating-ball configuration.
Hydrogen can escape through extremely small leak paths.
The source article therefore highlights live-loaded stem packing.
Belleville springs can be used to maintain compressive force on the packing system as wear and thermal changes occur.
Controlling fugitive emissions is a critical part of hydrogen valve selection because sealing performance must be maintained around the stem as well as through the main seats.
Helium leak testing may also be used as part of the valve validation process described in the original design.
Modern hydrogen fueling systems can operate at approximately 350 bar to 700 bar.
At these pressures, valve seat selection becomes particularly important.
The source design describes the use of hardened metal seating and coatings such as tungsten carbide for severe conditions.
Pressure rating, seat technology, body construction, stem sealing, and actuator torque must all be evaluated together for high-pressure hydrogen service.
Chemical dosing places two major demands on a valve:
accurate flow adjustment and resistance to corrosive media.
A standard on/off valve may not provide the level of controllability required for precise chemical injection.
For controlled dosing, the source design recommends a V-Port Ball Valve.
The V-shaped opening allows the flow area to increase gradually as the valve rotates.
This gives the control system a more predictable relationship between valve position and flow rate.
Ball Valves for Chemical Dosing Systems benefit from V-Port geometry when continuous modulation and repeatable metering are required.
Examples can include the controlled introduction of:
Acids
Alkalis
Process chemicals
Treatment chemicals
Solvents
Other dosing media
Chemical compatibility must be evaluated alongside control performance.
Aggressive acids, sodium hydroxide, and solvents may rapidly attack unsuitable valve materials.
The source design describes several approaches.
One option is a metallic valve body with a PTFE or PFA lining.
The lining separates the corrosive process media from the main structural metal.
For high-temperature corrosive service where polymer linings may not be appropriate, materials such as:
Hastelloy
Monel
Titanium
may be specified depending on application requirements.
For Chemical Dosing Ball Valves, the correct control geometry is only useful if the wetted materials can withstand the process media.
Food, beverage, dairy, and pharmaceutical processing place a much greater emphasis on hygiene and cleanability.
A valve that performs well in a general chemical pipeline may still be unsuitable for sanitary production.
The source article emphasizes smooth, non-absorbent wetted surfaces and polished stainless-steel construction.
High-end sanitary valve designs may use surface finishes around Ra < 0.4 μm.
Ball Valves for Food Processing should minimize internal areas where product can remain trapped after normal operation or cleaning.
A standard Ball Valve can contain spaces between the ball and the inner valve body.
Food or dairy products can remain inside these areas.
The source design therefore recommends cavity-filled PTFE seats.
These inserts fill internal void areas around the ball.
Cavity-filled seats reduce stagnation zones and are particularly important when hygiene and repeated cleaning are central process requirements.
Modern food-processing facilities frequently use Clean-in-Place procedures.
The source design specifies Tri-Clamp connections rather than traditional threaded or flanged connections for many sanitary applications.
Tri-Clamp connections provide a smooth internal transition and allow the valve to be dismantled relatively quickly when manual inspection is necessary.
For applications involving frequent cleaning, the valve must also tolerate the temperature and chemical conditions used during the facility's cleaning process.
Food plants often need to redirect ingredients between different process lines.
A Three-Way Ball Valve provides this routing capability in one valve body.
Three-way designs may use:
L-Port geometry
T-Port geometry
Depending on the configuration, the valve can divert, combine, or redirect process streams.

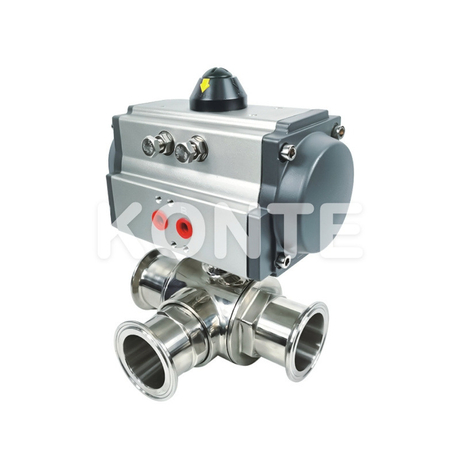

The source example uses pneumatically actuated stainless-steel three-way valves for automated ingredient routing.
A sanitary Three-Way Ball Valve can help automate product transfer while reducing the number of separate valves required for complex pipeline routing.
| Application | Main Operating Challenge | Recommended Ball Valve Design | Typical Material / Seat Consideration | Critical Feature |
|---|---|---|---|---|
| Ball Valves for LNG Systems | Extreme cryogenic temperature around -162°C | Cryogenic Ball Valve | 304L / 316L stainless steel, cryogenic seat materials | Extended bonnet and cavity pressure relief |
| Ball Valves for Hydrogen Pipelines | High pressure, material compatibility and fugitive leakage | Trunnion Mounted Ball Valve | 316 / 316L stainless steel, suitable high-pressure seating | Fixed ball, live-loaded stem packing and leak control |
| Ball Valves for Chemical Dosing Systems | Corrosion and precise flow adjustment | V-Port Ball Valve | PTFE/PFA lining or suitable corrosion-resistant alloys | Predictable modulating flow characteristic |
| Ball Valves for Food Processing | Hygiene, trapped media and cleaning | Sanitary / Three-Way Ball Valve | 304 / 316L stainless steel, cavity-filled PTFE seats | Smooth surfaces, cavity-filled seats and Tri-Clamp connection |
| Industrial Gas Distribution | Flow capacity and pressure loss | Full Bore Ball Valve | Selected according to gas, pressure and temperature | Unrestricted internal bore and low flow resistance |
Valve body selection is only one part of the specification.
Industrial systems may also require manual, pneumatic, or electric actuation.
Pneumatic actuators use compressed air to rotate the valve.
They are particularly useful where:
Rapid actuation is required
Frequent cycling is expected
Spring-return operation is required
The facility already has compressed-air infrastructure
The original design emphasizes pneumatic actuation for LNG, hydrogen, and automated food-routing applications.
Pneumatic actuators are particularly valuable where rapid valve movement and fail-safe spring-return operation are important process requirements.
Electric actuators use a motor and gear mechanism.
They generally provide slower movement than pneumatic systems but can provide precise positioning and control.
This can be useful for:
Chemical dosing
Automated mixing
Flow modulation
Remote process control
Applications requiring position feedback
For a V-Port Ball Valve used in chemical dosing, actuator positioning accuracy can be just as important as the valve body and seat materials.
Purchase price should not be the only factor in industrial valve selection.
A lower-cost valve can become expensive if it causes:
Frequent seal replacement
Unplanned shutdowns
Product contamination
Leakage
High maintenance labor
Reduced process efficiency
Specialized features such as live-loaded packing, cavity-filled seats, cryogenic bonnets, hardened seating, and trunnion-mounted ball support increase the initial engineering complexity.
However, they are intended to address specific operating risks.
The most economical Ball Valve is therefore not necessarily the valve with the lowest purchase price, but the valve whose design matches the actual operating conditions of the system.
There is no single Ball Valve design suitable for every industrial process.
Ball Valves for LNG Systems require cryogenic construction, extended bonnets, suitable low-temperature materials, and cavity pressure relief.
Ball Valves for Hydrogen Pipelines require careful material selection, strong stem sealing, high-pressure capability, and often a Trunnion Mounted Ball Valve structure.
Ball Valves for Chemical Dosing Systems benefit from V-Port geometry and corrosion-resistant wetted materials, while Ball Valves for Food Processing require sanitary construction, cavity-filled seats, smooth surfaces, and cleaning-friendly connections.
Full Bore, V-Port, Trunnion Mounted, Three-Way, and Cryogenic Ball Valves each solve different process challenges.
By evaluating media, pressure, temperature, flow-control requirements, hygiene, materials, actuation, and maintenance needs, engineers and procurement teams can select a valve configuration that better fits the actual demands of the pipeline.
A standard Ball Valve is not specifically designed for LNG temperatures.A Cryogenic Ball Valve uses features such as an extended bonnet, suitable low-temperature materials, and a cavity-pressure-relief design to address the challenges created by extremely cold process media.For LNG service around -162°C, these design differences are critical.
In a floating Ball Valve, pipeline pressure can push the ball against the downstream seat.At very high pressures, this increases seat loading and operating torque.A Trunnion Mounted Ball Valve supports the ball mechanically at the top and bottom, reducing the direct pressure load carried by the seats.This makes the design particularly relevant to high-pressure hydrogen applications.
Use a Full Bore Ball Valve when the main goal is unrestricted flow, low pressure loss, and on/off isolation.Use a V-Port Ball Valve when the process requires controlled throttling or flow modulation.Chemical dosing is a typical application where the gradual opening characteristic of the V-port design is useful.
A V-Port Ball Valve is commonly selected when precise flow adjustment is required.Material compatibility must then be evaluated separately.Depending on the chemical and operating temperature, the valve may require PTFE or PFA lining or corrosion-resistant materials such as Hastelloy, Monel, or Titanium.
Food-processing applications require attention to internal hygiene and cleanability.The source design specifies sanitary three-way valves with features such as cavity-filled seats, stainless-steel construction, smooth internal surfaces, and Tri-Clamp connections.A general industrial Three-Way Ball Valve without these sanitary features may not meet the same process requirements.
The source design highlights 316 and 316L austenitic stainless steel for hydrogen service.Material selection must also consider operating pressure, hydrogen compatibility, valve construction, sealing design, and project-specific requirements.
The original design emphasizes:
Fixed or trunnion-mounted ball construction
Live-loaded stem packing
Belleville spring loading
Appropriate seat design
Leak testing
These measures are intended to maintain stem and seat sealing performance under demanding hydrogen operating conditions.
A Full Bore Ball Valve provides an internal opening approximately matching the connected pipeline diameter.This reduces flow restriction and is useful where high throughput, low pressure loss, or passage of pipeline-cleaning equipment is required.
Internal cavities can retain food, dairy, or beverage media.Cavity-filled PTFE seats reduce these internal stagnation areas,supporting sanitary operation and repeated cleaning.This makes them particularly relevant for food, beverage, dairy, and similar processing systems.
