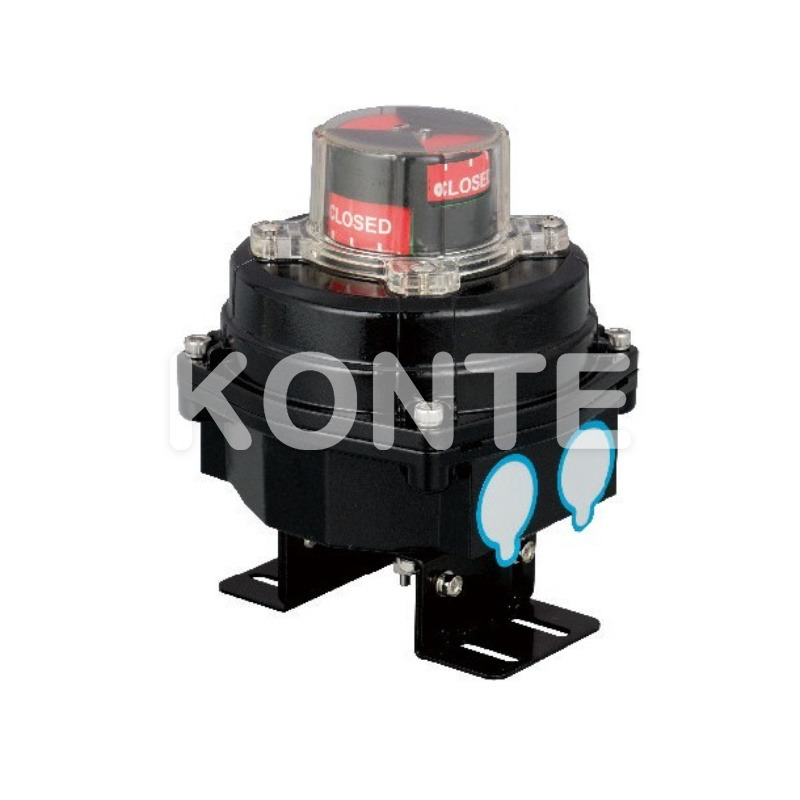

The PLD-3000 limit switch box is an industrial-grade position feedback device engineered for pneumatic and electric valve actuators. It delivers reliable open/close position signals in demanding environments including oil and gas, chemical processing, and power generation. With an IP66 waterproof rating and Ex d IIC T6 explosion-proof certification, the PLD-3000 meets strict safety requirements across hazardous and outdoor installations.
As a direct valve manufacturer and exporter, KONTE supplies the PLD-3000 with full OEM/ODM customization, bulk wholesale pricing, and factory-direct lead times. Learn more about our quality control processes and product range.
| Mechanical Switch | 2xSPDT (Mechanical switch double-knife double-throw) |
| Sensing Switch (Domestic) | SFB2-V3-Y Intrinsically Safe(8v) |
| P&F Sensing Switch | NJ2-V3-N Intrinsically Safe (8V) |
| P&F Sensing Switch | NBB3-V3-Z4(24V) |
| Sensing Switch (Domestic) | SBB2-V3-DA(24V) |
| Magnetic Sensing Switch (Domestic) | SBB3-V3-DA-CX |
| IP Rating | IP66 |
| Explosion-Proof Rating | Ex d IIC T6 |
| Operating Ambient temperature | -25~80℃ |
Cable Connection | (2xNPT1/2)(2×NPT3/4) M20×1.5(G1/2)(G3/4) |
Explosion-Proof & Intrinsically Safe Design
The PLD-3000 carries an Ex d IIC T6 certification, making it safe for Group IIC hazardous gases including hydrogen. Intrinsically safe sensing options (8V) provide an additional layer of protection in Zone 1 and Zone 2 classified areas.
IP66 Weatherproof Enclosure
The sealed housing resists high-pressure water jets and dust ingress, enabling reliable outdoor and offshore deployment without additional protection.
Multiple Switch Configurations
Choose from mechanical SPDT switches or proximity sensing options — domestic (SFB/SBB series) or Pepperl+Fuchs (P&F) branded — to match your control system requirements and budget.
Wide Temperature Range
Rated from -25°C to +80°C, the PLD-3000 performs consistently in arctic pipeline environments and high-temperature process plants alike.
Flexible Cable Entry Options
Supports NPT1/2, NPT3/4, M20×1.5, G1/2, and G3/4 conduit entries for straightforward integration with existing wiring standards worldwide.
OEM & Custom Supply
KONTE offers OEM/ODM production, custom labeling, and bulk supply for distributors and project contractors. Contact us for wholesale pricing.
The PLD-3000 limit switch box is suited to valve position monitoring across a wide range of industries:
Oil & Gas — pipeline isolation valves, wellhead control, offshore platforms
Chemical Processing — corrosive media environments requiring sealed, certified feedback devices
LNG Terminals — cryogenic service with extended low-temperature operation
Power Generation — steam and cooling water valve position feedback
Water Treatment — automated gate and butterfly valve control
Pharmaceutical & Food — hygienic process areas where explosion-proof feedback is required
Explore our full range of industry solutions to find compatible valve and actuator products.
Q: What is a limit switch box used for on a valve?
A: A limit switch box mounts to the valve actuator stem and sends an electrical signal — to a PLC, DCS, or solenoid valve — confirming whether the valve is fully open or fully closed. It removes the need for manual position checks.
Q: Is the PLD-3000 compatible with both pneumatic and electric actuators?
A: Yes. The PLD-3000 mounts via a standard ISO 5211 or VDI/VDE 3845 bracket and is compatible with most quarter-turn pneumatic and electric actuators.
Q: What is the difference between the mechanical switch and the proximity sensing switch options?
A: The mechanical SPDT switch uses physical contact for position detection — simple and cost-effective. Proximity sensing switches (inductive, magnetic) are non-contact, offer longer service life, and are preferred in high-cycle or vibration-heavy applications.
Q: Can KONTE supply the PLD-3000 with Pepperl+Fuchs sensors pre-installed?
A: Yes. The P&F NJ2-V3-N and NBB3-V3-Z4 variants are available factory-installed with KONTE sourcing and assembly. Contact our team for lead time and bulk pricing.
Q: What certifications does the PLD-3000 carry?
A: IP66 (IEC 60529), Ex d IIC T6 explosion-proof, and intrinsically safe options meeting IEC 60079 standards. Full certification documentation is available on request.
Q: Does KONTE offer after-sales support for limit switch boxes?
A: Yes. KONTE provides a 12-month warranty from shipment (or 18 months from installation), with complaint resolution initiated within 8 working hours and live video engineer support. See our full service commitment.
