Operating principles
▶Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement,the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
▶This pump is notreversible by simple reversal ofthe direction ofrotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Design and Features
▶Casing manufactured with cold-formed plate. Open impeller and close impeller manufactured with stainless steel investment casting.
▶Adjustable stainless steel legs. Pump designed according to 3A sanitary standards. IEC NEMA B34 motors, IP 55, F-class insulation,50HZ,60HZ
Technical Specifications
▶Max. flow: 130m3/h
▶Max. head: 70H(m)
▶Max. temperature: 120 ℃/248 °F
▶Max. rev.: 3600 min-1
▶Certificate:3A-02-10/NO.1597，
▶FDA.177.2600
| Model | D1xD2/std | Range of Capacity (T/H) | Electrical Power (kW) | Rotation Speed (r/min) | Remarks |
| TRL-H-100 | 2" x 1.5" | 0-5 | 3/4 | 2900 | With different viscosity and density of medium will use different electrical power |
| TRL-H-130 | 2.5" x 2" | 0-10 | 5.5 / 7.5 | 2900 | |
| TRL-H-160 | 2.5" x 2.5" | 0-20 | 11 / 15 / 18.5 | 2900 | |
| TRL-H-190 | 3" x 2.5" | 0-30 | 22 / 30 | 2900 | |
| TRL-H-210 | 3" x 3" | 0-40 | 30 / 37 | 2900 |
| Model | Motor (kW) | A | B | C | D | E | F | K | L | H | G | V |
| TRL-H-100 | 3/4 | 73 | 172 | 425 | 135 | 320 | 75 | 350 | 600 | 920 | 450 | 3" |
| TRL-H-130 | 5.5 / 7.5 | 91 | 175 | 455 | 155 | 405 | 150 | 450 | 8900 | 1100 | 600 | 4" |
| TRL-H-160 | 11 / 15 / 18.5 | 91 | 159 | 495 | 155 | 435 | 200 | 500 | 1000 | 1250 | 600 | 4" |
| TRL-H-190 | 22 / 30 | 114 | 159 | 495 | 185 | 435 | 200 | 500 | 1000 | 1250 | 750 | 4" |
| TRL-H-210 | 30 / 37 | 114 | 159 | 535 | 185 | 435 | 250 | 600 | 1000 | 1250 | 750 | 5" |
Application

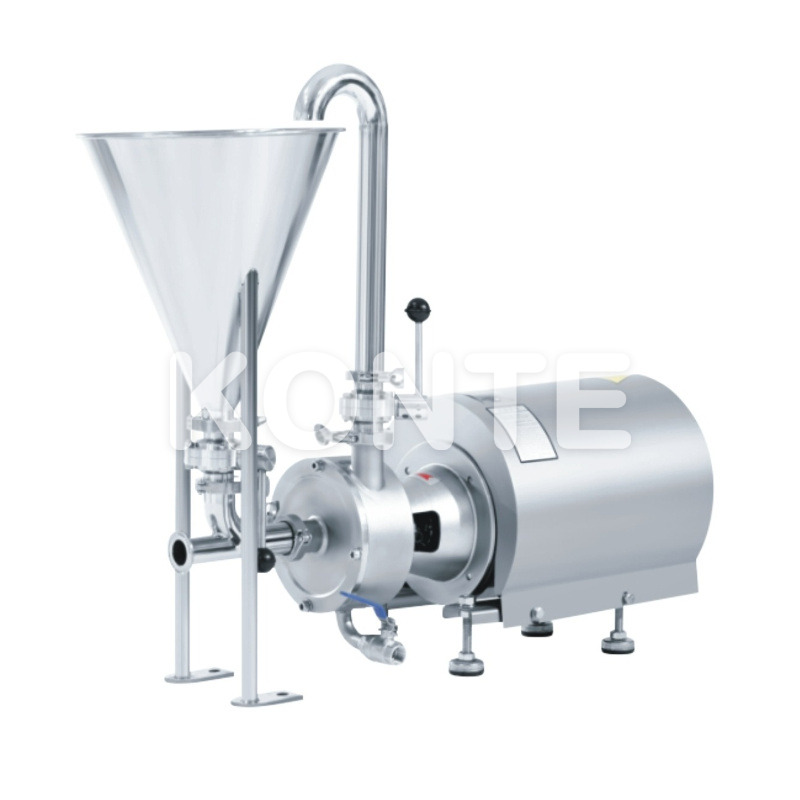

▶The centrifugal pumpis manufacturedin stainless steeland with ahrouded motor.
▶Its sanitary and cost-efficient design makes it perfect for the dairies, beverages,food-processing,pharmaceutical andfine chemicals industries.
