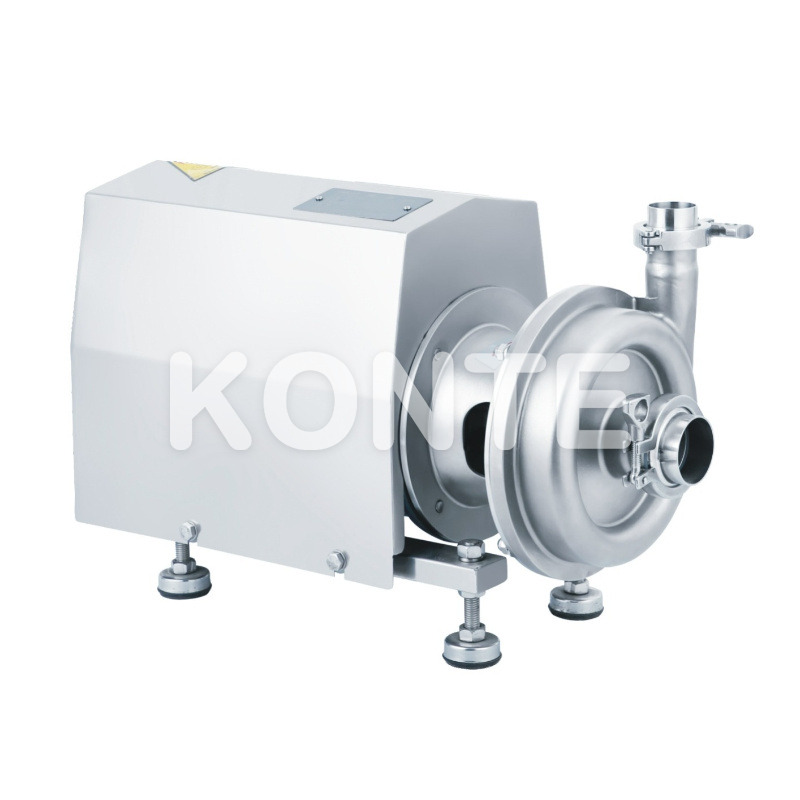

Running your hand along the exterior of this centrifugal pump reveals the flawless, mirror-like finish of its cold-formed stainless steel casing. There are no rough edges or hidden crevices, reflecting a meticulous manufacturing process dedicated to absolute purity. When powered on, the shrouded motor emits a steady, quiet hum, a stark contrast to the rattling vibrations often associated with heavy-duty fluid transfer. This smooth acoustic profile is a direct result of precision engineering and perfectly balanced internal components. As liquid enters the chamber, the masterfully crafted investment-cast impellers take over, slicing through the fluid to convert kinetic energy into a powerful, steady pressure wave. You can almost feel the relentless efficiency as it propels liquids effortlessly through complex piping networks. Whether handling delicate dairy products or rigorous chemical compounds, the pump maintains an unwavering rhythm, ensuring that the integrity, texture, and purity of your processing batch remain completely untouched from intake to discharge.
Specification | Details |
|---|---|
Product Name | Sanitary High-Lift Centrifugal Pump |
Main Material | Stainless Steel (Wetted parts AISI 316L, other parts AISI 304) |
Max. Flow | 130 m³/h |
Max. Head | 70 H(m) |
Max. Temperature | 120 ℃ / 248 °F |
Max. Rev. | 3600 min-1 (rpm) |
Power | 0.55 kW - 30 kW |
Voltage | 210~230V / 360~400V / 420~460V / 630~690V |
Frequency | 50Hz / 60Hz |
Motor Compliance | IEC NEMA B34 |
Protection Grade | IP55 |
Insulation Class | F-class |
Impeller Type | Open and close impellers (Stainless steel investment casting) |
Casing | Cold-formed plate |
Certificate | 3A-02-10/NO.1597, FDA.177.2600 |
Mounting | Adjustable stainless steel legs |
Rotation Direction | Clockwise when viewed from the motor's rear side |
Every element of this pump is deliberately crafted to solve the most pressing challenges faced by modern processing facilities. By prioritizing both sanitary design and mechanical sheer force, this equipment reduces operational bottlenecks while safeguarding the quality of your sensitive fluids.
Unidirectional Precision: The clockwise rotation (viewed from the rear) ensures a focused, non-reversible kinetic transfer, maximizing pressure output without fluid backwash.
Thermal Resilience: Capable of withstanding continuous exposure to fluids at 120 ℃ (248 °F), making it an indispensable asset for high-temperature sterilization routines.
Vibration Dampening: The shrouded motor design not only protects the electrical components from moisture but also significantly dampens operational noise, creating a safer, quieter facility floor.
Flexible Integration: Equipped with highly adjustable stainless steel legs, allowing your installation team to achieve perfect leveling even on sloped or uneven washdown floors.
Procurement professionals in the food, beverage, and pharmaceutical sectors understand that hygiene is non-negotiable. This pump is constructed with premium stainless steel, utilizing AISI 316L for all wetted contact parts and AISI 304 for the exterior structure. This metallurgical choice provides extraordinary resistance to corrosive cleaning agents and acidic food products.
Zero Dead Legs: The internal geometry is meticulously optimized to eliminate blind spots where bacteria or product residue could accumulate.
Certified Safety: Proudly carrying the 3A-02-10/NO.1597 certification and adhering to FDA.177.2600 standards, ensuring immediate compliance during facility audits.
Automated Cleaning Ready: The ultra-smooth internal finish makes this unit perfectly adapted for Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems, drastically reducing manual labor and turnaround times between batches.
When routing heavy or high-volume liquids across expansive facility floors, underpowered equipment quickly becomes a liability. Designed specifically for engineers and production supervisors who demand uncompromising hydraulic performance, this pump transforms electrical input into massive kinetic energy with minimal loss.
Massive Throughput: Effortlessly handles a maximum flow rate of 130 m³/h, ensuring your downstream filling or processing machines are never starved for product.
Superior Elevation: Generates an impressive maximum head of 70 meters, easily pushing dense fluids up multiple stories or through complex, highly resistant filtration networks.
Optimized Impeller Dynamics: The precision-cast open and closed impellers rotate seamlessly with the pump shaft, capturing and accelerating the fluid to maintain a consistent, pulse-free pressure wave.
A pump is only as reliable as the motor driving it. For multinational operations and equipment integrators, electrical compatibility and environmental resilience are paramount. This unit is powered by a heavy-duty, shrouded motor designed to thrive in the harshest industrial conditions.
Global Adaptability: Supports both 50Hz and 60Hz frequencies across a massive voltage spectrum (210V to 690V), allowing for standardized deployment across facilities worldwide.
Washdown Protection: Rated at IP55, the motor enclosure is heavily shielded against dust ingress and low-pressure water jets, making it completely safe for rigorous daily washdown routines.
Thermal Protection: Featuring F-class insulation, the internal copper windings are protected against severe heat buildup, preventing catastrophic motor failure during extended, high-load operational shifts.
Standardized Compliance: Built to IEC NEMA B34 specifications, ensuring that integration, maintenance, and potential future replacements are straightforward and standardized.
Equipment longevity directly impacts your bottom line. This centrifugal pump is built to endure the punishing realities of continuous industrial operation, minimizing unexpected breakdowns and costly maintenance schedules. The physical robustness of the unit is evident in its substantial weight and rigid construction.
Cold-Formed Strength: The casing is manufactured from cold-formed steel plate, a process that significantly increases the metal's yield strength and resistance to physical impacts compared to standard casting.
Investment Cast Precision: The stainless steel impellers are created via investment casting, resulting in exceptionally precise blade geometries that resist wear and tear over millions of rotations.
Anti-Cavitation Design: The rigid structural integrity and optimized fluid pathways work in tandem to suppress cavitation, protecting the internal chamber from the destructive pitting caused by collapsing microscopic bubbles.
Fluid leaks are more than just a mess; they represent lost revenue, safety hazards, and potential contamination events. Recognizing this critical pain point, the pump features an advanced sealing architecture designed to lock fluids securely inside the chamber, even under maximum pressure and temperature.
High-Fidelity Mechanical Seals: Engineered to withstand the intense friction of 3600 rpm rotations without degrading, ensuring a perfectly tight barrier between the fluid chamber and the external environment.
FDA-Approved Elastomers: Utilizing premium EPDM or PTFE materials for all O-rings and gaskets, providing exceptional chemical resistance while remaining completely safe for human-consumable products.
Reduced Downtime: The robust nature of the sealing system means fewer emergency stops for seal replacements, keeping your production schedule on track and your maintenance budget under control.
No two processing facilities are identical, which is why adaptability is a core design principle of this pump series. Whether you are moving delicate milk curds, viscous syrups, or aggressive fine chemicals, the equipment can be tailored to meet the exact specifications of your unique application.
Broad Industry Adoption: Proven to deliver exceptional results across dairies, beverage bottling plants, food processing centers, pharmaceutical labs, and fine chemical refineries.
Scalable Power Matrix: Available in a comprehensive power range from a highly efficient 0.55 kW up to a massive 30 kW, allowing you to match the exact horsepower required for your specific fluid viscosity and piping distance.
Impeller Options: Choose between open impellers for fluids containing soft solids or closed impellers for maximum efficiency with clear, low-viscosity liquids.
When sourcing critical infrastructure, the origin of your equipment matters just as much as its specifications. By choosing this pump, you are partnering with a dedicated manufacturer committed to elevating your operational standards through superior engineering and transparent supply chains.
Direct Manufacturer Value: Bypass unnecessary markups and communicate directly with the source, ensuring you receive premium quality at a highly competitive investment level.
Rigorous Quality Assurance: Every single unit undergoes intense hydraulic and electrical testing before leaving the facility, guaranteeing out-of-the-box reliability.
Expert Engineering Support: Gain access to deep technical expertise to assist with sizing, motor configuration, and integration strategies tailored to your specific facility layout.
Long-Term Reliability: We don't just supply equipment; we provide long-term peace of mind, knowing your production lines are powered by machinery built to outlast the competition.
Absolutely. The pump is specifically designed with ultra-smooth internal surfaces and zero dead legs, making it perfectly suited for Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols. It can easily withstand the high temperatures (up to 120 ℃) and harsh chemicals used during these automated cleaning cycles.
No, the pump’s rotation is not reversible simply by changing the motor's electrical phase. It is engineered for optimal fluid dynamics in a single direction. When viewed from the rear of the motor, the correct and only operational rotation direction is clockwise.
It is highly versatile and ideal for clean, low-to-medium viscosity fluids. Thanks to its 3A and FDA certifications, it is heavily utilized for milk, juices, purified water, pharmaceutical syrups, and fine chemical solvents. If your fluid contains small, soft particulates, the open impeller configuration is highly recommended.
Industrial floors, especially those designed for washdown drainage, are rarely perfectly flat. To address this, the pump is equipped with heavy-duty, adjustable stainless steel legs. Your installation team can easily thread the feet up or down to achieve a perfectly level and stable base, reducing operational vibrations.
Yes, the IEC NEMA B34 compliant motor is highly adaptable. Depending on the specific power configuration you select (from 0.55 kW to 30 kW), it supports a wide range of voltages including 210~230V, 360~400V, 420~460V, and 630~690V across both 50Hz and 60Hz frequencies, making it suitable for global deployment.
