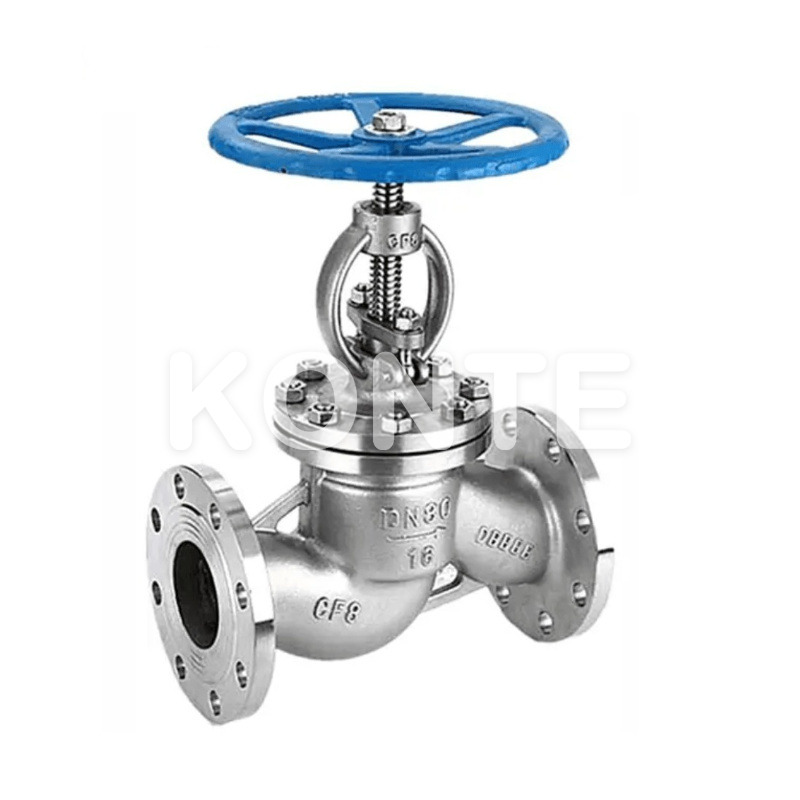

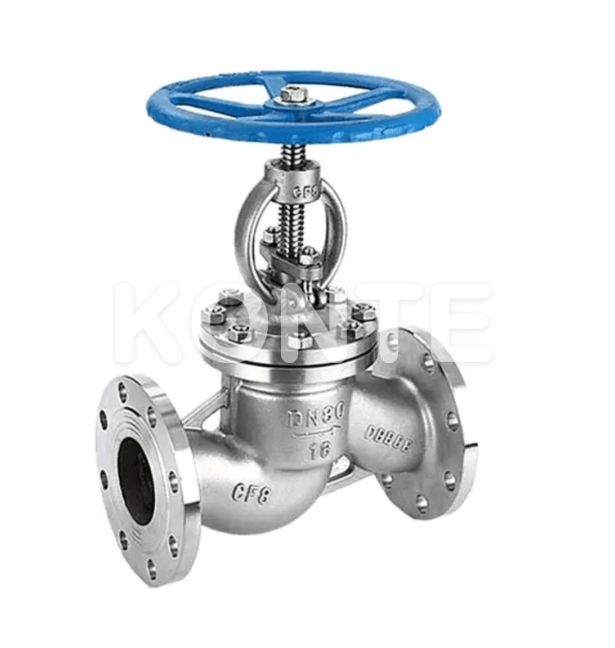

Stainless steel flanged globe valve is a robust industrial valve designed for precise flow control and reliable shutoff in demanding pipeline applications. Featuring a rising stem structure and flanged connection, this manual globe valve offers excellent sealing performance and corrosion resistance, making it ideal for regulating the flow of liquids, gases, and steam. As a trusted industrial globe valve manufacturer, we deliver high-quality solutions that meet the stringent requirements of critical process industries worldwide.
Body material: Available in 304, 316, and 316L stainless steel for superior corrosion resistance
Rising stem design: Provides clear visual indication of valve position
Flanged ends: Ensure secure, leak-proof connection to standard pipeline flanges
Robust casting: Eliminates weak points and ensures long-term structural integrity
Optional sealing types: Soft sealing for bubble-tight shutoff or hard sealing for high-temperature and abrasive applications
Precise flow regulation: Linear flow characteristic allows accurate throttling control
Low operating torque: Easy manual operation even at high pressures
Excellent sealing performance: Prevents leakage and reduces maintenance costs
T-type or Y-type straight-through structure: Options to suit different flow requirements
Bottom port: Equipped with a ball valve for convenient drainage or flushing
Easy maintenance: Modular design allows for quick disassembly and repair
Handwheel operation: Simple and reliable manual control without the need for external power
Parameter | Specification |
Body Material | 304, 316, 316L stainless steel (optional) |
Size Range | DN15 to DN200 |
Connection Type | Flanged ends (ANSI, DIN, JIS standards available) |
Sealing Type | Soft sealing or hard sealing (optional) |
Operation | Manual (handwheel) |
Structure | T-type or Y-type straight-through |
Pressure Rating | Class 150 to Class 300 (PN10 to PN40) |
Temperature Range | -20°C to 200°C (depending on seal material) |
Additional Feature | Bottom port with ball valve for drainage/flushing |
Flanged stainless steel globe valve is widely used in industries where reliable flow control and corrosion resistance are essential:
Petroleum and petrochemical: Regulating crude oil, refined products, and chemical process fluids
Fine chemicals: Controlling the flow of corrosive chemicals and solvents
Electric power: Managing steam, condensate, and cooling water systems
Water treatment: Regulating water flow in municipal and industrial treatment plants
Food processing: Controlling non-sanitary process fluids and utility lines
Marine applications: Providing reliable flow control in shipboard piping systems
We provide comprehensive custom globe valve solutions to meet the specific needs of industrial clients:
Custom material specifications for specialized corrosion resistance
Modified pressure and temperature ratings for extreme operating conditions
Custom end connections to match existing pipeline systems
Special coating options for enhanced durability in harsh environments
Customized actuation options including pneumatic and electric actuators
Private labeling and packaging for distribution partners
Our industrial flanged valve products are manufactured to the highest quality standards:
Strict raw material testing and traceability
Precision machining using advanced CNC equipment
Hydrostatic pressure testing for each valve
Seat leakage testing to ensure zero leakage performance
Dimensional inspection and functional testing before shipment
Our production processes comply with international quality management systems, and we can provide all necessary certification documents for your project requirements.
T-type globe valves have a 90-degree flow path, providing better throttling control but higher pressure drop. Y-type globe valves have a 45-degree flow path, offering lower pressure drop and higher flow capacity, making them suitable for high-flow applications.
Yes, globe valves are specifically designed for both precise throttling control and positive shutoff, making them versatile for a wide range of process applications.
With standard soft seals, the maximum temperature is 150°C. For higher temperature applications up to 200°C, we recommend using hard sealing or high-temperature resistant soft seals.
Yes, we can provide pneumatic or electric actuators for automated operation. Our engineering team can assist with selecting the appropriate actuator for your specific application requirements.
