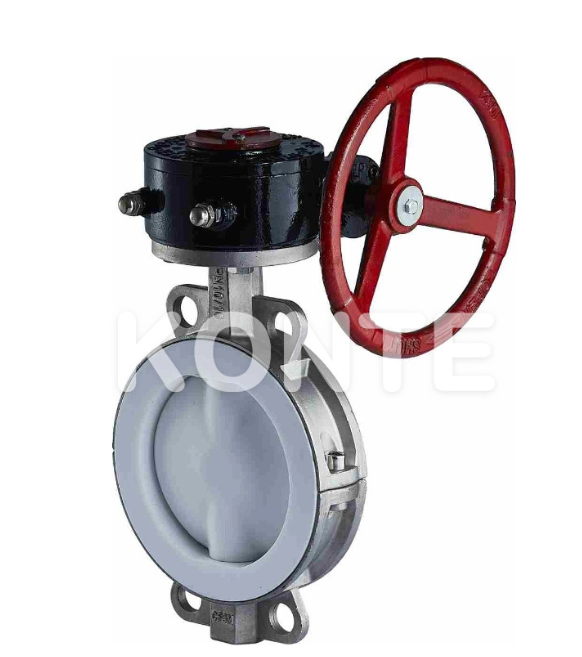

Our fluorine-lined butterfly valves are specifically designed for high-purity and non-contaminating processes, delivering exceptional corrosion resistance, wear resistance, and leak-tight performance. Available in manual, pneumatic, electric, hydraulic, and electro-hydraulic actuation options, these valves seamlessly integrate into automated industrial systems. With nominal diameters ranging from 2" to 48" (DN50 to DN1200) and pressure ratings up to PN25/CL300, they provide versatile solutions for diverse industrial fluid handling needs.
Our zero internal leakage butterfly valves feature an innovative O-type elastic diaphragm seat with a flexible lip design. This advanced sealing mechanism ensures complete shut-off without internal leakage and provides automatic compensation for wear, extending service life and reducing maintenance costs.
The valve body incorporates a two-piece butterfly plate structure with an eccentric shaft and segmented design. The replaceable and adjustable valve seat simplifies maintenance and servicing, minimizing downtime in critical operations.
Equipped with an ISO standard mounting pad, these valves can be easily fitted with pneumatic, electric, hydraulic, or electro-hydraulic actuators. This flexibility allows for seamless integration into existing automated control systems, enabling remote operation and precise flow regulation.
Constructed from high-quality materials including ductile iron, carbon steel, and stainless steel (304, 316), our valves offer excellent mechanical strength and corrosion resistance. The fluorine lining and various seal materials provide compatibility with a wide range of aggressive media.
Item | Specification |
Product Type | Three Eccentric Adjustment Butterfly Valves |
Nominal Diameter | 2" ~ 48", DN50 ~ DN1200 |
Pressure Rating | PN16 ~ PN25, CL150 ~ CL300 |
Standard Models | D71F, D41F |
Body Materials | Ductile iron, carbon steel, stainless steel (304, 316, etc.) |
Lining & Seal Materials | F46 (PFA) Lining, EPDM Rubber, NBR (Nitrile Rubber), FKM (Viton®) Rubber |
Temperature Range | -29℃ ~ 180℃ (depending on material) |
Actuation Methods | Manual, Pneumatic, Electric, Hydraulic, Electro-Hydraulic |
Mounting Standard | ISO standard mounting pad |
Material | Temperature Range |
F46 (PFA) Lining | -29℃ ~ 150℃ |
EPDM Rubber | -29℃ ~ 120℃ |
NBR (Nitrile Rubber) | -20℃ ~ 90℃ |
FKM (Viton®) Rubber | -29℃ ~ 180℃ |
These high-performance valves are ideal for use in a wide range of industrial sectors including:
Petroleum and petrochemical processing
Fine chemical manufacturing
Electric power generation
Water and wastewater treatment
Pharmaceutical production
Food and beverage processing
Pulp and paper industry
We offer comprehensive custom valve manufacturing services to meet the unique requirements of industrial clients. Our experienced engineering team can design and produce three eccentric adjustment butterfly valves to your exact specifications, including custom dimensions, materials, and actuation options. We provide full support from initial design to final production, ensuring that your custom valves meet the highest performance standards.
All our corrosion-resistant butterfly valves are manufactured under strict quality control processes in compliance with international standards. Each valve undergoes rigorous testing including pressure testing, leakage testing, and performance testing before shipment. Our production facilities are certified to ISO 9001 and other relevant industry standards, ensuring consistent quality and reliability.
The maximum temperature depends on the lining and seal material. FKM (Viton®) Rubber can withstand temperatures up to 180℃, while F46 (PFA) Lining is suitable for temperatures up to 150℃.
Yes, our three eccentric adjustment butterfly valves are designed for both reliable shut-off and precise flow regulation applications.
Yes, we maintain a comprehensive inventory of replacement parts including valve seats, seals, and actuation components to ensure minimal downtime for our customers.
