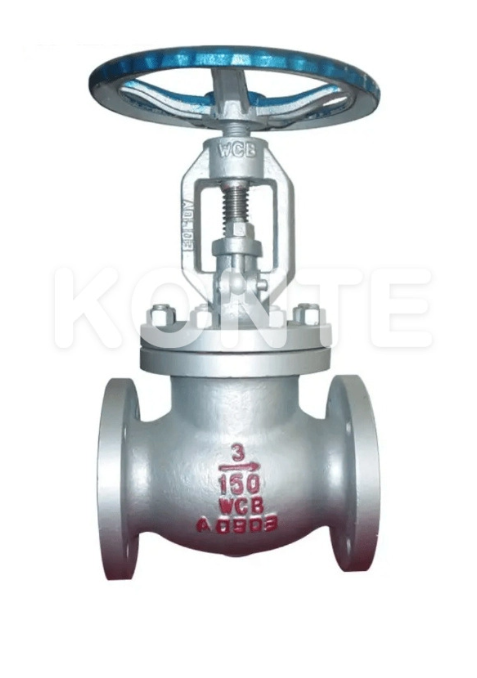

The WCB flanged globe valve is a high-performance cast carbon steel valve engineered for precise flow shut-off and throttling applications in industrial piping systems. Featuring a robust rising stem design and flanged connections, this industrial globe valve delivers exceptional durability and reliable operation in demanding environments. Our cast carbon steel globe valve is manufactured to international standards, ensuring compatibility with existing pipeline infrastructure across various industries. The T-type and Y-type straight-through configurations provide flexible installation options to meet specific project requirements, making it an ideal choice for both new construction and retrofit projects.
Premium Body Construction: Available in stainless steel 304, stainless steel 316, and stainless steel 316L options alongside standard WCB cast carbon steel, offering excellent corrosion resistance for different fluid applications
Versatile Sealing Solutions: Optional soft or hard sealing systems ensure tight shutoff and long service life, even under high-pressure operating conditions
Rising Stem Design: Provides clear visual indication of valve position and prevents stem rotation, ensuring accurate flow control
Integrated Drainage System: Equipped with a bottom port and ball valve for convenient drainage and flushing, simplifying maintenance procedures
Flanged End Connections: Standard flanged design ensures easy installation and removal, compatible with most industrial piping systems
Manual Operation: Handwheel-operated mechanism allows for precise flow adjustment and reliable emergency shut-off capabilities
Parameter | Specification |
Body Material | WCB Cast Carbon Steel, SS304, SS316, SS316L (optional) |
Size Range | DN15 to DN200 (1/2" to 8") |
Connection Type | Flanged ends |
Sealing Type | Soft sealing, Hard sealing (optional) |
Operation Mode | Manual (handwheel) |
Structure Type | T-type straight-through, Y-type straight-through |
Nominal Pressure | PN16, PN25, PN40 |
Design Standard | GB, ANSI, DIN, JIS |
Temperature Range | -29°C to 425°C (carbon steel) |
Additional Features | Bottom drainage port with ball valve |
The WCB flanged globe valve is widely used in industries requiring reliable flow control for non-corrosive fluids. Its robust construction and versatile design make it suitable for:
Petroleum and Petrochemical Industry: Controlling flow of crude oil, refined products, and process fluids in refineries and processing plants
Power Generation: Managing water, steam, and fuel lines in thermal power plants and cogeneration facilities
Water Treatment: Regulating flow in municipal water supply systems, wastewater treatment plants, and desalination facilities
Fine Chemicals: Controlling process fluids in chemical manufacturing and pharmaceutical production
Oil and Gas Transportation: Managing pipeline systems for oil and gas distribution networks
We offer comprehensive custom valve manufacturing services to meet your specific project requirements. Our experienced engineering team can modify existing designs or develop completely custom solutions tailored to your application needs. We provide:
Custom material specifications to handle unique fluid compositions
Specialized sealing solutions for extreme temperature and pressure conditions
Customized end connections to match existing piping systems
Private labeling and packaging options
Engineering support from design through production and testing
Our flexible production capabilities allow us to handle both small-batch custom orders and large-scale production runs, ensuring timely delivery and consistent quality for every project.
All our WCB flanged globe valves undergo rigorous quality control procedures throughout the manufacturing process. Each valve is pressure tested to ensure leak-free performance and compliance with international standards. Our manufacturing facilities are certified to ISO 9001 quality management system standards, and our products meet API, ANSI, DIN, and JIS specifications. We provide comprehensive material test reports and pressure test certificates with every shipment, giving you complete confidence in the quality and reliability of our products.
T-type globe valves offer higher flow resistance and are ideal for throttling applications, while Y-type globe valves provide lower flow resistance and are better suited for applications requiring minimal pressure drop.
Standard WCB carbon steel valves are suitable for non-corrosive fluids. For corrosive applications, we recommend our stainless steel 304, 316, or 316L options.
WCB carbon steel globe valves can operate at temperatures up to 425°C, making them suitable for most steam and high-temperature process applications.
Yes, we can manufacture valves with custom pressure ratings to meet specific project requirements. Contact our engineering team for more information.
