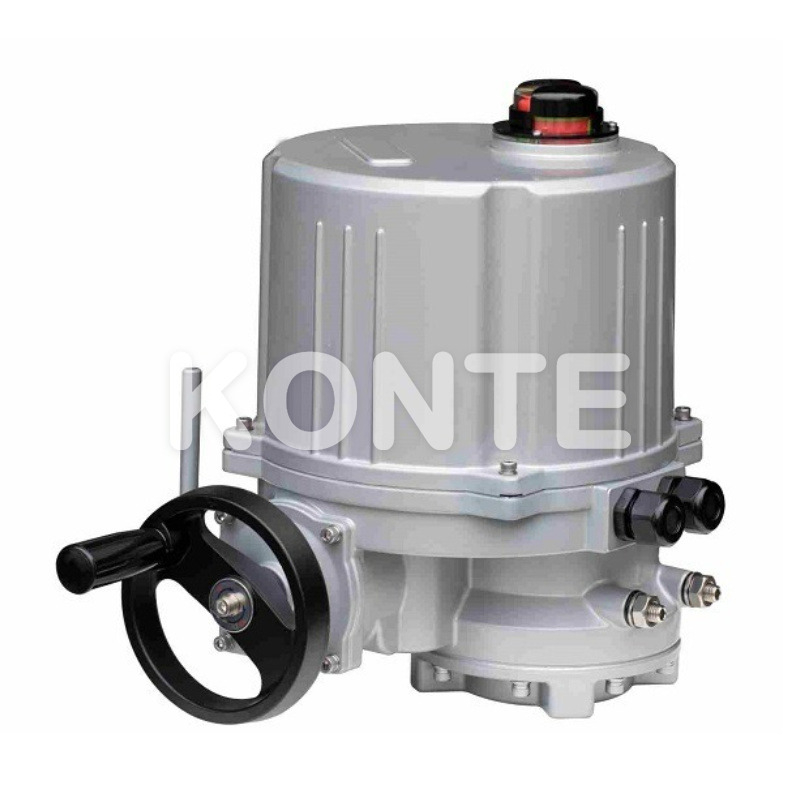

Features
High-strength aluminum alloy housing with anodic oxidation treatment and polyester powder coating on the surface, offering excellent corrosion resistance and durability.
Fully enclosed squirrel-cage motor with built-in thermal protection for continuous operation under load.
Manual operation is not possible when the power is on, ensuring safety.
Non-invasive design with both electric and pneumatic fail-safe options.
Double worm gear drive with self-locking function, high output torque, low transmission noise, and long service life.
Modular design allows for various functional configurations. All metal gears undergo heat treatment for enhanced wear resistance and operational reliability.

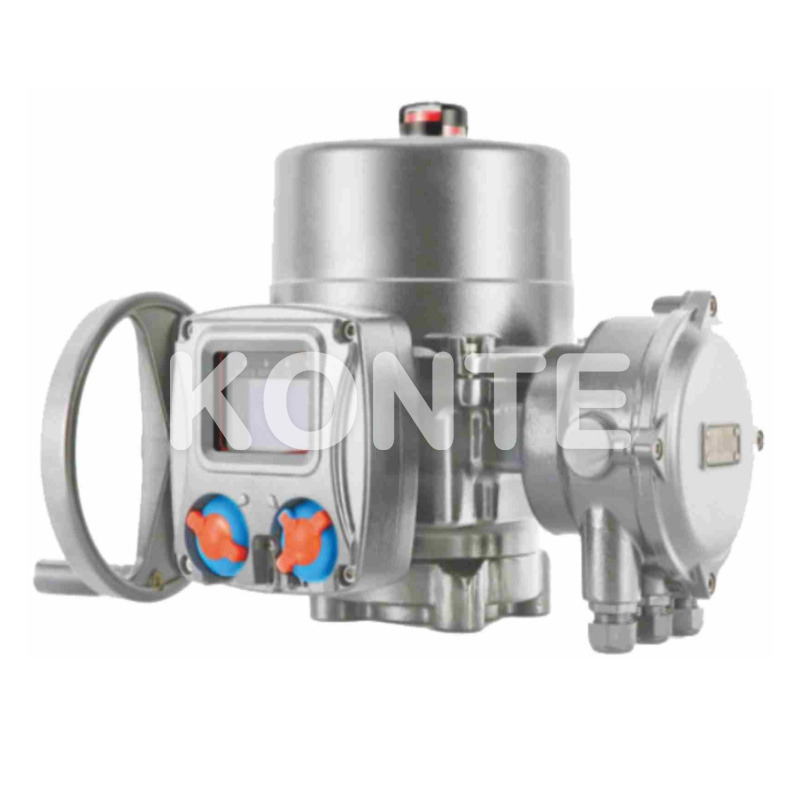

Large display screen with bilingual (Chinese and English) operation interface.
Automatic three-phase power wiring detection and phase loss protection, with automatic correction.
Technical Specifications
| Torque Range | 50Nm ~ 6000Nm |
| Travel Angle | 90° ±1° (0°~270° optional) |
| Power Supply | 380V / 220V / 110V AC |
| Control Signal | 420mA or 05V DC |
| Protection Level | Standard IP67, optional IP68 |
| Explosion-proof | Optional Exd II BT4 or Exd II CT5 |
Bottom mounting structure and dimensions comply with ISO5211 international standards.
Suitable for use with butterfly valves, ball valves, and dampers that require quarter-turn regulation.
