As a premier industrial valve manufacturer and global supplier, we engineer high-performance flow control solutions tailored for the most demanding environments. This heavy-duty non-return mechanism is meticulously crafted for high-pressure systems, ensuring absolute fluid containment and structural integrity. Ideal for large-scale industrial procurement and critical infrastructure projects, our units guarantee operational continuity and safety.
Precision-engineered pressure seal bonnet designed for zero-leakage high-pressure containment.
Heavy-wall cast body construction that significantly minimizes fluid resistance and pressure drop.
Direct-from-manufacturer availability optimized for seamless integration into large-scale industrial networks.
KST&OEM&ODM Brand
| Availability: | |
|---|---|
| Quantity: | |

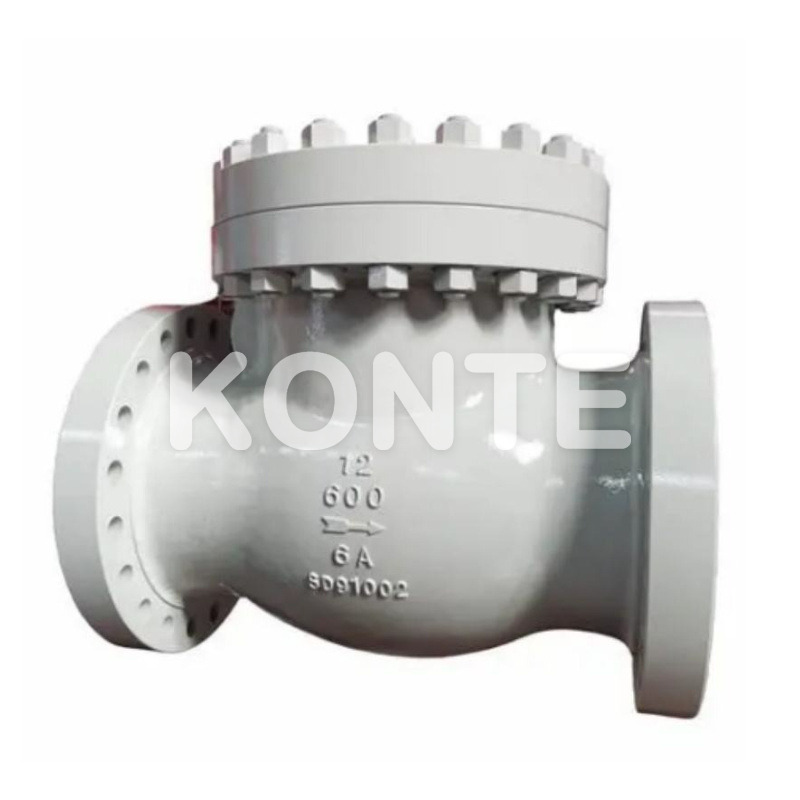

The Flanged Pressure Seal Check Valve represents the pinnacle of fluid directional control, meticulously cast and machined to safeguard critical downstream infrastructure. When you run your hand along the robust metallic housing, the sheer weight and flawless surface finish speak to the uncompromising metallurgical integrity of the unit. Designed specifically for extreme high-pressure and high-temperature environments, this valve utilizes the system's own internal forces to tighten its seal, creating an impenetrable barrier against reverse flow. The satisfying, solid engagement of the internal disc against the hardfaced seat ensures an immediate, silent closure the moment fluid dynamics shift, preventing catastrophic water hammer and mechanical stress on adjacent piping. Every contour of the internal flow path has been hydrodynamically optimized to reduce turbulence, allowing process media to glide through with minimal resistance. Whether installed in a sweltering geothermal power generation facility or a highly corrosive petrochemical processing plant, this valve stands as a silent, unyielding sentinel. The precision-machined flanged ends align seamlessly with standard piping matrices, offering engineers and procurement specialists a flawlessly integrated solution that dramatically reduces maintenance intervals and elevates overall operational safety.
Our engineering team has meticulously standardized the technical parameters of this non-return valve to ensure seamless integration into complex piping networks. The following table details the precise dimensional, metallurgical, and operational specifications. Each metric is strictly monitored during the manufacturing process to guarantee that every unit delivered to our industrial partners meets exact tolerance levels.
Item | Specification |
Nominal Diameter | DN50–DN1200 (2"–48") |
Nominal Pressure | PN10–PN420 / Class 150–Class 2500 |
Connection Type | Flanged |
Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Chrome-Moly Steel |
Seat Material | Stainless Steel, Hard Alloy, Overlay Alloy |
Suitable Media | Water, Steam, Oil, Natural Gas, Corrosive Fluids |
Temperature Range | -29°C to +600°C (depending on material) |
Installation | Horizontal or Vertical (based on structure) |
Standards | API 6D, API 594, ASME B16.34, GB/T 12236 |
Bonnet Type | Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet |
Structure Type | Lift Type, Swing Type, Dual Plate Type |
Engineered to eliminate operational bottlenecks, this valve delivers unparalleled performance that directly translates to reduced downtime and a lower total cost of ownership for modern industrial facilities.
Uncompromising Leak Prevention: The self-adjusting sealing mechanism leverages internal line pressure. The higher the system pressure, the tighter the seal becomes, effectively eliminating hazardous fugitive emissions and protecting your workforce.
Hydrodynamic Efficiency: The meticulously contoured internal flow channels are cast to perfection, eliminating dead zones and minimizing pressure drop. This allows your pumps to operate at lower energy loads, significantly reducing daily electricity expenditures.
Exceptional Wear Resistance: By utilizing advanced hardfacing techniques on critical contact surfaces, the internal components resist the brutal scouring effect of high-velocity particulates and flashing steam, drastically extending the replacement cycle.
Rapid Actuation & Silence: The precisely balanced internal disc responds instantly to flow reversal. This rapid closure prevents the destructive acoustic shockwaves associated with water hammer, protecting fragile downstream instrumentation from catastrophic failure.
Understanding the rigorous demands of modern fluid processing, we have engineered this valve to excel across multiple technical dimensions, ensuring your facility operates at absolute peak efficiency.
The architectural core of this valve revolves around advanced Pressure Seal Bonnet technology. Unlike traditional bolted designs that may stretch and leak under extreme stress, our self-pressure sealing mechanism actually improves its containment capabilities as system pressure escalates. Combined with a one-piece cast body and a streamlined internal flow path, it effectively mitigates fluid resistance and pressure drops, optimizing your system's overall throughput.
Harsh environments demand uncompromising metallurgical choices. We supply this unit in a comprehensive range of materials, including premium Carbon Steel, Stainless Steel, and specialized Chrome-Moly alloys to suit diverse conditions.
Extreme Temperature Tolerance: Capable of withstanding severe thermal shocks in environments ranging from a freezing -29°C up to a blistering +600°C.
Stellite Hardfacing: The seating and guiding surfaces are meticulously overlaid with CoCr alloy, providing extraordinary resistance to mechanical wear, abrasive scouring, and thermal distortion.
Safety is non-negotiable in high-pressure fluid management. This valve is engineered for tight shutoff, creating an absolute barricade against reverse flow that could otherwise destroy expensive pumps and compressors.
Spring-Loaded Options: Select models feature a highly responsive spring-loaded mechanism, ensuring reliable sealing even in low-pressure differential scenarios.
Anti-Water Hammer: The controlled closing velocity effectively neutralizes hydraulic shock, ensuring silent operation and preserving the structural integrity of your entire piping network.
Global procurement requires strict adherence to international engineering codes. Our manufacturing processes and final products are rigorously audited to meet the highest global standards.
Fully compliant with ASME B16.34, API 6D, and API 594 structural specifications.
Supports NACE MR0175 requirements for aggressive, sour gas (H2S) environments.
Backed by ISO and CE certifications, streamlining your facility's compliance and safety audits.
Versatility is engineered into every component, making it the preferred choice for diverse and highly demanding industrial sectors.
Power Generation: Indispensable for thermal and nuclear power plants, particularly within high-pressure boiler steam systems.
Hydrocarbon Processing: Perfectly adapted for upstream petroleum extraction, petrochemical refining, and natural gas transmission lines.
Chemical & Water: Highly effective in fine chemical processing and municipal water treatment plants handling corrosive or volatile fluids.
We recognize that maintenance downtime equals lost revenue. Every aspect of this valve's exterior design facilitates rapid, hassle-free intervention by your field technicians.
Standardized Connections: Features precision-machined RF, RTJ, or FF flanged ends for swift, secure installation in both horizontal and vertical orientations.
In-Line Serviceability: The intelligent top-entry design allows for quick and easy repair directly within the pipeline, without the need to sever welded connections.
Handling Ease: Large-diameter models are equipped with heavy-duty lifting lugs, significantly reducing on-site labor requirements and rigging complexities during initial installation.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. As a dedicated supplier of industrial flow control solutions, we bring decades of metallurgical expertise and precision engineering directly to your supply chain.
End-to-End Quality Control: From the initial melting of the raw alloy to the final hydrostatic testing, every phase of production is monitored in our state-of-the-art facility, ensuring absolute traceability.
Custom Engineering Capabilities: We understand that standard off-the-shelf products do not always fit complex process requirements. Our in-house engineering team collaborates directly with your technical staff to customize materials, flange facings, and internal structures.
Global Logistics & Reliability: We maintain a robust inventory of critical components, allowing us to accelerate production timelines and deliver large-scale orders with unwavering punctuality, keeping your facility construction strictly on track.
Dedicated Technical Support: Our relationship does not end at delivery. We provide comprehensive post-installation support, including maintenance guidance and rapid-response troubleshooting, ensuring your operations remain uninterrupted.
To assist your engineering and procurement teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding our pressure seal non-return valves.
Traditional bolted bonnets rely entirely on the tension of the external studs to maintain a seal, which can stretch or degrade under severe pressure and thermal cycling. Our Pressure Seal Bonnet utilizes the internal pressure of the fluid itself to drive the sealing wedge upward against the gasket. Consequently, as the line pressure increases, the sealing force intensifies exponentially, practically eliminating the risk of high-pressure leaks and reducing ongoing maintenance torque requirements.
Yes. For severe service conditions involving abrasive particulates or flashing steam, we heavily upgrade the internal wear surfaces. The valve seat and the disc guiding areas are hardfaced with Stellite or similar Cobalt-Chromium (CoCr) alloys. This metallurgical enhancement provides an exceptionally hard, smooth surface that resists galling, scratching, and high-velocity erosion, ensuring a tight shutoff over an extended operational lifespan.
The permissible installation orientation depends heavily on the specific internal structure selected. Swing-type and lift-type configurations are generally optimized for horizontal pipelines, utilizing gravity to assist in seating the disc. However, spring-loaded dual plate or specialized piston types can be engineered for both horizontal and vertical upward-flow installations. Please consult our technical team with your piping isometric drawings to ensure the correct structural type is selected for your specific routing.
Absolutely. One of the primary advantages of our design is its in-line serviceability. Once the pipeline is safely depressurized and drained, the top pressure seal mechanism can be dismantled. This top-entry access allows your maintenance technicians to inspect, lap, or replace the internal disc and seating surfaces directly in the field, drastically reducing turnaround times and eliminating the need for heavy pipe cutting or welding.
For applications involving sour gas, such as upstream petroleum extraction, we strictly manufacture the valve in accordance with NACE MR0175 / ISO 15156 standards. This involves rigorous control over the hardness levels of the carbon or alloy steel body (typically keeping it below 22 HRC) and selecting specialized, corrosion-resistant internal trims. Furthermore, all pressure-containing welds undergo extensive post-weld heat treatment (PWHT) to relieve residual stresses that could otherwise lead to sulfide stress cracking.
