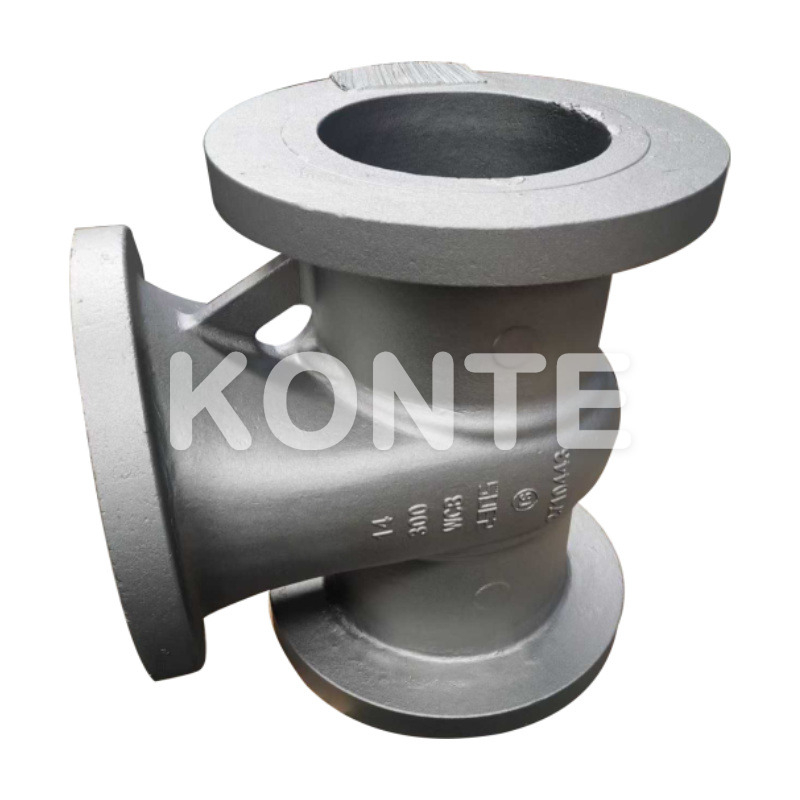

Body of ANSI/API Standard Gate Valve

The Body of ANSI/API Standard Gate Valve stands as the robust, unyielding core of heavy-duty industrial fluid management systems. When you run your hands along the exterior of the valve body, the impeccably smooth, precision-cast surface immediately reflects the advanced metallurgical craftsmanship poured into every single unit. Designed to handle the aggressive roar of high-pressure surges and the silent, relentless assault of highly corrosive media, this valve body ensures your pipeline infrastructure remains impervious to the harshest operational realities. The strategically optimized wall thickness provides a formidable barrier against internal mechanical stress, effectively eliminating the risk of catastrophic blowouts, structural fatigue, and costly facility downtime.

By integrating this meticulously engineered component into your fluid network, you instantly elevate the safety protocols and overall efficiency of your processing plant. The dense, uniform grain structure of the specialized metal translates to a reassuringly solid weight, promising decades of uninterrupted, maintenance-free service. Whether your facility is managing the blistering heat of steam generation, the abrasive flow of raw petrochemicals, or the high-velocity transit of natural gas, this valve body delivers a flawless structural integrity that procurement professionals and field engineers can trust implicitly.

Product Specifications

Key Features & Highlights

Integrating this specialized valve body into your operational infrastructure brings immediate, measurable improvements in system reliability and maintenance cycles. The engineering focus is placed entirely on extending the lifecycle of your pipeline while minimizing the need for reactive repairs.

• Exceptional Structural Integrity: Advanced casting techniques produce a dense, void-free metal matrix capable of withstanding extreme pressure and sudden impact loads over extended periods without deformation.

• Precision Dimensional Accuracy: Utilizing state-of-the-art molds, each valve body achieves exceptionally tight assembly tolerances, ensuring a seamless fit with internal components for reliable, friction-free performance.

• Superior Corrosion Resistance: Manufactured from premium grades such as WCB, CF8, and CF8M, the material composition actively resists degradation from aggressive chemical media, moisture, and saline environments.

• Optimized Fluid Dynamics: The internal cavity is cast with intricate geometries that are virtually impossible to achieve through standard machining, effectively minimizing fluid turbulence and unwanted pressure drops.

• Adaptable Design Architecture: The exterior and interior structures can be tailored to accommodate customer-specific flow markings, proprietary logos, and specialized port configurations for intuitive field operation.

• Thermal Shock Resilience: The robust metallic construction effortlessly endures rapid temperature fluctuations, making it perfectly suited for volatile refining processes and high-output power generation environments.

Standards & Certifications

Navigating the complex landscape of industrial compliance requires components that meet the strictest global criteria. Our valve bodies are engineered from the ground up to eliminate procurement risks by adhering strictly to universally recognized engineering codes.

• API 600 & API 6D Compliance: Ensures the foundational design, dimensions, and testing protocols meet the rigorous, non-negotiable demands of the petroleum and natural gas industries.

• ASME B16.34 Adherence: Guarantees accurate pressure-temperature ratings, precise wall thickness calculations, and strict material requirements for absolute operational safety.

• Global Interchangeability: Standardized dimensions mean these valve bodies can seamlessly replace existing infrastructure components across international facilities without requiring costly pipeline modifications.

• Audit-Ready Traceability: Every casting aligns perfectly with international standards including ASTM, ISO, DIN, and EN, providing complete material transparency and certified documentation for your engineering records.

Materials & Durability

The longevity of your pipeline depends entirely on the metallurgical quality of its core components. We select only the highest-grade raw materials to forge valve bodies that refuse to yield under extreme mechanical stress and chemical exposure.

• Carbon Steel (WCB): Delivers outstanding mechanical strength and toughness, serving as the highly dependable workhorse for high-pressure, non-corrosive industrial flow applications.

• Stainless Steel (CF8/CF8M): Provides an impenetrable defense against oxidation and chemical attacks, essential for maintaining absolute fluid purity in critical processing lines.

• Advanced Alloy Steels: Formulated specifically to combat the dual threats of blistering high temperatures and highly abrasive particulate flows found in severe service environments.

• Optimized Wall Thickness: The strategic distribution of metal mass reinforces known high-stress zones, effectively absorbing pressure surges and preventing structural fatigue over decades of continuous use.

Design & Sealing Performance

A valve body is only as effective as its ability to contain the fluid within. Our design philosophy centers on achieving absolute zero-leakage performance, regardless of external environmental factors or internal pressure spikes.

• Precision Machined Seating: The internal seating areas are meticulously crafted to interface flawlessly with the flexible wedge, creating an impenetrable barrier against fluid migration.

• Bolted Bonnet Architecture: Provides a secure, high-integrity seal between the valve body and the bonnet, allowing for safe disassembly and maintenance while completely preventing fugitive emissions.

• OS&Y (Outside Screw and Yoke) Compatibility: The body structure perfectly accommodates rising stem mechanisms, ensuring the vital stem threads remain isolated from corrosive internal media.

• Thermal Expansion Accommodation: The internal geometry is specifically engineered to prevent the wedge from binding or locking during extreme temperature fluctuations, ensuring smooth actuation at all times.

Specifications & Customization

No two industrial facilities are exactly alike, which is why flexibility in specification is paramount. We offer an extensive matrix of sizes, pressure ratings, and custom modifications to align perfectly with your exact project blueprints.

• Comprehensive Size Range: Available from a compact 2 inches up to a massive 24 inches (DN50 - DN600), with the extensive engineering capacity to cast even larger bespoke diameters upon request.

• Broad Pressure Spectrum: Engineered to perform flawlessly across Class 150LB, 300LB, 600LB, and 900LB ratings, with scalable designs capable of reaching 2500LB for extreme high-pressure networks.

• Versatile End Connections: Choose from Flanged (RF/RTJ) for secure bolting, Threaded for smaller utility lines, or Welded (BW/SW) for permanent, leak-free integration into critical pipelines.

• OEM & ODM Capabilities: Enhance your brand presence and operational clarity by integrating custom cast logos, specific flow direction indicators, and specialized exterior geometries directly into the mold.

Industry Applications

The rugged versatility of our valve bodies makes them the preferred choice across a broad spectrum of demanding heavy industries. They are engineered specifically to solve the complex fluid control challenges inherent to your sector.

• Upstream & Downstream Oil & Gas: Delivers uncompromising isolation capabilities in extraction fields, refineries, and vast distribution networks, safely managing volatile and highly pressurized hydrocarbons.

• Petrochemical Processing: Handles the aggressive nature of complex chemical compounds, ensuring toxic or highly corrosive fluids remain securely contained within the closed system.

• Municipal & Industrial Water Treatment: Provides reliable, long-term flow regulation in desalination plants and wastewater facilities, resisting the corrosive effects of treated water, chemicals, and sludge.

• Power Generation Facilities: Manages the intense thermal dynamics of high-pressure steam and vital cooling water systems, which is absolutely critical for maintaining uninterrupted turbine operation.

• Marine & Offshore Platforms: Built to survive the relentless assault of saltwater spray and harsh atmospheric conditions, guaranteeing operational readiness on remote, isolated ocean rigs.

Operation & Automation

Modern pipeline networks demand seamless integration with advanced, centralized control systems. Our valve bodies are structurally optimized to support both precise manual intervention and sophisticated automated actuation.

• Low Torque Actuation: The precise internal alignment significantly reduces the friction against the gate plate, allowing for smooth, effortless operation via standard manual handwheels or bevel gears.

• Actuator-Ready Top Flange: Designed with a robust mounting pad that facilitates the rapid and secure installation of electric, pneumatic, or hydraulic actuators for remote facility management.

• Vibration Resistance: The heavy-duty casting actively absorbs the mechanical vibrations generated by powerful automated actuators, preventing structural fatigue and ensuring long-term alignment.

• Future-Proof Upgradability: Start with manual operation and effortlessly transition to fully automated control as your facility expands, without ever needing to replace the foundational valve body.

Quality Control & Testing

Trust is earned through rigorous, undeniable verification. Every single valve body must survive a battery of uncompromising tests before it is approved for deployment in your facility, guaranteeing out-of-the-box reliability.

• API 598 Testing Protocols: Each unit undergoes exhaustive inspection and pressure testing, ensuring absolute compliance with the industry's most demanding performance benchmarks.

• Hydrostatic Shell Testing: The valve body is subjected to internal water pressure significantly exceeding its maximum rated capacity to verify the structural integrity of the casting and detect any micro-porosities.

• High and Low-Pressure Sealing Tests: Meticulous evaluations are conducted to confirm that the internal seating surfaces maintain a flawless, zero-leakage barrier under drastically varying pressure conditions.

• Advanced Non-Destructive Examination (NDE): Utilizing radiographic and ultrasonic testing methods to peer deep inside the metal, guaranteeing the internal grain structure is completely free from hidden defects.

Why Choose Us

Selecting the right manufacturing partner is just as critical as selecting the right component. We bring decades of metallurgical expertise and supply chain reliability directly to your procurement process, ensuring your projects succeed.

• Unmatched Manufacturing Capacity: Our state-of-the-art foundry facilities are equipped to handle massive volume requirements, ensuring your large-scale infrastructure projects stay strictly on schedule.

• Direct-from-Source Economics: By eliminating intermediary markups and streamlining production, we provide premium-grade industrial components at highly competitive price points, optimizing your project budget.

• Stringent Material Traceability: We provide comprehensive documentation, including detailed Mill Test Certificates (MTC), ensuring you have complete visibility into the chemical and physical properties of your purchase.

• Dedicated Engineering Support: Our team of technical specialists is always available to assist with complex sizing, material selection, and custom design requirements, acting as an extension of your own engineering department.

• Global Logistics Expertise: We possess the robust infrastructure and experience to securely package and expedite the delivery of heavy industrial valves to any project site worldwide, minimizing costly transit delays.

FAQ

What specific casting methods are utilized to ensure the structural integrity of these valve bodies?

We employ advanced precision investment casting and heavy-duty sand casting techniques, depending entirely on the size and material requirements of the order. These highly controlled processes ensure a dense, uniform metallurgical structure, drastically minimizing the risk of internal voids or porosity. This meticulous approach guarantees the body can effortlessly withstand the severe pressure ratings outlined in ANSI B16.34.

Can the valve body accommodate specialized trim materials for highly corrosive environments?

Absolutely. While the body itself can be cast from robust, corrosion-resistant materials like CF8M stainless steel, the internal seating areas are designed to be fully compatible with a wide range of API 600 trim specifications. This allows for the seamless integration of Stellite or other hardened alloys to combat severe erosion and chemical attack in specialized applications.

How do you verify the dimensional accuracy of the flanged ends for pipeline integration?

Every flanged end is machined using high-precision CNC equipment and subsequently verified using advanced coordinate measuring machines (CMM). We strictly adhere to ASME B16.5 standards for flange dimensions, ensuring perfect pipeline alignment, correct bolt hole spacing, and optimal gasket seating surfaces for a secure, leak-free connection.

Is it possible to upgrade from a manual handwheel to a pneumatic actuator post-installation?

Yes, the architectural design of the valve body and bonnet assembly inherently supports future automation upgrades. The standardized top mounting pad and robust stem interface allow your maintenance teams to safely remove the manual gear and install pneumatic, electric, or hydraulic actuators without disrupting the primary pipeline pressure boundary.

What documentation is provided to confirm the pressure-retaining capabilities of the casting?

Each shipment is accompanied by a comprehensive engineering data package. This includes detailed Mill Test Certificates (MTC) verifying the precise chemical composition and mechanical properties of the heat lot, alongside certified reports of the hydrostatic shell tests conducted in strict accordance with API 598 testing protocols.
