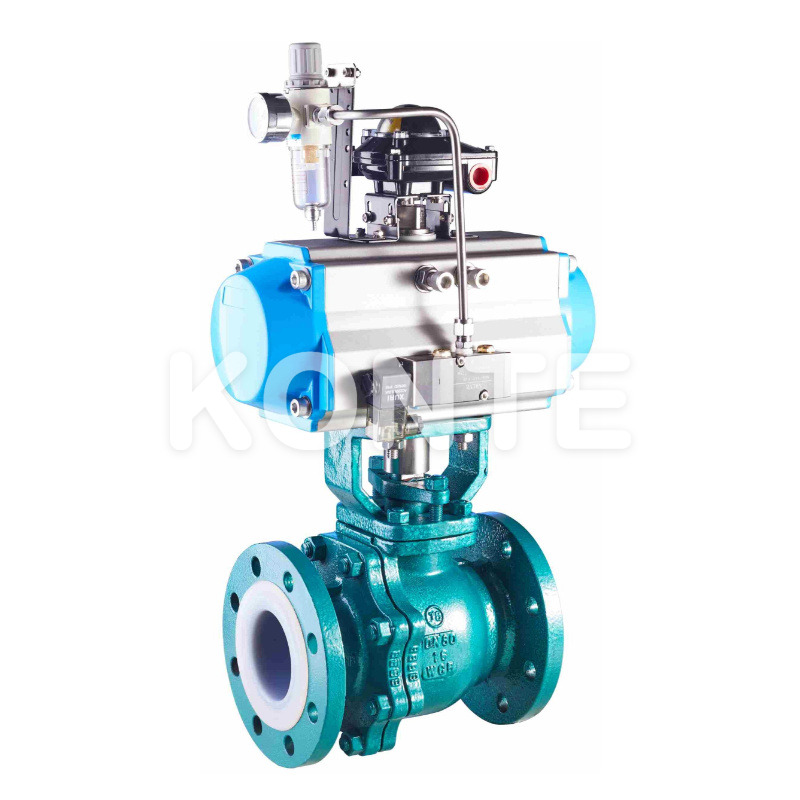

Pneumatic PTFE-Lined Floating Ball Valve

The Pneumatic PTFE-Lined Floating Ball Valve represents the pinnacle of fluid containment engineering, meticulously crafted to conquer the most unforgiving industrial environments. When handling highly aggressive chemicals, operators require more than just basic functionality; they demand absolute certainty. The heavy-duty cast body—available in robust WCB or corrosion-resistant CF8—provides a formidable outer metallic shell, while the flawlessly applied F46 or PFA lining offers a glass-smooth, impenetrable barrier against corrosive attack. Running your fingers along the internal lining reveals a seamless, pore-free finish that actively prevents media buildup and ensures a frictionless mechanical operation. The pneumatic actuation mechanism engages with a reassuring, solid click, translating air pressure into immediate, precise flow control. Every component, from the precisely machined stem to the high-density packing box, works in perfect harmony to eliminate fugitive emissions. By isolating the metallic exterior from destructive organic solvents and harsh alkalis, this valve not only extends the operational lifespan of your piping infrastructure but also drastically reduces maintenance downtime, offering an unparalleled return on investment for large-scale chemical processing facilities.

Product Specification

When sourcing critical pipeline components, precision in technical parameters is non-negotiable. The following specifications detail the exact engineering tolerances, material compositions, and operational thresholds of our lined valves. These metrics ensure seamless integration into your existing infrastructure and guarantee compliance with rigorous industrial safety protocols.

Key Features & Highlights

Engineered to resolve the most persistent challenges in aggressive fluid handling, this valve transforms pipeline reliability. By focusing on structural integrity and seamless automation, it empowers plant operators to achieve uninterrupted, high-efficiency production cycles.

• Impenetrable Internal Armor: The interior of the valve body, ball, stem, and packing box are meticulously lined with premium F46 or PFA. This creates a flawless shield against highly destructive strong acids, potent alkalis, and volatile organic solvents.

• Advanced Floating Ball Dynamics: Utilizing a precision-engineered floating structure combined with resilient fluoropolymer lining, the valve dynamically adjusts to pressure shifts, guaranteeing an exceptionally tight seal and enduring corrosion resistance.

• Seamless Automation Readiness: Integrated with a standardized ISO 5211 mounting pad, the architecture allows for rapid, secure attachment of pneumatic, electric, or hydraulic actuators, facilitating sophisticated automated control systems without structural modifications.

• Optimized Flow Trajectory: The straight-through design minimizes pressure drop and internal turbulence, ensuring high-efficiency fluid transfer while significantly reducing energy consumption across the pumping network.

• Extended Operational Longevity: By substituting expensive exotic metal alloys with high-grade carbon or stainless steel protected by an advanced polymer lining, facilities achieve superior lifecycle performance at a fraction of traditional procurement costs.

Engineering Excellence & Application Value

For industrial procurement specialists and pipeline engineers, evaluating the long-term viability of a flow control asset is critical. Our manufacturing process integrates cutting-edge materials science with uncompromising structural design to deliver tangible operational advantages across diverse industrial landscapes.

Core Materials & Anti-Corrosion

Maximizing the operational lifespan of pipeline assets is a primary directive for chemical processing facilities. Our valves utilize a comprehensive full-lining design covering the body, ball, and stem to ensure maximum durability.

• Uniform lining thickness guarantees an unbroken barrier against the most aggressive corrosive media.

• Exceptional adhesion strength prevents internal delamination, even under rapidly fluctuating thermal conditions.

• Perfectly isolates strong acids, alkalis, and organic solvents from the vulnerable metallic shell.

• Serves as a highly cost-effective, long-lasting alternative to prohibitively expensive special alloy valves.

Sealing Technology & Zero Leakage

In environments handling hazardous or toxic chemicals, there is absolutely zero tolerance for leakage. Our engineering team has perfected a sealing architecture that prioritizes environmental safety and worker protection above all else.

• The floating ball mechanism works in tandem with high-performance FKM, EPDM, or PTFE seat rings for dynamic, self-compensating sealing.

• Maintains a continuous, bubble-tight shutoff even during severe downstream pressure differentials.

• Features a robust anti-blowout stem design to prevent catastrophic mechanical failures under high-pressure surges.

• Strictly adheres to Zero Fugitive Emissions standards, meeting the stringent requirements of ISO 15848.

Automation & Actuation Compatibility

Modernizing plant infrastructure requires components that integrate flawlessly into existing digital control networks. This valve is engineered specifically for rapid, hassle-free automation deployment.

• Standardized ISO 5211 mounting pad eliminates the need for custom fabrication or unstable mounting brackets.

• Supports instantaneous docking with single or double-acting pneumatic, electric, and hydraulic actuators.

• Fully compatible with NAMUR interface solenoid valves, precision limit switches, and smart positioners.

• Enables highly accurate flow modulation and instantaneous on/off sequencing for critical batch processing.

International Standards & Structural Design

Engineering contractors and piping designers require absolute certainty when specifying components for complex global projects. We manufacture to universally recognized dimensional standards to ensure global compatibility.

• Flange connections strictly comply with ANSI, DIN, JIS, and GB specifications for universal fitment.

• Face-to-face structural dimensions are standardized for 100% perfect drop-in replacement in existing lines.

• Eliminates the need for costly, time-consuming pipe modifications during facility upgrades or retrofits.

• Ensures seamless compatibility across diverse international regulatory jurisdictions and engineering codes.

Quality Control & Certifications

Trust is built on verifiable performance data and rigorous testing protocols. As a responsible manufacturer, we subject every single unit to exhaustive quality assurance measures before dispatch.

• 100% factory tested for pressure and sealing integrity in strict accordance with API 598 and GB/T13927 standards.

• Mandatory electrospark detecting on all lined surfaces to guarantee a completely pore-free, pinhole-free finish.

• Backed by comprehensive CE, ISO 9001, SIL 3, and ATEX explosion-proof manufacturing certifications.

• Provides documented assurance of absolute reliability in the most severe and hazardous working conditions.

Industry Applications & Customization

Every processing facility possesses unique operational challenges. Our comprehensive manufacturing capabilities allow us to tailor flow control solutions to specific industrial requirements and fluid profiles.

• Proven track record in demanding sectors including petroleum, petrochemicals, fine chemicals, electric power, and water treatment.

• Extensive OEM and ODM customization capabilities to meet highly specialized project blueprints and schematics.

• Options for specialized flange drilling, customized lining thicknesses, and integrated anti-static devices.

• Supported by rapid manufacturing lead times and an industry-leading warranty that secures your investment.

Why Choose Us

Selecting the right manufacturing partner is just as critical as selecting the right valve. As a dedicated supplier deeply embedded in the industrial fluid control sector, we provide more than just hardware; we deliver end-to-end reliability and supply chain security. Our state-of-the-art production facilities are optimized to handle massive procurement volumes without ever compromising on the microscopic precision required for chemical-grade valves.

• Direct Manufacturer Economics: By streamlining the supply chain and eliminating intermediaries, we offer highly competitive pricing structures that significantly optimize your project procurement budget.

• Uncompromising Material Sourcing: We utilize only virgin, premium-grade fluoropolymers (PTFE, PFA, F46) and certified casting metals, ensuring every batch meets exact metallurgical and chemical resistance standards.

• Rapid Global Fulfillment: Our robust inventory management and agile production lines guarantee accelerated delivery schedules, keeping your critical construction or maintenance turnarounds strictly on time.

• Dedicated Engineering Support: From initial pipeline sizing and material compatibility analysis to post-installation troubleshooting, our technical team provides continuous, expert guidance.

• Sustainable Manufacturing Practices: We employ energy-efficient casting and lining processes that minimize environmental impact while maximizing the durability and lifecycle of the final product.

Frequently Asked Questions (FAQ)

To assist procurement managers and pipeline engineers in their decision-making process, we have compiled detailed answers to the most critical technical inquiries regarding our lined valve solutions.

What is the primary difference between F46 and PFA linings in these valves?

While both are highly resistant fluoropolymers, PFA (Perfluoroalkoxy) offers a slightly higher temperature resistance (up to 150℃) compared to standard F46 (FEP), which is typically rated up to 120℃. PFA also provides superior flex life and mechanical toughness. The choice between the two depends entirely on the specific thermal and abrasive characteristics of your processing media.

How does the floating ball design enhance the sealing performance?

The floating ball structure allows the ball to shift slightly downstream under line pressure, pressing firmly against the downstream seat ring. This dynamic movement creates a self-compensating, pressure-assisted seal. When combined with the resilient properties of our PTFE or PFA linings, it guarantees a bubble-tight shutoff even as pressure conditions fluctuate.

Can this pneumatic valve be integrated into an existing digital control system?

Absolutely. The valve features a standardized ISO 5211 mounting pad, which acts as a universal interface for automation. When paired with a pneumatic actuator, you can easily attach NAMUR-compliant accessories such as smart electro-pneumatic positioners, limit switch boxes, and solenoid valves, allowing for seamless integration into DCS or PLC networks.

What testing procedures are conducted to ensure the lining is flawless?

We implement a mandatory 100% electrospark detection (spark testing) on all lined surfaces. This high-voltage test sweeps the entire interior of the valve body and ball. If there is even a microscopic pinhole, pore, or uneven thickness in the lining, the spark will ground to the metal body, instantly alerting our quality control technicians to reject the component.

Are these valves suitable for vacuum applications?

Standard lined valves are primarily designed for positive pressure applications. In high-vacuum environments, standard linings may risk delamination or collapse due to the negative pressure pulling the polymer away from the metal shell. If your process involves vacuum conditions, please consult our engineering team for specialized vacuum-rated lining techniques, such as mechanical anchoring or specific thickness adjustments.

How do I determine the correct face-to-face dimension for a pipeline retrofit?

Our valves are manufactured in strict accordance with international standards such as ANSI, DIN, JIS, and GB. You simply need to provide the existing pipeline's flange standard and the required structural length. Our standardized manufacturing ensures that the new lined valve will serve as a 100% perfect drop-in replacement, requiring zero modifications to your existing pipework.
